Eaton Crouse-Hinds HGLL5C Grounding Bushing - NEC/CEC

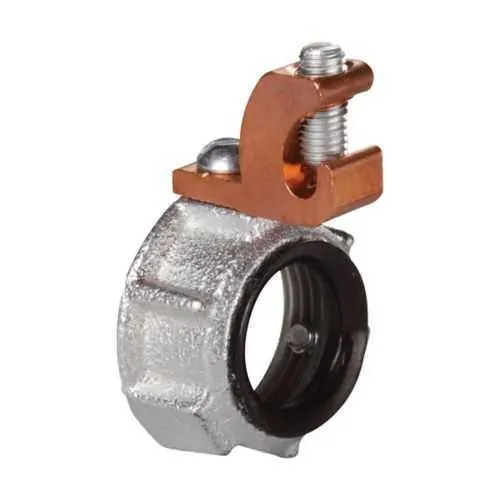

Part Number: HGLL5C
Quick Summary
HGLL5C grounding bushing provides reliable grounding for rigid/IMC conduits in industrial electrical installations. Many facilities struggle with compact, code-compliant grounding options that fit 1-1/2" trade sizes without slowing project timelines. It meets NEC/CEC standards, is rated to 150°C, and uses a copper lug for high-conductivity bonding. Designed for ordinary/non-hazardous locations, it simplifies panel and box installations and reduces wiring complexity. Use cases include control panels, junction boxes, and equipment racks where durable, easy-to-install grounding is essential. The combination of threaded connections and malleable iron construction delivers vibration resistance and long-term reliability in harsh environments.
Product Information
Extended Description
HGLL5C Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLL grounding bushing, Rigid/IMC, Copper lug, #4-14 AWG, Malleable iron, 150°C, Threaded, 1-1/2"
Product Name
Eaton Crouse-Hinds series HGLL grounding bushing
Catalog Number
HGLL5C
UPC
784564113405
Product Length/Depth
2.31 in
Product Height
0.81 in
Product Width
2.31 in
Product Weight
0.23 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Copper
Thread
Threaded
Trade size
1-1/2"
Lug size
#4-14 AWG
Material
Malleable iron
Eaton Crouse-Hinds HGLL5C 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLL5C
Feature: 1-1/2" trade size compatibility → Business Impact: enables seamless integration with common rigid/IMC conduit runs, reducing custom fabrication and field modification. Application: ideal for control panels and equipment housings to accelerate installation time and ensure compliant bonding. Feature: Copper lug capable of handling #4-14 AWG → Business Impact: delivers low impedance paths, improving overall system reliability and fault tolerance. Application: motor starters, switchgear terminations, and power distribution close to the termination point. Feature: Material is malleable iron with threaded connection → Business Impact: provides strong mechanical strength and vibration resistance, extending service life in manufacturing floors and outdoor enclosures. Application: high-vibration machinery and outdoor installations where conduit moves or flexes. Feature: Temperature rating 150°C → Business Impact: supports high-temperature environments and cable insulation ratings without performance loss. Application: nearby heat sources, transformers, or equipment with elevated ambient temperatures. Feature: Area classification Ordinary/Non-Hazardous Locations; NEC/CEC compliance → Business Impact: ensures regulatory alignment and reduces compliance risk in general industrial facilities. Application: facilities spanning automotive, packaging, and process industries. Feature: Copper lug for robust bonding → Business Impact: minimizes corrosion risk and maintains low contact resistance for secure grounding. Application: electrical panels and junction boxes requiring reliable ground connections. Feature: Threaded design for quick field assembly → Business Impact: simplifies installation, lowers labor costs, and minimizes tampering risk. Application: on-site retrofits and new builds where speed matters. Insight: Vendor-supported CAD and spec resources streamline engineering reviews and help maintain design accuracy across multiple projects.
Get a Quick Quote for a Eaton Crouse-Hinds HGLL5C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLL5C?
Enquire Now
FAQs
Install HGLL5C by threading the bushing onto the rigid/IMC conduit until snug, then secure the copper lug to the controlled equipment or panel grounding bus. Use appropriate torque guidelines from Eaton’s specification sheet to ensure a tight, corrosion-resistant bond. Confirm the lug accommodates #4-14 AWG conductors and verify continuity with a ground tester after assembly.
Yes. HGLL5C is designed for a 1-1/2" trade size using a threaded connection and a copper lug rated for #4-14 AWG conductors, compatible with rigid/IMC conduit. This makes it suitable for standard industrial grounding applications where space is constrained yet high reliability is required.
HGLL5C carries NEC/CEC compliance for general electrical installations and is listed for Ordinary/Non-Hazardous Locations. It also aligns with Canadian certification evidence via UL-listed sources and supports high-temperature operation up to 150°C, ensuring safety and performance in standard industrial environments.
This grounding bushing is ideal for control panels, junction boxes, and equipment racks that use rigid/IMC conduit. Its copper lug and 150°C rating support high-temperature environments, while the malleable iron body provides durability in manufacturing floors and exposed installations.
The threaded design and robust materials reduce field labor, inspection time, and maintenance needs. Copper lug bonding minimizes impedance and corrosion risk, improving system reliability and reducing downtime in high-usage facilities, which translates to lower total cost of ownership over the asset lifecycle.
