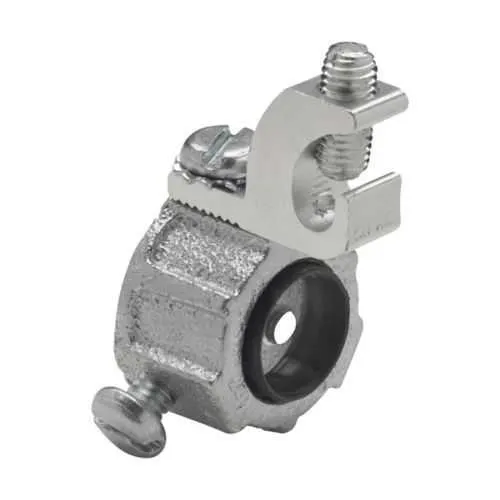

Eaton Crouse-Hinds HGLS1 grounding bushing - 150°C
Part Number: HGLS1
Quick Summary
Eaton Crouse-Hinds HGLS1 grounding bushing is a rugged, threadless fitting designed to bond rigid/IMC conduit in electrical enclosures. Installers often face time-consuming threading and inconsistent ground paths; the HGLS1 streamlines assembly with a secure set-screw connection that eliminates thread-related delays. It complies with NEC/CEC standards and features UL certifications for Canada, plus a 150°C temperature rating for demanding environments. This grounding solution delivers reliable performance in ordinary/non-hazardous locations, while keeping weight down thanks to an aluminum lug and malleable iron body. For panel builders and system integrators, it offers straightforward installation, robust grounding, and proven long-term reliability in industrial control panels and switchgear housings.
Product Information
Extended Description
HGLS1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLS grounding bushing, Rigid/IMC, Aluminum lug, #4-14 AWG, Malleable iron, 150°C, Threadless, 1/2", Set screw
Product Name
Eaton Crouse-Hinds series HGLS grounding bushing
Catalog Number
HGLS1
UPC
784564113757
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.08 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Aluminum
Thread
Threadless
Trade size
1/2"
Lug size
#4-14 AWG
Material
Malleable iron
Type
Set screw
Eaton Crouse-Hinds HGLS1 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLS1
Feature: Threadless design eliminates threaded hardware, enabling faster, tool-light installations and fewer torque-related grounding issues. Business Impact: Reduces installation time and labor costs while maintaining a secure ground path in rigid/IMC systems. Application: Ideal for panel drops and enclosure work where quick, reliable grounding is critical. Feature: Aluminum lug paired with a malleable iron body delivers strength with reduced weight. Business Impact: Easier handling during field installs and lower overall equipment weight in confined spaces. Application: Durable in control panels and electrical cabinets where weight matters. Feature: Lug size #4-14 AWG and trade size 1/2" with a set screw. Business Impact: Broad compatibility with common conductor sizes, ensuring a solid, repeatable ground connection. Application: Suitable for a wide range of industrial wiring harnesses and conduit fittings. Feature: Temperature rating of 150°C. Business Impact: Withstands high-temperature environments typical in motor controls and automation panels, reducing risk of insulation damage. Application: High-heat enclosures and motor starter panels. Feature: Material combination malleable iron housing and aluminum lug. Business Impact: Enhanced durability against mechanical stress and corrosion resistance in non-hazardous locations. Application: Rigid/IMC conduit installations in manufacturing floors and assembly lines. Feature: NEC/CEC compliance and UL Canada certifications. Business Impact: Simplifies regulatory approvals and supports cross-border projects, reducing compliance risk. Application: Global manufacturing facilities and multi-site installations. Industry context: The HGLS1 is well-suited for grounding bushings in industrial automation environments where quick, compliant, and maintainable grounding solutions are required. Long-tail keywords embedded include grounding bushing for rigid IMC conduit, set-screw grounding bushing, aluminum lug grounding, 1/2-inch trade size grounding fitting, and NEC/CEC-compliant grounding hardware.
Get a Quick Quote for a Eaton Crouse-Hinds HGLS1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLS1?
Enquire Now
FAQs
Yes. HGLS1 is specifically designed for 1/2 inch trade size rigid/IMC conduits and uses a set screw with an aluminum lug to establish a secure ground. Its threadless design reduces installation steps and simplifies field wiring in panels and enclosures, saving time without compromising grounding integrity.
Key specs include a 1/2 inch trade size, lug material aluminum, lug size #4-14 AWG, body material malleable iron, threadless connection, and a 150°C temperature rating. It is designed for rigid/IMC conduit and is suitable for ordinary/non-hazardous locations under NEC/CEC standards.
HGLS1 is specified for ordinary/non-hazardous locations. For installations in hazardous or classified areas, verify project requirements and consult applicable standards or manufacturer guidance to determine the appropriate grounding bushings and enclosure protection.
HGLS1 carries NEC/CEC standards compliance and UL Canada certification. These certifications support cross-border electrical installations and provide confidence in safety and performance for panel and enclosure grounding in commercial and industrial settings.
By eliminating threads, HGLS1 reduces installation time and labor costs while delivering a reliable ground path. The lighter aluminum lug and robust malleable iron body improve handling and durability, contributing to lower maintenance needs and a favorable total cost of ownership in automation projects.
