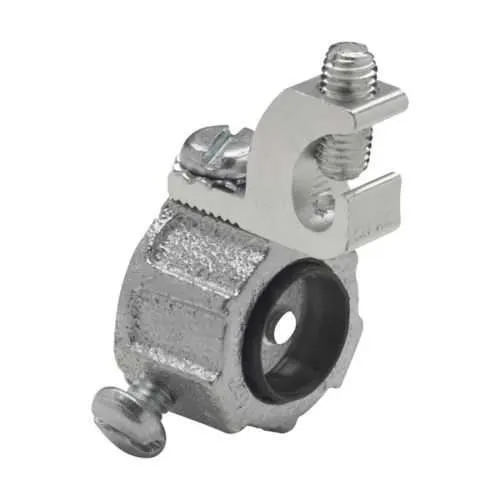

Eaton HGLS10 grounding bushing - 150°C, Threadless, NEC/CEC
Part Number: HGLS10
Quick Summary
Grounding bushing HGLS10 from Eaton Crouse-Hinds provides a reliable ground path for rigid/IMC conduit. In field installs, mismatched lug materials or threaded connections can complicate torque specifications and compromise grounding integrity. This part carries NEC/CEC compliance and UL Canada certifications, with an ordinary/non-hazardous area rating that aligns with typical plant environments. With a 4 inch trade size and #3/0-6 AWG lug capacity, aluminum lug, and a threadless, set-screw design, it delivers a cost-effective, reliable solution for panel and enclosure grounding. The 150°C temperature rating supports use in moderate-high temperature spaces, reducing the need for additional accessories.
Product Information
Extended Description
HGLS10 Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLS grounding bushing, Rigid/IMC, Aluminum lug, #3/0-6 AWG, Malleable iron, 150°C, Threadless, 4", Set screw
Product Name
Eaton Crouse-Hinds series HGLS grounding bushing
Catalog Number
HGLS10
UPC
784564113924
Product Length/Depth
5.06 in
Product Height
1.13 in
Product Width
5.06 in
Product Weight
0.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Aluminum
Thread
Threadless
Trade size
4"
Lug size
#3/0-6 AWG
Material
Malleable iron
Type
Set screw
Eaton Crouse-Hinds HGLS10 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLS10
Feature: Conduit compatibility with rigid/IMC is designed to provide a secure, code-compliant ground path. Business Impact: Reduces installation steps and minimizes rework when wiring in enclosures, saving labor and improving reliability. Application: Use in control panels and industrial enclosures where rigid or IMC conduit is standard. Feature: Malleable iron body with an aluminum lug offers strength without excessive weight. Business Impact: Improves handling during install while lowering overall system weight and installation effort. Application: Suitable for durable, high-temperature environments in manufacturing lines. Feature: Threadless design with set-screw fastening simplifies alignment and reduces cross-threading risk. Business Impact: Speeds up field retrofits and ensures repeatable connections with less maintenance. Application: Ideal for retrofit projects and new builds in tight spaces. Feature: 4" trade size and #3/0-6 AWG lug capacity provide broad conductor compatibility. Business Impact: Enables one-part grounding for a wide range of feeders and cables, reducing inventory needs. Application: Common in motor feeders and panel grounding networks. Feature: NEC/CEC compliance and ordinary/non-hazardous location rating support regulatory adherence. Business Impact: Mitigates compliance risk and streamlines procurement for non-hazardous environments. Application: Standard installation across commercial and light-industrial facilities. Feature: 150°C temperature rating extends usability in hotter areas without extra components. Business Impact: Reduces the need for derating or alternative accessories. Application: Plant floors, machine spaces, and equipment rooms with elevated ambient temperatures.
Get a Quick Quote for a Eaton Crouse-Hinds HGLS10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLS10?
Enquire Now
FAQs
The HGLS10 is designed for rigid/IMC conduit as a grounding path. Its threadless, set-screw design simplifies alignment and secure fastening, reducing installation time and the risk of damage to conduit threads. This makes it a reliable choice for panel boards, enclosures, and equipment spaces where rigid or IMC conduit is standard.
The lug capacity of the HGLS10 supports #3/0-6 AWG conductors, providing a wide range of compatibility for feeder and grounding conductors. The aluminum lug combined with a malleable iron body offers a robust, lightweight connection suitable for typical non-hazardous industrial installations.
Yes. The HGLS10 carries a 150°C temperature rating, allowing use in elevated temperature spaces without additional accessories or derating. This rating, along with its rigid/IMC compatibility, makes it suitable for motor control centers, switchgear, and other hot ambient installations.
The HGLS10 complies with NEC/CEC standards and is UL-listed with Canadian certifications for grounding equipment. It is designed for ordinary/non-hazardous locations, supporting regulatory compliance in typical commercial and industrial facilities without special enclosure or location modifications.
The threadless design eliminates the need to chase and tap threads, reducing installation time and potential cross-threading issues. Combined with a set-screw fastening, it provides repeatable, secure connections even in tight spaces, simplifies retrofits, and minimizes maintenance in ongoing operations.
