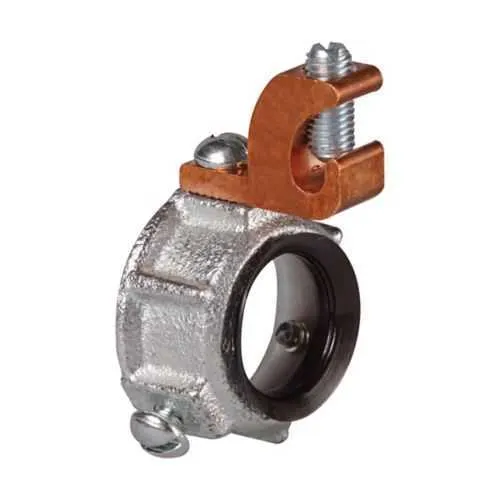

Eaton HGLS10C Grounding Bushing - Threadless, 150°C NEC/CEC
Part Number: HGLS10C
Quick Summary
The HGLS10C grounding bushing provides a secure copper-lug connection for rigid/IMC conduit in control panels. Installers often face threadless designs and cramped spaces that complicate grounding effectiveness. This model carries NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations with a 150°C temperature rating, and UL Canada certification is documented in downloadable reports. By combining a durable malleable iron body with a copper lug for #3/0-6 AWG conductors, it delivers reliable grounding that reduces maintenance and procurement risk, making it a value-add for panel builders and integrators.
Product Information
Extended Description
HGLS10C Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLS grounding bushing, Rigid/IMC, Copper lug, #3/0-6 AWG, Malleable iron, 150°C, Threadless, 4", Set screw
Product Name
Eaton Crouse-Hinds series HGLS grounding bushing
Catalog Number
HGLS10C
UPC
784564114181
Product Length/Depth
5.06 in
Product Height
1.13 in
Product Width
5.06 in
Product Weight
1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Copper
Thread
Threadless
Trade size
4"
Lug size
#3/0-6 AWG
Material
Malleable iron
Type
Set screw
Eaton Crouse-Hinds HGLS10C 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLS10C
Feature: Copper lug and lug size #3/0-6 AWG → Business Impact: Ensures low-resistance, high-conductivity connections for large control-panel conductors; Application: Panels and enclosures requiring robust grounding. Feature: Malleable iron body → Business Impact: Provides strong mechanical stability and durability in industrial environments; Application: Harsh manufacturing floors and outdoor installations. Feature: 150°C temperature rating → Business Impact: Maintains grounding integrity in high-heat zones and equipment cabinets; Application: High-temperature process areas and equipment rooms. Feature: Threadless design with set screws → Business Impact: Simplifies alignment and reduces installation time in tight spaces; Application: Tight-panel terminations and compact feeders. Feature: Rigid/IMC conduit compatibility → Business Impact: Streamlines sourcing with a single family of fittings; Application: Rigid/IMC conduit systems in machine rooms and control panels. Feature: Certified for NEC/CEC and UL Canada listings → Business Impact: Ensures regulatory compliance across North American installations; Application: Industrial automation projects with strict compliance needs. Feature: 4" trade size and weight 1 lb → Business Impact: Predictable fit and manageable handling during field installs; Application: Standardized panel assemblies and upgrade projects.
Get a Quick Quote for a Eaton Crouse-Hinds HGLS10C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLS10C?
Enquire Now
FAQs
Install by positioning the conduit into the 4" trade-size body, align the copper lug with the conductor, and secure with the set screws. Ensure clean contact between lug and conductor, then tighten to the recommended torque per conductors size as per site standards. The threadless design simplifies alignment in tight spaces and reduces rework during panel assembly.
The HGLS10C supports a copper lug for #3/0-6 AWG conductors, enabling robust, low-resistance grounding connections for large feeders and switchgear in industrial panels.
Yes. The unit is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it appropriate for general-purpose grounding in typical industrial environments.
It carries NEC/CEC compliance and UL Canada certification for Rigid-IMC grounding bushings, with additional documentation available via downloadable reports and spec sheets from Eaton.
Durable malleable iron construction paired with a copper lug provides long-term grounding reliability, reducing corrosion-related maintenance. The threadless, set-screw design accelerates installation, lowers field labor time, and minimizes rework in panel upgrades.
