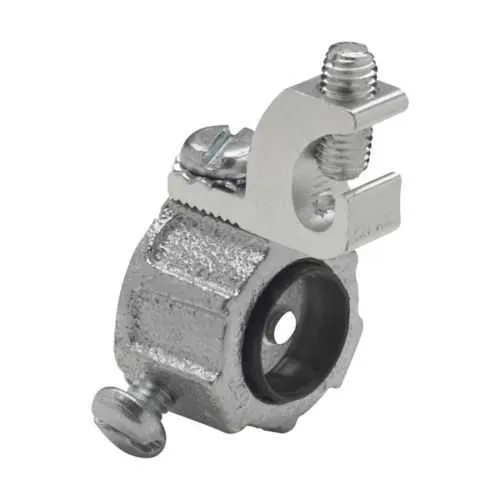

Eaton Crouse-Hinds HGLS2 Grounding Bushing - NEC/CEC
Part Number: HGLS2
Quick Summary
The HGLS2 grounding bushing from Eaton Crouse-Hinds is designed for rigid/IMC conduit installations, delivering reliable grounding with a compact, set-screw lug. When field installs are challenged by space restrictions or bulky hardware, this threadless design streamlines assembly and reduces downtime. It carries NEC/CEC compliance with additional UL certification support for Canadian and US applications in ordinary/non-hazardous locations, giving projects a clearer path to compliance without extra parts. By combining an aluminum lug, malleable iron body, and a 150°C rating, the HGLS2 delivers robust performance in demanding environments while offering fast installation and consistent electrical continuity across 3/4" conduit runs. This translates to safer panels, predictable grounding, and lower total installed cost.
Product Information
Extended Description
HGLS2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLS grounding bushing, Rigid/IMC, Aluminum lug, #4-14 AWG, Malleable iron, 150°C, Threadless, 3/4", Set screw
Product Name
Eaton Crouse-Hinds series HGLS grounding bushing
Catalog Number
HGLS2
UPC
784564113764
Product Length/Depth
2.25 in
Product Height
1.5 in
Product Width
0.75 in
Product Weight
0.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Aluminum
Thread
Threadless
Trade size
3/4"
Lug size
#4-14 AWG
Material
Malleable iron
Type
Set screw
Eaton Crouse-Hinds HGLS2 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC UL certification
Grounding Bushings - Rigid-IMC UL certification
Eaton Specification Sheet - HGLS2
Feature: Threadless, set-screw grounding lug on a 3/4" trade size bushing. Business Impact: Simplifies installation in tight spaces and reduces installer effort while maintaining solid grounding. Application: Ideal for 3/4" rigid/IMC conduit in control panels and enclosures. Feature: Aluminum lug paired with a malleable iron body. Business Impact: Combines lightweight handling with mechanical strength and corrosion resistance, lowering maintenance needs over the asset life. Application: Outdoor or humid environments where corrosion resistance matters. Feature: 150°C temperature rating. Business Impact: Maintains grounding integrity in high-temperature electrical environments, reducing failure risk and rework. Application: Industrial panels near heat sources or processes with elevated temperatures. Feature: NEC/CEC compliance with UL certification references. Business Impact: Streamlines regulatory approvals and supplier qualification, decreasing project risk. Application: Suitable for Ordinary/Non-Hazardous locations across US and Canada. Feature: Threadless, set screw design. Business Impact: Faster field assembly and fewer potential leakage points, improving install time and reliability. Application: Any rigid/IMC installation needing robust, quick-connect grounding without threading. Feature: Compact weight (0.1 lb) and 2.25 in length, 1.5 in height, 0.75 in width. Business Impact: Reduces overall switchgear and panel footprint while preserving performance. Application: Space-constrained control panels and compact conduit zones.
Get a Quick Quote for a Eaton Crouse-Hinds HGLS2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLS2?
Enquire Now
FAQs
The HGLS2 installs by placing the body around the rigid/IMC conduit and securing the aluminum lug with the set screws. Since it is threadless, you don’t need to pre-tap or cut threads in the conduit, which speeds up field routing. Verify the lug accepts #4-14 AWG conductors, tighten to recommended torque, and confirm solid metal-to-metal contact for reliable grounding.
The HGLS2 is specifically designed for 3/4" trade size rigid/IMC conduit with a threadless lug and a malleable iron body. The aluminum lug accepts #4-14 AWG conductors, delivering a low-resistance path and stable mechanical connection across typical industrial temperatures up to 150°C, minimizing voltage drop and grounding impedance.
The HGLS2 is intended for ordinary/non-hazardous locations requiring dependable grounding in rigid/IMC conduit frameworks. It aligns with NEC/CEC standards and UL certification references, making it suitable for control panels, switchgear enclosures, and motor-control centers where space constraints and fast installation matter.
HGLS2 supports NEC/CEC standards with UL certification references available for Rigid-IMC grounding bushings. Its area classification is Ordinary/Non-Hazardous Locations, ensuring suitability for standard industrial environments while simplifying supplier qualification and regulatory reviews.
The threadless, set-screw design reduces installation time and parts count, lowering labor costs and inventory needs. The aluminum lug and malleable iron body offer durable grounding with corrosion resistance, reducing maintenance cycles and rework while maintaining reliable performance in high-temperature industrial settings.
