Eaton Crouse-Hinds HGLS3C Grounding Bushing - NEC/CEC
Part Number: HGLS3C
Quick Summary
The Eaton Crouse-Hinds HGLS3C grounding bushing provides a robust grounding connection for rigid/IMC conduit in control panels, enclosures, and industrial equipment. Installation challenges like misalignment and unreliable grounds are common; this threadless, set-screw design reduces rework and ensures a secure copper-lug termination even in tight spaces. It is designed to meet NEC/CEC standards and is suitable for ordinary/non-hazardous locations, with a 150°C rating that supports demanding environments. The product’s copper lug and malleable-iron body deliver durable performance, while its 1" trade size aligns with standard conduit configurations. For manufacturers seeking compliant, reliable grounding in high-temperature applications, this bushing provides clear value and straightforward installation.
Product Information
Extended Description

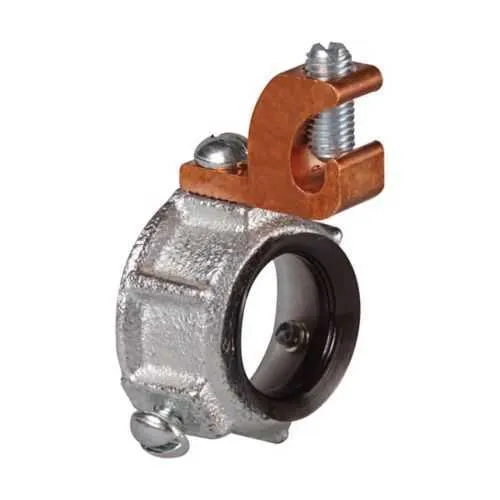

HGLS3C Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLS grounding bushing, Rigid/IMC, Copper lug, #4-14 AWG, Malleable iron, 150°C, Threadless, 1", Set screw
Product Name
Eaton Crouse-Hinds series HGLS grounding bushing
Catalog Number
HGLS3C
UPC
784564114037
Product Length/Depth
2.5 in
Product Height
1.5 in
Product Width
0.75 in
Product Weight
0.16 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Copper
Thread
Threadless
Trade size
1"
Lug size
#4-14 AWG
Material
Malleable iron
Type
Set screw
Eaton Crouse-Hinds HGLS3C 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLS3C
Feature: Threadless, set-screw grounding bushing. Business Impact: Faster, error-free installation with fewer tool changes and reduced risk of cross-threading; helps maintain conductor integrity under vibration. Application: Ideal for 1" rigid/IMC conduit runs in control panels and outdoor enclosures. Feature: Copper lug construction. Business Impact: Superior electrical conductivity and long-term grounding reliability, reducing maintenance cycles and rework. Application: Directly supports #4-14 AWG conductors in high-temperature environments. Feature: Malleable iron body. Business Impact: Enhanced mechanical robustness and impact resistance in harsh industrial settings, lowering lifecycle costs. Application: Suitable for heavy-duty enclosures and machinery installations. Feature: 150°C temperature rating. Business Impact: Maintains grounding integrity in elevated-heat areas such as transformers, motor drives, and power distribution panels. Application: Enclosures with high ambient or heat-generating equipment. Feature: 1" trade size with rigid/IMC conduit compatibility. Business Impact: Standardized fit within common electrical layouts, enabling scalable deployment across projects. Application: New-build and retrofit projects in manufacturing facilities. Feature: NEC/CEC compliance and ordinary/non-hazardous location suitability. Business Impact: Regulatory alignment reduces compliance risk and expedites approvals, supporting safer, code-compliant installations. Application: Military-grade or industrial installations following NEC/CEC, in non-hazardous zones.
