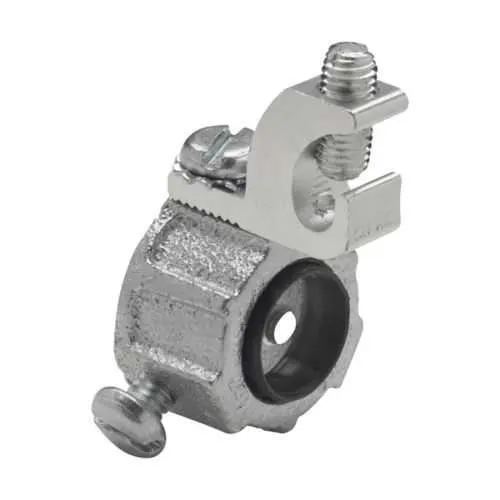

Eaton Crouse-Hinds HGLS6 Grounding Bushing - 150°C
Part Number: HGLS6
Quick Summary
HGLS6 grounding bushing from Eaton Crouse-Hinds provides a reliable grounding connection for rigid/IMC conduit in industrial installations. Installers often wrestle with alignment, vibration, and corrosion resistance in compact panels, leading to intermittent grounding and increased maintenance. It complies with NEC/CEC standards and carries UL Canadian certifications, with an Ordinary/Non-Hazardous Locations rating to support safe operation in typical plant environments. The combination of a malleable iron body, threadless design, and a set-screw fixation simplifies field installation, reduces torque risk, and ensures a durable, vibration-resistant connection. Aluminum lug supports #4-14 AWG conductors in a 2" trade-size fitting, while a 150°C rating keeps performance stable in demanding industrial spaces.
Product Information
Extended Description
HGLS6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLS grounding bushing, Rigid/IMC, Aluminum lug, #4-14 AWG, Malleable iron, 150°C, Threadless, 2", Set screw
Product Name
Eaton Crouse-Hinds series HGLS grounding bushing
Catalog Number
HGLS6
UPC
784564113825
Product Length/Depth
2.75 in
Product Height
0.88 in
Product Width
2.75 in
Product Weight
0.24 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Aluminum
Thread
Threadless
Trade size
2"
Lug size
#4-14 AWG
Material
Malleable iron
Type
Set screw
Eaton Crouse-Hinds HGLS6 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLS6
Feature: Threadless body with a set-screw fastener simplifies alignment and installation, reducing cross-threading risk and accelerating panel work. Business Impact: Faster installs translate to lower labor costs and fewer reworks, especially in cramped electrical rooms. Application: Ideal for control panels and equipment enclosures using rigid/IMC conduit. Feature: Aluminum lug paired with a 2" trade size and #4-14 AWG capacity provides a lightweight yet capable grounding path. Business Impact: Easier handling, corrosion resistance, and reliable conductor termination. Application: Suitable for feeders and branch circuits in industrial gear. Feature: Malleable iron body delivers robust mechanical strength against vibration and impact. Business Impact: Extended service life in harsh environments reduces maintenance frequency. Application: Factory floors, conveyors, and outdoor installations. Feature: 150°C temperature rating enables operation in high-heat zones without derating. Business Impact: Maintains grounding integrity in near heat sources, reducing system downtime. Application: Near motors, furnaces, and engineered equipment spaces. Feature: Rigid/IMC conduit compatibility with a threadless design lowers installation complexity. Business Impact: Eliminates need for threading adapters and improves field versatility. Application: New builds and retrofit projects in NA facilities. Feature: NEC/CEC compliance and UL Canadian certification provide regulatory confidence. Business Impact: Helps meet code obligations and streamlines procurement workflows. Application: Commercial and industrial facilities with code-driven sourcing needs.
Get a Quick Quote for a Eaton Crouse-Hinds HGLS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLS6?
Enquire Now
FAQs
The HGLS6 supports rigid/IMC conduit with a 2" trade size and is designed for aluminum lugs handling #4–14 AWG conductors. The combination provides a compact, code-ready grounding solution for standard industrial feeders and control circuits in NA facilities.
The HGLS6 complies with NEC/CEC standards and carries UL Canadian certification for grounded equipment. It is rated for Ordinary/Non-Hazardous Locations, supporting safe operation in typical manufacturing and facility environments.
The threadless body removes the need to align threaded connections, reducing cross-threading risk and installation time. The set-screw fixation provides a secure termination once the conductor is clamped, which is especially beneficial in tight panels or when accessibility is limited.
Yes. The HGLS6 carries a 150°C temperature rating, allowing reliable grounding performance in spaces with elevated temperatures near equipment or heat sources, provided the location remains Ordinary/Non-Hazardous per NEC/CEC guidance.
Periodically verify the set-screw torque and inspect for any corrosion or deformation in the malleable iron body and aluminum lug. Ensure the #4–14 AWG conductors remain securely terminated and that the 2" trade-size fits the conduit without gaps or movement to preserve grounding integrity.
