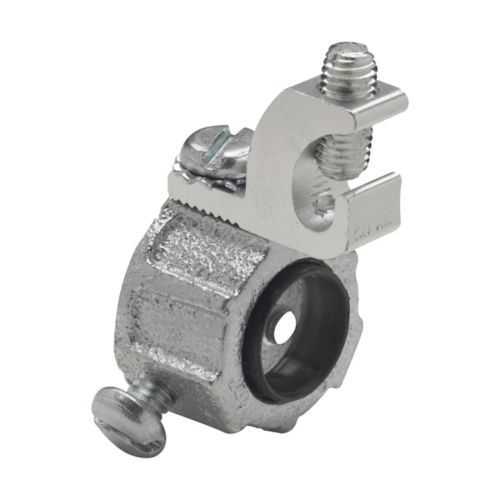

Eaton HGLS7 grounding bushing - 150°C NEC/CEC
Part Number: HGLS7
Quick Summary
Eaton HGLS7 grounding bushing is a rugged solution for reliably grounding rigid/IMC conduit in industrial installations. It addresses the pain of inconsistent grounding and compatibility gaps that slow commissioning and increase safety risk. The part complies with NEC/CEC standards and is documented with Canadian certification listings, backed by a 150°C temperature rating for harsh environments. For engineers and procurement teams, its aluminum lug, threadless design, and set-screw type simplify field installation while maintaining robust electrical continuity. The HGLS7 supports a 2-1/2 inch trade size with a #1/0-8 AWG lug, delivering predictable performance across modular panel builds and OEM applications. This combination translates to faster projects, lower insulation wear, and better system reliability.
Product Information
Extended Description
HGLS7 Eaton Crouse-Hinds: Eaton Crouse-Hinds series HGLS grounding bushing, Rigid/IMC, Aluminum lug, #1/0-8 AWG, Malleable iron, 150°C, Threadless, 2-1/2", Set screw
Product Name
Eaton Crouse-Hinds series HGLS grounding bushing
Catalog Number
HGLS7
UPC
784564113849
Product Weight
0.49 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Temperature rating
150°C
Lug material
Aluminum
Thread
Threadless
Trade size
2-1/2"
Lug size
#1/0-8 AWG
Material
Malleable iron
Type
Set screw
Eaton Crouse-Hinds HGLS7 3D drawing
Crouse-Hinds series Grounding Bushings - Rigid-IMC catalog page
Grounding Bushings - Rigid-IMC Canadian certification
Grounding Bushings - Rigid-IMC Canadian certification
Eaton Specification Sheet - HGLS7
Feature: Threadless design simplifies assembly and reduces misalignment risk during conduit mating. Business Impact: Faster installation cycles and fewer rework events in busy panels or tight spaces. Application: Field installs on rigid/IMC conduit in industrial facilities. Feature: Aluminum lug rated for 2-1/2 inch trade size and #1/0-8 AWG capacity. Business Impact: Lighter weight, easier handling, robust grounding connection with corrosion resistance, lowering fatigue over long service life. Application: Power distribution panels and equipment enclosures in manufacturing lines. Feature: Malleable iron housing with a 150°C temperature rating. Business Impact: Enhanced durability in hot-running environments, improving uptime and safety compliance. Application: Electrical rooms near heat sources and machinery on the plant floor. Feature: Set screw grounding type with threadless body. Business Impact: Reliable continuity without threaded faults, enabling quick maintenance checks and repeatable torque performance. Application: High-volume installations where consistent torque and grounding integrity matter. Feature: NEC/CEC compliance and Canadian certification documentation. Business Impact: Reduces approval time with code-compliant components, streamlining procurement and installation workflows. Application: Multinational projects requiring cross-border compliance and standardization.
Get a Quick Quote for a Eaton Crouse-Hinds HGLS7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HGLS7?
Enquire Now
FAQs
To install HGLS7, insert the rigid/IMC conduit into the bushing, align the aluminum lug with the conductor, and secure using the set screw. The threadless body reduces alignment issues during assembly, speeding up installation in control panels and equipment housings while maintaining a solid ground path.
Key specs include a 2-1/2 inch trade size, lug capacity #1/0-8 AWG, aluminum lug material, malleable iron body, threadless design, 150°C temperature rating, and a set screw configuration. It is designed for rigid/IMC conduit and ordinary/non-hazardous locations under NEC/CEC standards.
Yes. HGLS7 is designed to meet NEC/CEC standards and is documented with Canadian certification listings. This makes it suitable for cross-border projects and facilities that require UL-listed documentation for Canada, ensuring code compliance and smoother approvals.
The threadless design and set screw approach reduce alignment and fastening steps, cutting installation time on average in field runs. This translates to faster commissioning, fewer rework cycles, and improved project velocity in panel builds and equipment installations.
With a malleable iron body and aluminum lug, the HGLS7 offers robust durability and corrosion resistance in typical industrial environments. Regular visual inspections for grounding continuity and torque checks on the set screw are advised, especially in high-temperature zones, to maintain optimal performance and safety.
