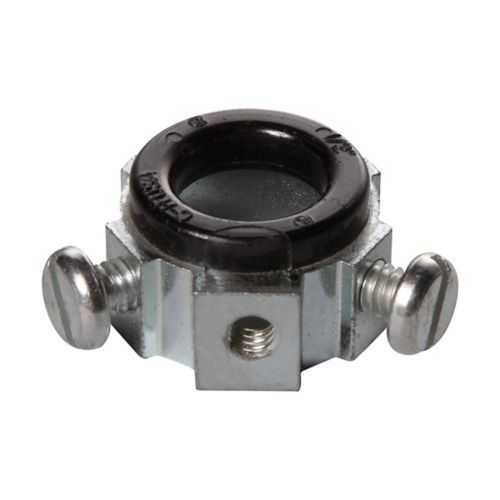

Eaton Crouse-Hinds HS1036 throat bushing - UL Certified
Part Number: HS1036
Quick Summary
HS1036 throat bushing is a rugged conduit accessory designed for rigid/IMC installations, delivering dependable insulation and a secure set-screw connection in electrical enclosures. The goal is to reduce panel downtime caused by ill-fitting or underperforming bushings during maintenance or upgrades. This part leverages UL certification for rigid/IMC, NEC/CEC compliance, and suitability for Ordinary/Non-Hazardous Locations, giving you strong code conformance. In practice, it supports faster, mistake-free assemblies while enhancing heat resistance and electrical isolation. For procurement teams and engineers, HS1036 combines reliable performance with straightforward installability, closely aligning with cost-friendly maintenance programs and standardized conduit systems.
Product Information
Extended Description
HS1036 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, Set screw, 150°C, Threadless, 2"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
HS1036
UPC
784564113665
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.26 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Style
Set screw
Insulator
Insulated
Thread
Threadless
Trade size
2"
Material
Malleable iron
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Eaton Specification Sheet - HS1036
Feature: Insulated, malleable iron throat bushing provides durable mechanical support and electrical isolation. Benefit: Reduces heat-related wear and improves enclosure integrity, leading to lower maintenance costs and longer service life in demanding environments. Application: Ideal for control panels and machine housings in Rigid/IMC conduit runs where insulation and protection are critical. Feature: Threadless design with set screw option enables a clean, quick fit without complex threading. Benefit: Speeds up installation, minimizes cross-thread damage, and simplifies field replacements, lowering labor time and risk of error. Application: Suitable for retrofit projects and new builds in tight panel spaces where install speed matters. Feature: 150°C temperature rating and insulated construction. Benefit: Maintains performance in hot machinery environments and reduces thermal transfer into sensitive components, supporting reliability and safety. Application: Industrial automation gear, power distribution panels, and harsh-duty enclosures. Feature: Certification alignment NEC/CEC and UL for rigid/IMC, plus Ordinary/Non-Hazardous Locations. Benefit: Ensures regulatory approval and safer, code-compliant installations across North America, easing design verification and audits. Application: Compliance-focused projects in manufacturing and processing facilities. Feature: 2" trade size and compatibility with Crouse-Hinds rigid/IMC fittings. Benefit: Streamlines part selection and mating with existing conduit systems, reducing inventory complexity and integration risk. Application: Standardized conduit networks in industrial facilities and new equipment builds.
Get a Quick Quote for a Eaton Crouse-Hinds HS1036
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HS1036?
Enquire Now
FAQs
For HS1036, first verify clean, deburred conduit ends and align with the rigid/IMC run. Insert the 2" trade-size bushing, use the set screws to secure the bushing against the enclosure wall, and confirm insulation is intact around the conduit. Avoid over-tightening to prevent damage to the insulating material, and re-check alignment after panel closure.
Yes. HS1036 is listed for NEC/CEC standards and UL-certified for Rigid/IMC conduit. It is classified for Ordinary/Non-Hazardous Locations, making it suitable for standard industrial environments while delivering compliant electrical isolation and mechanical protection.
HS1036 is ideal for control panels, machine enclosures, and power-distribution boxes where rigid/IMC conduit runs require insulation and a secure, leak-free connection. Its 2" trade size and insulating design make it a strong fit for new builds and retrofit projects in manufacturing, packaging, and process industries.
Ensure mating with rigid/IMC fittings designed for 2" trade size and the same insulation class. The threadless design with set screws is intended for straightforward pairing with compatible bushings and covers, reducing misalignment risk and ensuring a snug, code-compliant fit within existing conduit networks.
HS1036 offers durable insulation and robust mechanical support, reducing heat-related wear and downtime. The UL/NEC/CEC certifications simplify approvals, while the fast, tool-friendly installation lowers labor costs. Over time, this translates to lower spare parts usage, quicker maintenance cycles, and improved overall equipment reliability.
