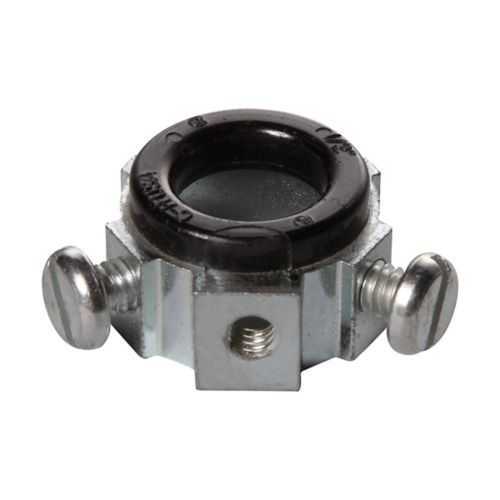

Eaton Crouse-Hinds HS1038 Throat Bushing - 150°C
Part Number: HS1038
Quick Summary
The HS1038 throat bushing from Eaton Crouse-Hinds protects and insulates rigid/IMC conduits in industrial electrical installations. Installers often face compatibility gaps, insulation failures, and heat tolerance limits that slow projects or cause rework in harsh environments. With UL certification for rigid-IMC fittings and NEC/CEC compliance, plus a 150°C insulation rating for ordinary/non-hazardous locations, this part meets critical safety and performance standards. The design combines a set-screw, threadless body with insulated malleable iron for quick, secure installs, while the 3-inch trade size supports common field needs. This translates to reduced downtime, fewer spare parts, and greater reliability in control panels and outdoor enclosures.
Product Information
Extended Description
HS1038 Eaton Crouse-Hinds: Eaton Crouse-Hinds series throat bushing, Rigid/IMC, Insulated, Malleable iron, Set screw, 150°C, Threadless, 3"
Product Name
Eaton Crouse-Hinds series throat bushing
Catalog Number
HS1038
UPC
784564113689
Product Weight
0.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Style
Set screw
Insulator
Insulated
Thread
Threadless
Trade size
3"
Material
Malleable iron
Temperature rating
150°C
Crouse-Hinds series Insulating and Throat Bushings - Rigid-IMC catalog page
Insulating and Throat Bushings - Rigid-IMC UL certification
Insulating and Throat Bushings - Rigid-IMC UL certification
Eaton Specification Sheet - HS1038
Feature: Conduit compatibility with rigid/IMC systems. Business Impact: Ensures seamless integration with standard conduit runs, reducing configuration errors and rework. Application: Best for panel feeds and machine wiring in industrial environments where rigid/IMC is required. The result is faster installs and improved project predictability. Feature: Insulated, malleable iron body. Business Impact: Delivers robust mechanical protection with reliable electrical insulation, lowering risk of arcing and heat transfer. Application: Suitable for high-heat zones and equipment enclosures in manufacturing lines. This enhances safety and long-term durability. Feature: Threadless, set-screw design. Business Impact: Simplifies installation and alignment, enabling quicker field assembly and reducing tool requirements. Application: Ideal for in-field splices and retrofit work where space is constrained. Expect reduced labor time and fewer installation errors. Feature: Temperature rating of 150°C. Business Impact: Supports operation under elevated ambient temperatures and equipment heat, maintaining insulation integrity. Application: Critical for motors, drives, and instrumentation enclosures in busy factories. This minimizes performance degradation and unplanned maintenance. Feature: 3-inch trade size with insulated construction. Business Impact: Fits common conduit sizes while maintaining insulation performance, decreasing need for adapters. Application: Useful for main feeds and branch runs in control panels and switchgear assemblies. This translates to lower inventory variety and faster procurement. Feature: NEC/CEC compliance and UL certification. Business Impact: Provides regulatory confidence and safer installation in both US and Canadian markets. Application: Required for compliance-heavy projects in industrial facilities, water treatment, and process plants. This reduces audit risk and site rework.
Get a Quick Quote for a Eaton Crouse-Hinds HS1038
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds HS1038?
Enquire Now
FAQs
Yes, HS1038 is designed for rigid/IMC conduit with a threadless body and set-screw security. Installation involves inserting the conduit, aligning the bushing, and tightening the set screws to deliver a secure, insulated connection. The 3 inch trade size supports common field installations, reducing the need for adapters and simplifying stock requirements.
Key specs include malleable iron construction, insulated housing, threadless connection, set-screw style, 3 inch trade size, and a 150°C temperature rating. The part is rated for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, with UL certification for rigid-IMC fittings.
HS1038 is commonly used in industrial automation, panel building, and electrical enclosures where rigid/IMC conduit runs require insulated, durable bushings. It suits machinery, process equipment, and panel wiring in manufacturing, water treatment, and packaging lines where high reliability and heat resistance are essential.
HS1038 carries UL certification for rigid-IMC conduit fittings and NEC/CEC compliance. It is rated for Ordinary/Non-Hazardous Locations, ensuring regulatory alignment for US and Canadian projects and reducing approval timelines.
Using HS1038 reduces downtime by enabling faster field installs with secure, insulated connections. The 150°C rating and robust malleable iron construction lower failure risk in high-heat environments, cutting maintenance costs and minimizing unplanned outages in control panels and enclosures.
