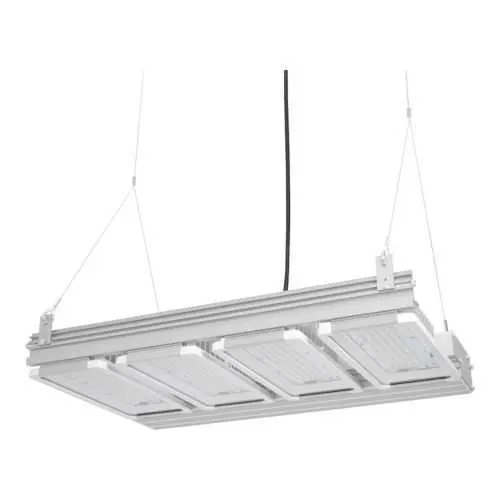

Eaton IHB32LP1/UNV1 S903 Industrial High Bay LED - NEC/CEC
Part Number: IHB32LP1/UNV1 S903
Manufacturer
Eaton Crouse-Hinds
Part number
IHB32LP1/UNV1 S903
Category
Quick Summary
The IHB32LP1/UNV1 S903 LED light fixture delivers high bay illumination for demanding industrial spaces. In tall-ceiling facilities, maintenance downtime and unreliable lighting erode productivity and safety. This unit is NEC/CEC compliant and UL-listed for ordinary/non-hazardous locations, offering 32,000 lumens at 117 lm/W with a PF of 0.99. With pendant mounting, wide optical distribution, and a non-dimmable driver, it simplifies retrofits and lowers energy and maintenance costs. Ideal for warehouses and manufacturing floors, it provides consistent, long-lasting illumination with minimal downtime.
Product Information
Extended Description
IHB32LP1/UNV1 S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IHB industrial high bay LED light fixture, Cool white, Non-dim driver, 500W-1000W HID or 6-8-lamp T5HO, Polycarb lens, 32000 lm, 117 lm/W, Aluminum, Pend mt, Wide, 3/4" trade size, 100-277Vac, 127-250Vdc, 289W
Product Name
Eaton Crouse-Hinds series IHB industrial high bay LED light fixture
Catalog Number
IHB32LP1/UNV1 S903
UPC
662276581685
Product Length/Depth
18.81 in
Product Height
4.23 in
Product Width
27.36 in
Product Weight
36 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lumens
32000
Lumens per watt
117
Color temperature
Cool white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Wide
Dimming
Non-dimmable driver
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Material
Aluminum
Lens material
Polycarbonate
Wattage
289 W
Equivalent luminaire
500W-1000W HID or 6-8-lamp T5HO
Power factor
0.99
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Industrial High Bay LED catalog page
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification
IF 1726 - Industrial High Bay LED Light Fixture
Eaton Specification Sheet - IHB32LP1/UNV1 S903
Feature → Business Impact → Application: High lumen output of 32000 lm delivers broad coverage for 27.36 in width and 18.81 in length, reducing the number of units needed and lowering installed cost. This translates to lower energy use per square foot in busy warehouses while maintaining safe light levels for forklift traffic. The 117 lm/W efficacy and 0.99 power factor improve overall energy efficiency and power quality, cutting utility bills and electrical stress on drives and transformers. A wide optical distribution ensures uniform brightness across large bays, minimizing hotspots and improving safety. The durable aluminum housing and polycarbonate lens support long life in industrial environments, reducing maintenance cycles and replacement costs. The pendant mounting offers flexible installation and easier retrofits in existing facilities without ceiling modifications. Compatible with 100-277 VAC and 127-250 VDC, it adapts to mixed electrical systems on site.
Get a Quick Quote for a Eaton Crouse-Hinds IHB32LP1/UNV1 S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds IHB32LP1/UNV1 S903?
Enquire Now
FAQs
The fixture uses pendant mounting and accepts 100-277 VAC or 127-250 VDC, enabling flexible installs across mixed electrical systems. The 3/4 inch trade-size pendant connection and aluminum housing simplify retrofits in warehouse ceilings, distribution centers, or manufacturing plants with minimal structural changes.
The IHB32LP1/UNV1 S903 delivers 32,000 lumens with an efficacy of 117 lumens per watt and a power factor of 0.99. Cool white color temperature enhances visibility for forklifts and task lighting in industrial settings, supporting safer and more productive operations.
Yes. The unit is classified for Ordinary/Non-Hazardous Locations under NEC/CEC standards and UL-listed for applicable North American requirements, ensuring safe operation in non-hazardous industrial spaces such as warehouses and light fabrication areas.
It meets NEC/CEC standards and carries UL certification for North American markets, with documentation available through Eaton’s Crouse-Hinds LED literature and catalog pages to support code approvals and performance verification.
LED longevity reduces replacement cycles and maintenance visits, lowering lifecycle costs. Energy efficiency, high lumen output, and a non-dimmable driver simplify control strategies and reduce operating expenses, improving facility uptime and delivering strong ROI for warehouses and manufacturing cells.
