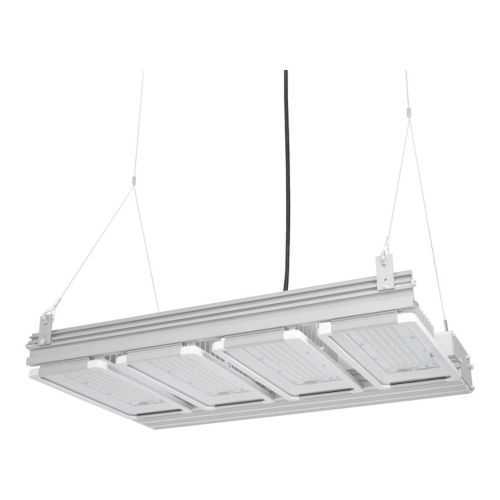

Eaton IHB8L/UNV1 High Bay LED - NEC/CEC
Part Number: IHB8L/UNV1
Quick Summary
IHB8L/UNV1 High Bay LED delivers reliable, high-efficiency illumination for large industrial spaces such as warehouses and manufacturing plants. Facilities often struggle with downtime, maintenance costs, and inconsistent lighting when using older fixtures; this high bay reduces those pains with long life and rugged construction. It aligns with NEC/CEC standards, UL certification, and area classifications for Ordinary/Non-Hazardous Locations, ensuring regulatory compliance and safe operation. For industrial lighting needs, it offers energy efficiency, straightforward installation, and dependable performance—supporting warehouse lighting, manufacturing illumination, and other high-ceiling applications.
Product Information
Extended Description
IHB8L/UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IHB industrial high bay LED light fixture, Cool white, Non-dimmable driver, Glass lens, 8000 lumens, 119 lm/W, Aluminum, No mounting module, Wide, 100-277 Vac, 127-250 Vdc, 71W
Product Name
Eaton Crouse-Hinds series IHB industrial high bay LED light fixture
Catalog Number
IHB8L/UNV1
UPC
662276506596
Product Length/Depth
18.83 in
Product Height
4.23 in
Product Width
10.36 in
Product Weight
12 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lumens
8000
Lumens per watt
119
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Wide
Dimming
Non-dimmable driver
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Material
Aluminum
Lens material
Glass
Wattage
71W
Power factor
0.99
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Industrial High Bay LED catalog page
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification
IF 1726 - Industrial High Bay LED Light Fixture
Eaton Specification Sheet - IHB8L/UNV1
Feature → Business Impact → Application: 8000 lumens at 71 W with 119 lm/W delivers bright, energy-efficient illumination that lowers operating costs while maintaining high visibility on factory floors and in warehouses. Application: industrial facilities seeking reduced energy bills and improved worker safety in large spaces. Feature → Business Impact → Application: Wide optical distribution provides uniform coverage across expansive areas, reducing hot spots and maintenance visits. Application: distribution centers and production lines requiring consistent lighting density. Feature → Business Impact → Application: Flexible power input from 100-277 VAC and 127-250 VDC simplifies electrical wiring and can accommodate existing power infrastructure. Application: retrofit projects and new builds aiming for installation simplicity. Feature → Business Impact → Application: Non-dimmable operation minimizes control-system complexity and potential failure points, ensuring reliable performance in high bay environments. Application: standard on/off lighting schemes in non-dimming sites. Feature → Business Impact → Application: Durable aluminum housing with glass lens withstands industrial dust, impact, and temperature variations, reducing replacement cycles. Application: harsh factory environments and large bays. Feature → Business Impact → Application: 12 lb weight, 18.83 in length, 4.23 in height, and 10.36 in width facilitate easier handling and mounting with existing hardware. Application: quick installation in retrofit projects. Feature → Business Impact → Application: High power factor of 0.99 and 50/60 Hz compatibility support stable operation with diverse power systems, improving overall energy management. Application: facilities with mixed electrical grids and long-term energy planning.
Get a Quick Quote for a Eaton Crouse-Hinds IHB8L/UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds IHB8L/UNV1?
Enquire Now
FAQs
IHB8L/UNV1 uses No mounting module, allowing installation with standard ceiling or structural mounting previously in place. Weight is 12 lb with dimensions 18.83 in L x 10.36 in W x 4.23 in H, enabling straightforward retrofits using existing hardware and mounting sites in warehouses and industrial facilities.
This fixture is classified for Ordinary/Non-Hazardous Locations under NEC/CEC standards, and is UL certified for general industrial use. For hazardous or explosion-risk areas, consider alternative high bay products specifically rated for those environments.
The fixture outputs 8000 lumens at 71 W with a power factor of 0.99, using a voltage range of 100-277 VAC or 127-250 VDC and a 50/60 Hz frequency. It features a cool white color temperature and an aluminum housing with a glass lens, designed for long life and reliable performance.
IHB8L/UNV1 adheres to NEC/CEC standards and UL certification, plus Ordinary/Non-Hazardous Location classification. These certifications help ensure regulatory compliance, safe operation, and suitability for non-hazardous industrial facilities, simplifying approval processes in many facilities.
With 8000 lumens at low wattage and a long-life LED design, maintenance intervals are extended compared with legacy fixtures, reducing downtime and labor costs. The energy efficiency and high PF contribute to a favorable return on investment through lower energy bills and fewer replacements over time.
