Eaton IHB8LP1/UNV1 High Bay LED Light - 0.99 PF
Part Number: IHB8LP1/UNV1
Quick Summary

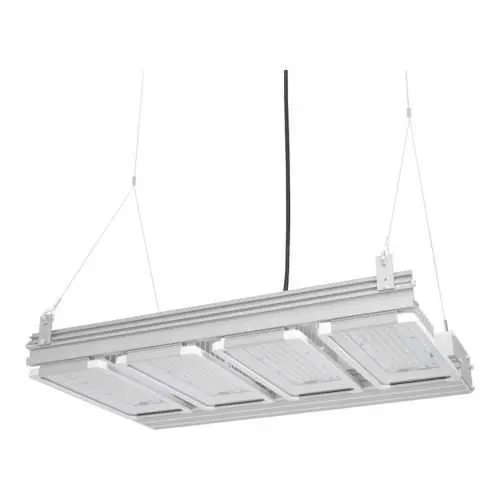

IHB8LP1/UNV1 industrial high bay LED light fixture delivers high-output illumination for large-area facilities. Facility engineers often struggle with reliability, maintenance costs, and energy efficiency in high-ceiling environments. It adheres to NEC/CEC standards and carries UL certification across US and Canada for luminaire fittings in ordinary locations. With pendant mounting, 8000 lumens at 119 lm/W, and a rugged aluminum housing, it enables consistent coverage, easier installation, and lower total cost of ownership for warehouses and manufacturing floors, supporting safer operation and longer service intervals. This combination delivers reliable, scalable lighting for facilities expanding operations, with straightforward procurement, serviceability, and lifecycle cost reductions.
Product Information
Extended Description
IHB8LP1/UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IHB industrial high bay LED light fixture, Cool white, Non-dimmable driver, Glass lens, 8000 lumens, 119 lm/W, Aluminum, Pendant mount, Wide, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 71W
Product Name
Eaton Crouse-Hinds series IHB industrial high bay LED light fixture
Catalog Number
IHB8LP1/UNV1
UPC
662276537453
Product Length/Depth
18.83 in
Product Height
4.23 in
Product Width
10.36 in
Product Weight
12 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lumens
8000
Lumens per watt
119
Color temperature
Cool white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Wide
Dimming
Non-dimmable driver
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Material
Aluminum
Lens material
Glass
Wattage
71W
Power factor
0.99
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Industrial High Bay LED catalog page
Industrial High Bay LED Light Fixtures UL certification (Luminaire Fittings)
Industrial High Bay LED Light Fixtures UL certification (Luminaire Fittings)
Industrial High Bay LED Light Fixtures UL certification (Luminaire Fittings)
Industrial High Bay LED Light Fixtures UL certification (Luminaire Fittings)
IF 1726 - Industrial High Bay LED Light Fixture
Eaton Specification Sheet - IHB8LP1/UNV1
The IHB8LP1/UNV1 delivers 8000 lumens at 71W, offering 119 lm/W to maximize brightness per watt and reduce energy usage for large spaces. This results in lower electricity costs and improved worker visibility in warehouses and distribution centers where high-ceiling lighting is critical. It runs on 100-277 Vac or 127-250 Vdc, enabling global deployment and simplifying procurement across sites. The non-dimmable driver reduces wiring complexity and eliminates potential control-point failures, delivering reliable performance in busy industrial environments. Pendant mounting with a 3/4 inch trade size supports flexible layouts, while a wide optical distribution and glass lens ensure even illumination of work cells. An aluminum housing provides robust heat dissipation and durability, reducing lumen depreciation and maintenance needs. NEC/CEC compliance and UL listings ensure safety and regulatory alignment for ordinary locations across markets.
Get a Quick Quote for a Eaton Crouse-Hinds IHB8LP1/UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds IHB8LP1/UNV1?
Enquire Now
FAQs
The fixture is designed for pendant mounting with a 3/4 inch trade size, enabling flexible hang heights for tall warehouse ceilings. The 12 lb aluminum housing and glass lens provide durable protection and heat management while allowing easy maintenance access to wiring and components.
Electrical input covers 100-277 Vac and 127-250 Vdc with a frequency of 50/60 Hz. The unit consumes 71W and delivers up to 8000 lumens, with a high power factor of 0.99. It uses a non-dimmable driver to simplify installation and control wiring.
Yes. It is rated for Ordinary/Non-Hazardous Locations and carries NEC/CEC compliance plus UL listings for US and Canada, making it well suited for typical industrial facilities such as warehouses and light manufacturing spaces.
The fixture complies with NEC/CEC standards and carries UL certification for luminaire fittings, including US and Canada listings. These certifications support safe operation, regulatory alignment, and easier approval during facility upgrades.
With 8000 lumens at 71W and a 0.99 power factor, the fixture delivers significant energy savings compared with legacy options. The non-dimmable driver reduces control complexity, while a durable aluminum housing and glass lens minimize maintenance and replacement cycles, improving lifecycle cost and uptime in busy facilities.
