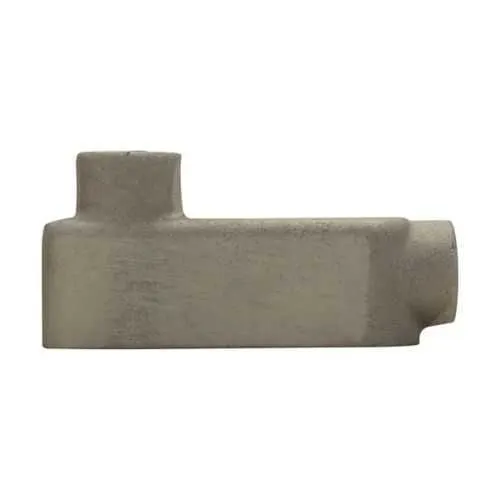

Eaton Crouse-Hinds LB1089 Conduit Outlet Body - NEMA 12
Part Number: LB1089
Quick Summary
LB1089 Conduit Outlet Body provides reliable conduit routing for industrial control panels. Installers often struggle with weight, corrosion resistance, and wiring access in tight panels. This unit meets NEC/CEC standards, carries a NEMA 12 rating, and uses copper-free aluminum for durability. With its Mark 9 form and 4 in trade size, it delivers quicker installations and long-term cost savings for panel builders and OEMs.
Product Information
Extended Description
LB1089 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LB shape, 4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LB1089
UPC
782274517803
Product Length/Depth
16.88 in
Product Height
7.81 in
Product Width
6.25 in
Product Weight
9.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB1089
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Copper-free aluminum construction offers corrosion resistance and lighter handling, reducing onsite fatigue and shipping costs while improving longevity in non-hazardous environments. The LB shape and 4 inch trade size enable efficient wire pulling and compact enclosure footprint, crucial for tight control panels and machine housings. A dependable NEMA 12 rating protects against dust and light moisture, helping maintain internal electronics and reducing maintenance. NEC/CEC compliance and UL certifications streamline audits and installation across North America, lowering risk and accelerating project timelines. The LB1089 measures 16.88 inches long, 7.81 inches high, and 6.25 inches wide, weighing 9.4 pounds, making it easy to specify, store, and retrofit in legacy panels. Additional resources such as the catalog page and installation sheets speed up field wiring and wire-fill planning.
Get a Quick Quote for a Eaton Crouse-Hinds LB1089
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB1089?
Enquire Now
FAQs
LB1089 is compatible with 4 in trade size fittings and is designed for simple access in standard panels. During installation, follow Eaton's IF 964 wire pulling guidelines and ensure the enclosure opening matches the LB footprint. Use proper gaskets and mounting screws to maintain NEMA 12 protection in ordinary locations.
Copper-free aluminum reduces weight and enhances corrosion resistance, extending service life in non-hazardous environments. It also simplifies handling during installation and shipment, supports better heat dissipation in control panels, and aligns with industry standards for non-metallic environments while maintaining strength.
Yes. LB1089 is designed for NEC/CEC compliance and carries UL certification for Conduit Outlet Bodies, supporting code-approved installations in North America. Its NEMA 12 rating further ensures protection against dust and light splashing water in ordinary locations.
Best suited for control panels, electrical enclosures, and machine housings in non-hazardous settings, LB1089 facilitates reliable wire routing and easy access for maintenance. The 4 in trade size and LB shape optimize space in compact panels while meeting NEC/CEC requirements.
Eaton provides a detailed catalog page, a specification sheet for LB1089, UL certification documents, and installation instructions such as IF964. These resources support accurate wire-fill calculations, correct assembly, and quick reference during field wiring, helping speed up project timelines.
