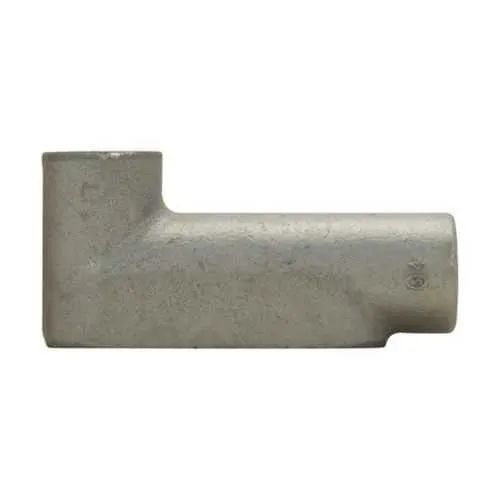

Eaton Crouse-Hinds LB17 Condulet Form 7 - NEMA 12
Part Number: LB17
Quick Summary
LB17 conduit outlet body by Eaton Crouse-Hinds provides rugged Form 7 access for industrial electrical installations. This design helps avoid field reworks by simplifying wire pulls and ensuring secure terminations in challenging environments. It supports NEC/CEC compliance and ordinary/non-hazardous locations, with durable Feraloy iron alloy construction and a 1/2 inch trade size, delivering reliable performance for demanding OEM and facility upgrades.
Product Information
Extended Description
LB17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LB shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LB17
UPC
782274512709
Product Length/Depth
4.56 in
Product Height
2.25 in
Product Width
1.38 in
Product Weight
0.92 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature LB17 is a Form 7 conduit outlet body made with Feraloy iron alloy, offering enhanced durability and corrosion resistance. Business impact: long service life reduces replacement costs and downtime in harsh industrial settings. Application: ideal for 1/2 inch trade-size conduit runs where consistent protection and easy access are required. Feature The LB shape enables straightforward wiring routes and clean box-to-conduit transitions, improving installation speed and reducing commissioning time. Business impact: faster project completion and lower labor costs. Application: standard in form 7 catalog applications for control panels and equipment enclosures. Feature NEMA 12 rating provides dust and light moisture protection, safeguarding conductors in ordinary locations. Business impact: improved reliability and compliance with global enclosures standards. Application: suitable for North American facilities handling everyday industrial duties. Feature NEC/CEC standards alignment ensures code-compliant installations across markets. Business impact: mitigates regulatory risk and supports multi-region deployments. Application: preferred for cross-border projects. Feature 1/2 inch trade size compatibility simplifies integration with common conduit stocks. Business impact: reduces inventory variety and simplifies maintenance. Application: widely used in machine builds and panel wiring. Feature Clear installation data in IF 964 and related guides supports proper wire pulling and safety. Business impact: minimizes damage during pulling and enhances worker safety. Application: recommended for installers following Eaton/Crouse-Hinds instruction sheets.
Get a Quick Quote for a Eaton Crouse-Hinds LB17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB17?
Enquire Now
FAQs
LB17 is designed for Form 7 conduit runs in ordinary/non-hazardous locations. It uses the LB shape for straightforward routing and is mounted per standard Condulet Form 7 practice, typically within panel or enclosure cutouts designed for 1/2 inch trade-size conduit bodies. Always consult the Form 7 catalog page and installation instructions for correct mounting details.
LB17 features a 1/2 inch trade size, LB-shaped Form 7 design, made from Feraloy iron alloy, with overall dimensions of 4.56 in (L) x 2.25 in (H) x 1.38 in (W) and a weight of 0.92 lb. It carries a NEMA 12 rating and NEC/CEC compliance, suitable for ordinary locations. UPC: 782274512709. These specs support reliable wiring pulls and durable enclosure terminations.
Yes. LB17 adheres to NEC/CEC standards and is certified for ordinary/non-hazardous locations with a NEMA 12 enclosure rating. Canadian certification references are available in the product’s downloadable documents, ensuring cross-border compliance for North American installations.
LB17’s Form 7 design, 1/2 inch trade size, and 4.56 inch length allow faster wire pulls and easier access to conductors. The use of Feraloy iron alloy provides durable protection, reducing replacement needs. Clear installation guides, including IF 964 instructions, help technicians execute safe, code-compliant installations with less rework.
LB17 offers long-term value through a durable LB-shaped Form 7 body that resists impact and environmental wear in industrial settings, lowering replacement costs and downtime. Its NEC/CEC compliance simplifies multi-region maintenance and reduces regulatory risk, while standard 1/2 inch conduit compatibility streamlines stocking and maintenance workflows.
