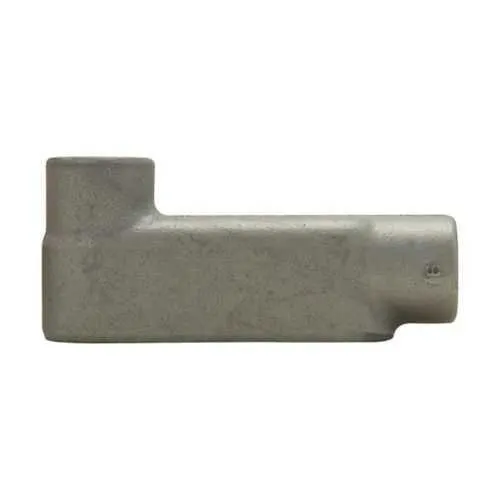

Eaton LB18 Condulet Form 8 Outlet Body - NEMA 12
Part Number: LB18
Quick Summary
LB18 is a Condulet Form 8 conduit outlet body designed for 1/2 in conduit in industrial electrical enclosures. This part helps technicians simplify wiring layouts while delivering durable protection for conductors. Installing conduit bodies that fit standard trade sizes can prevent field modifications and reduce assembly time. The LB18 carries crucial certifications for safe operation in non-hazardous locations: NEMA 12 for dust and splash protection, NEC/CEC compliance for code-ready installations, and Ordinary/Non-Hazardous area designation for typical factory environments. By using this form 8 LB18 component, shops gain faster wiring pulls, fewer re-entries, and improved panel reliability. The combination of Feraloy iron alloy and precise machining supports long service life and consistent performance in automation panels.
Product Information
Extended Description
LB18 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LB shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LB18
UPC
782274512907
Product Length/Depth
4.94 in
Product Height
2.22 in
Product Width
1.38 in
Product Weight
1.15 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB18
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Form 8 LB shape with 1/2 in trade size. Impact: compact, robust interface that minimizes panel depth and simplifies wire routing. Application: ideal for crowded control cabinets and machine enclosures in automation lines. Feature: Feraloy iron alloy housing. Impact: high strength and corrosion resistance for reliable service in routine factory environments. Application: long-life enclosure fittings in ordinary/non-hazardous locations. Feature: NEMA Rating 12. Impact: protects against dust and water splashes, improving uptime. Application: indoor equipment cabinets and process panels in manufacturing facilities. Feature: NEC/CEC compliance. Impact: streamlines approvals and code-ready installations across North America. Application: panel builders and integrators seeking compliant conduit fittings. Feature: Dimensions and weight (4.94 in L, 2.22 in H, 1.38 in W, 1.15 lb). Impact: predictable fit and predictable budgeting for panel design. Application: standardizing assemblies in automated control rooms. Feature: 1/2 in trade size compatibility. Impact: broad conduit compatibility reduces configuration time. Application: connects with standard 1/2 in conduits in new builds and retrofits. Feature: Accessible installation resources (IF 863 and LB18 datasheet). Impact: minimizes on-site errors and rework. Application: commissioning and maintenance teams rely on official guidance for safe pulls and seals.
Get a Quick Quote for a Eaton Crouse-Hinds LB18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB18?
Enquire Now
FAQs
Follow Eaton's IF 863 instruction sheet and the LB18 specification page. Use a 1/2 inch trade size conduit and standard mounting practices for Form 8 bodies, ensuring proper enclosure clearance and any required sealing per local codes.
Yes. LB18 is NEC/CEC compliant and carries a NEMA 12 rating, suitable for ordinary/non-hazardous indoor locations in manufacturing and automation environments.
LB18 is designed for ordinary/non-hazardous locations, ideal for indoor control panels, automation racks, and process enclosures in manufacturing facilities where dust and splash protection are important.
LB18 measures 4.94 in in length, 2.22 in in height, 1.38 in in width, and weighs 1.15 lb, providing a compact yet robust conduit outlet solution for standard 1/2 in conduits.
You can download the Eaton LB18 specification sheet at the official page https://www.eaton.com/us/en-us/skuPage.LB18.pdf and installation resources such as IF 863 at https://www.eaton.com/content/dam/eaton/products/conduit-cable-and-wire-management/crouse-hinds/instruction-sheets/crouse-hinds-if863-instruction-sheet.pdf. Additional related sheets are available via Eaton’s documentation pages.
