Eaton Crouse-Hinds LB19 Conduit Outlet Body - NEMA 12
Part Number: LB19
Quick Summary
LB19 conduit outlet body provides a rugged, copper-free aluminum outlet enclosure for electrical conduit systems in industrial facilities. In harsh environments, improper wire pulling and corrosion can drive downtime and safety risks. This Condulet Mark 9 component is rated for NEMA 12 and designed for ordinary/non-hazardous locations, with NEC/CEC compliance. By combining robust materials with standard Form 8/Mark 9 compatibility, it enables faster installation and reliable performance, reducing maintenance costs.
Product Information
Extended Description

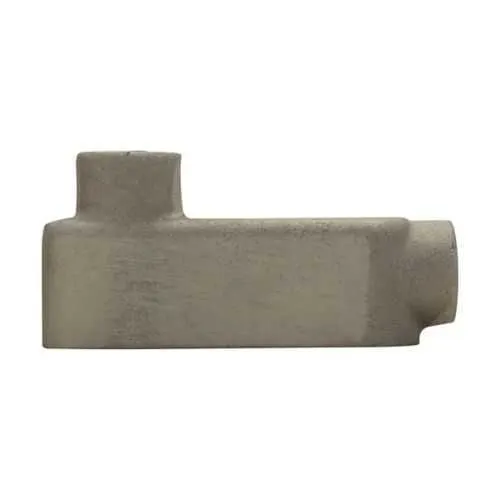

LB19 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LB shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LB19
UPC
782274513003
Product Length/Depth
4.59 in
Product Height
2.13 in
Product Width
1.38 in
Product Weight
0.33 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB19
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature copper-free aluminum construction → Business Impact: Delivers superior corrosion resistance with lighter weight, lowering handling and shipping costs while extending service life. Application: ideal for outdoor or moisture-prone plant areas and rugged industrial environments. Feature LB shape and 1/2" trade size → Business Impact: Streamlines conduit routing and reduces installation complexity, cutting field labor time. Application: fits standard Form 8/Mark 9 installations in compact enclosures. Feature NEMA Rating 12 and Ordinary/Non-Hazardous Locations → Business Impact: Provides dust and water protection for general-purpose indoor use, ensuring regulatory conformity. Application: aligns with NEC/CEC requirements in typical factory settings. Feature Form 8 and Mark 9 compatibility → Business Impact: Simplifies stocking and part interchangeability, accelerating maintenance and upgrades. Application: supports archival catalog pages and standard replacements. Feature dimensions and weight 4.59 in L × 2.13 in H × 1.38 in W, 0.33 lb → Business Impact: Easy handling and precise fit in limited spaces, reducing installation error. Application: ideal for panel and wiring duct setups. Installation guidance via IF 863 → Business Impact: Reduces risk during wire pulling with documented procedures. Application: field installations in Controller Panels and Junction Boxes.
Get a Quick Quote for a Eaton Crouse-Hinds LB19
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB19?
Enquire Now
FAQs
Install LB19 using standard Form 8/Mark 9 practices. Refer to IF 863 for conduit body wire pulling and the LB19 specification sheet for mounting hole alignment, sealants, and torque guidelines. Ensure the 1/2" trade size matches the conduit run and that copper-free aluminum is not exposed to incompatible fasteners. Follow NEC/CEC grounding requirements for compliant installations.
LB19 features a copper-free aluminum construction in an LB shape, 1/2" trade size, 4.59 in length, 2.13 in height, 1.38 in width, and a weight of 0.33 lb. It carries a NEMA 12 rating and is suitable for ordinary/non-hazardous locations, conforming to NEC/CEC standards and Form 8/Mark 9 compatibility.
Yes, LB19 is rated for Ordinary/Non-Hazardous Locations with a NEMA 12 enclosure. It complies with NEC/CEC standards and is designed to integrate with Condulet Mark 9 and Form 8 systems. This makes it appropriate for general industrial facilities where dust and water exposure are limited and regulatory compliance is required.
Consult the Crouse-Hinds Form 8 and Mark 9 catalog page for overall compatibility, and reference the Eaton LB19 specification sheet for exact dimensions and mounting details. Installation instructions including wire pulling are available in IF 863, and there are Canadian certification references in related UL pages for conformity checks.
LB19 provides durable, corrosion-resistant copper-free aluminum construction and standard Form 8/Mark 9 compatibility, reducing field labor and downtime. Its compact LB shape and 1/2" trade size improve routing in crowded panels, while NEC/CEC compliance and NEMA 12 protection enhance reliability and long-term maintenance costs in industrial automation environments.
