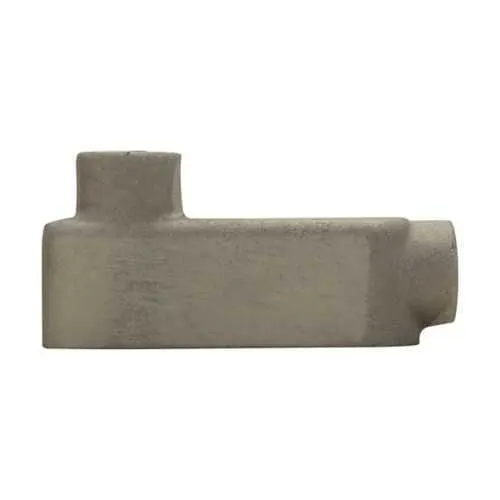

Eaton Crouse-Hinds LB29 Conduit Outlet Body - NEMA 12
Part Number: LB29
Quick Summary
LB29 Conduit Outlet Body by Eaton Crouse-Hinds provides rugged, corrosion-resistant conduit terminations for control panels and industrial enclosures. This surface-mounted LB-shaped body simplifies wiring runs in tight spaces while maintaining robust protection. Engineers often struggle with weight, installation ease, and long-term durability in harsh environments—this unit addresses those pain points with a lightweight copper-free aluminum design and a proven Mark 9 form factor. It carries the NEMA 12 rating for dust and moisture control and supports NEC/CEC compliance, making it suitable for ordinary locations. With a 3/4 inch trade size and Condulet Mark 9 compatibility, it delivers reliable performance with reduced lifecycle costs and simplified field installation.
Product Information
Extended Description
LB29 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LB shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LB29
UPC
782274513607
Product Length/Depth
5.25 in
Product Height
2.47 in
Product Width
1.59 in
Product Weight
0.43 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
3/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB29
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: Copper-free aluminum construction reduces weight and simplifies handling on crowded installation sites, lowering labor costs and improving install speed; the material also offers corrosion resistance in non-hazardous environments, extending service life in factory floors and machine enclosures. This translates to longer intervals between replacements and lower maintenance expense for industrial facilities. Feature → Business Impact → Application: LB shape and 3/4" trade size provide flexible routing for conduit runs in compact panels, enabling more efficient space planning and faster wiring pulls; ideal for control panels, machinery bays, and equipment racks. Feature → Business Impact → Application: NEMA 12 rating ensures dust and moisture protection in ordinary non-hazardous locations, reducing enclosure ingress risk and safeguarding sensitive connections during routine maintenance. Feature → Business Impact → Application: Condulet Mark 9 compatibility and the 5.25 in length, 2.47 in height, and 1.59 in width deliver predictable fit and interchangeability with existing Eaton catalog components, improving spare-part availability and reducing design-time questions. Feature → Business Impact → Application: Copper-free aluminum provides a sustainable option with easier recycling at end of life, supporting corporate ESG goals while maintaining mechanical integrity in service. Feature → Business Impact → Application: UL Canada certifications and NEC/CEC compliance ensure regulatory alignment for projects across North America, easing procurement and commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds LB29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB29?
Enquire Now
FAQs
LB29 is designed for straightforward installation in standard panels and enclosures. It fits 3/4 inch trade-size conduits and pairs with Condulet Mark 9 components. Use IF 863 for wire pulling guidance to minimize snag and ensure proper bend radii; verify that mounting surfaces meet ordinary/non-hazardous location requirements and use appropriate gaskets to maintain NEMA 12 integrity.
LB29 is certified for NEC/CEC compliance and carries a NEMA 12 rating, suitable for ordinary locations. Its copper-free aluminum construction contributes to corrosion resistance and lighter weight, aiding installation. Canadian certification references are available for cross-border projects, and UL-based documentation supports compliance verification during audits.
Yes. The product is rated for Ordinary/Non-Hazardous Locations under the NEMA 12 specification. This makes LB29 a practical choice for factory floors, control panel housings, and machinery cabinets where dust protection and moisture control are prioritized, without requiring explosion-proof or chemical-resistant ratings.
LB29 is designed to be compatible with the Crouse-Hinds Condulet Mark 9 family, providing interchangeable mounting and sealing interfaces. This compatibility streamlines design, reduces SKU proliferation, and supports quick field replacements. Refer to the Mark 9 catalog page for standardized dimensions and installation recommendations.
Copper-free aluminum LB conduit bodies offer weight savings that translate into faster installation, reduced labor costs, and easier handling in tight spaces. The corrosion resistance extends service life in non-hazardous environments, lowering maintenance and replacement costs over the asset lifecycle, while supporting sustainability objectives through easier end-of-life recycling.
