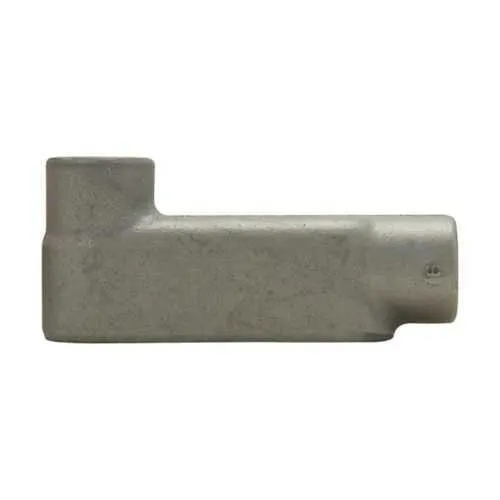

Eaton LB38 Condulet Form 8 conduit outlet body - NEMA 12
Part Number: LB38
Quick Summary
LB38 Condulet Form 8 conduit outlet body from Eaton enables rugged conduit entry for 1-inch trade-size wiring in panels. Wiring in tight spaces often stalls projects due to difficult pull points and non-compliant enclosures. It supports NEC/CEC compliance with a NEMA 12 rating, suitable for ordinary/non-hazardous locations. Designed for reliability and fast installation, LB38 reduces field rework while maintaining code compliance. For panel builders and service teams, this conduit body delivers long-term value through durability and expedient wiring. In practice, installers value the precise dimensions—6.47 in length, 2.81 in height, and 1.75 in width—for compact installations. This aligns with our customer focus on safe, efficient, code-compliant wiring in control panels.
Product Information
Extended Description
LB38 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LB shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LB38
UPC
782274514109
Product Length/Depth
6.47 in
Product Height
2.81 in
Product Width
1.75 in
Product Weight
2.18 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
1"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB38
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides superior durability under heavy industrial use. Business Impact: Extends service life and reduces replacement costs in harsh environments. Application: Suitable for Form 8 LB-shaped conduit bodies in lo-heat, dry locations where robustness matters. Feature: LB shape enables shorter pull paths and easier wiring in crowded panels. Business Impact: Speeds up installation, lowers labor costs, and minimizes field mispulls. Application: 1-inch trade-size conduits in electrical panels and junctions. Feature: NEMA 12 rating plus NEC/CEC compliance ensures safe operation in ordinary/non-hazardous locations. Business Impact: Simplifies compliance reporting and reduces risk of code violations. Application: Installing conduit bodies in standard industrial environments. Feature: Compact dimensions and manageable weight (6.47 in L, 2.81 in H, 1.75 in W, 2.18 lb) improve fitment in tight spaces. Business Impact: Improves project predictability and reduces mounting time. Application: Enclosures with limited panel depth or width. Feature: Availability of installation resources (IF 863, catalog pages, datasheets) supports faster procurement and safer installs. Business Impact: Cuts project lead times and supports field engineering with authoritative guidance. Application: Procurement, installation planning, and on-site training for maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds LB38
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB38?
Enquire Now
FAQs
LB38 installs on standard 1-inch trade size conduits and mounts to compatible panels using typical conduit body mounting practices. Follow the installation instructions in IF 863 for wire pulling and ensure alignment with the Form 8 LB shape to maximize pull length. Confirm NEC/CEC compliance and NEMA 12 suitability for ordinary locations before finalizing the fit.
LB38 uses a Feraloy iron alloy, known for high strength and corrosion resistance in harsh environments. Its NEMA 12 rating supports enclosure protection against dust and water ingress in ordinary/non-hazardous locations. The combination of material and rating reduces maintenance needs and extends service life in demanding industrial settings.
Yes. The LB38 is designed for Form 8 configurations with a 1-inch trade size, making it ideal for control panels that require robust conduit entry points in non-hazardous locations. Its LB shape provides efficient wire pulling paths, contributing to faster panel assembly and easier future modifications.
LB38 carries NEC/CEC compliance and a NEMA 12 rating for ordinary/non-hazardous locations. Canadian certification can be verified via UL-listed documentation linked in product downloads. For full traceability, reference the Crouse-Hinds/Form 8 catalog pages and the Eaton datasheets.
A range of resources supports LB38 installations, including the Crouse-Hinds Form 8 and Mark 9 catalog page, IF 863 wire-pulling instruction sheets, the Eaton LB38 specification sheet, and bend-radius/cubic-capacity charts. These materials help validate fit, ensure compliance, and speed procurement and field execution.
