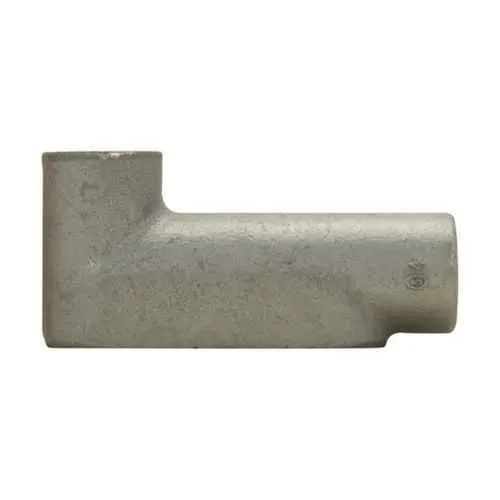

Eaton Crouse-Hinds LB47 Condulet Form 7 - NEMA 12
Part Number: LB47
Quick Summary
LB47 Condulet Form 7 conduit outlet body provides durable conduit housing for industrial electrical installations. Engineers often struggle with enclosure compatibility and weatherproofing in tight panels, where misfits can cause leaks or wiring conflicts. It carries a NEMA 12 rating for dust and moisture control in ordinary locations and adheres to NEC/CEC standards, supporting safe, compliant installations. This form-factor is tailored for 1-1/4 inch trade size systems, aligning with standard Condulet Form 7 configurations. By offering precise dimensions and a robust Feraloy iron alloy body, it minimizes field adjustments and rework, enabling faster panel assembly, improved uptime, and lower life-cycle costs. The solution also integrates smoothly with installation resources and official datasheets for quick reference during procurement and field wiring.
Product Information
Extended Description
LB47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LB shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LB47
UPC
782274514505
Product Length/Depth
6.5 in
Product Height
3.31 in
Product Width
2.19 in
Product Weight
2.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feraloy iron alloy construction provides rugged, corrosion-resistant housing for Condulet Form 7 conduit bodies. This material combination reduces wear in dusty, humid factory floors and extends service life, cutting maintenance costs. Applications include 1-1/4 inch trade size conduit runs in control panels and industrial equipment. LB shape and 1-1/4 inch trade size design deliver straightforward routing and fewer adapters. The LB47 fits standard Form 7 configurations, accelerating installation and reducing field rework in tight panel spaces. With a NEMA 12 rating and NEC/CEC standards alignment, the LB47 supports dust and moisture control in ordinary locations. This compliance reduces project risk and streamlines procurement for regulated environments. Dimensions of 6.5 in length, 3.31 in height, 2.19 in width, and 2.45 lb weight help buyers plan panel cutouts and mounting layouts with confidence and ensure compatible enclosure fit. Access installation resources and datasheets—IF 863 wire pulling, catalogs, and official spec guides—ensuring proper wiring and fast validation.
Get a Quick Quote for a Eaton Crouse-Hinds LB47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB47?
Enquire Now
FAQs
For LB47 Form 7 conduit outlet bodies, ensure compatibility with 1-1/4 in trade size conduits and Form 7 configurations. Use the IF 863 wire-pulling guidance to minimize conductor damage during installation, and reference the official datasheets for proper mounting, gasketing, and enclosure sealing practices to maintain NEMA 12 performance.
LB47 carries a NEMA 12 rating for dust and moisture control in Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards. This combination provides code-compliant wiring infrastructure for common industrial environments, reducing risk during audits and simplifying procurement with validated certifications and reference documents.
LB47 is specified for Ordinary/Non-Hazardous Locations with a NEMA 12 rating. It is not designed for wet or hazardous environments. For such locations, select conduit bodies with appropriate NEMA ratings (e.g., NEMA 4X or higher) and verify compatibility with site-specific explosion- or water-protection requirements.
LB47 measures 6.5 inches in length, 3.31 inches in height, and 2.19 inches in width, with a weight of 2.45 pounds. These precise dimensions enable accurate panel cutouts and mounting layouts, reducing overhang and ensuring secure fittings in tight spaces common to control panels and equipment enclosures.
Access the Condulet Form 7 catalog page, UL certification pages for Form 7 outlet bodies and covers, and installation sheets such as IF 863. Also consult the Form 7 specification guides and the wire fill chart to verify space, capacity, and compliance before procurement and field wiring activities.
