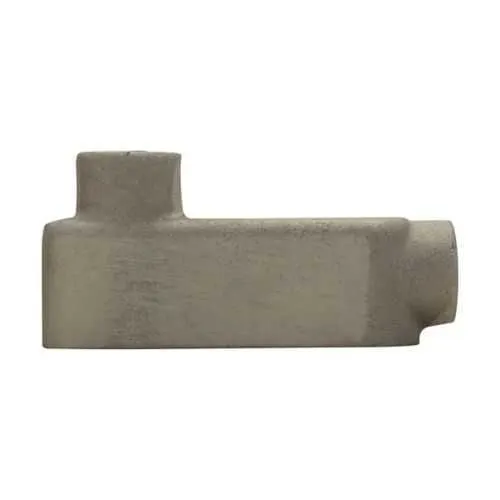

Eaton Crouse-Hinds LB49 Conduit Outlet Body - NEMA 12
Part Number: LB49
Quick Summary
LB49 Conduit Outlet Body by Eaton Crouse-Hinds provides rugged, copper-free aluminum termination for 1-1/4" runs. Installers often struggle with space constraints, corrosion risk, and non-compliance when routing cables in control enclosures. This unit carries NEC/CEC compliance, a NEMA 12 rating, and suitability for ordinary/non-hazardous locations to streamline approvals. The conduit body’s robust material and LB shape support reliable, maintenance-friendly wiring in industrial panels. By combining durable construction with a proven form factor, it reduces service calls and extends panel life. Leverage this solution to improve installation efficiency, simplify maintenance, and meet industry standards across manufacturing environments.
Product Information
Extended Description
LB49 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LB shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LB49
UPC
782274514703
Product Length/Depth
7.09 in
Product Height
3.63 in
Product Width
2.19 in
Product Weight
1.23 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
1-1/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB49
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Copper-free aluminum construction provides excellent corrosion resistance while keeping weight manageable, reducing handling effort on-site and lowering lifecycle costs. Business impact: longer service intervals and easier disposal. Application: use in control panels and outdoor enclosures where exposure to humidity or contaminants is possible. The LB shape with a 1-1/4 inch trade size offers flexible conduit routing and compatibility with standard fittings, enabling faster wiring runs and fewer custom parts. Business impact: reduced installation time and lower inventory complexity. Application: ideal for machine frames and panel enclosures in automated lines. NEMA 12 rating and NEC/CEC compliance ensure safe operation in ordinary/non-hazardous locations, protecting against dust and light moisture. Business impact: streamlined regulatory approvals and safer enclosures. Application: suitable for dry plant rooms and non-hazardous industrial areas. Documentation and installation resources, including IF 964 wire pulling instructions and wire fill charts, support faster commissioning. Business impact: fewer field mistakes and improved project timelines. Application: field retrofit projects and new-build automation installations.
Get a Quick Quote for a Eaton Crouse-Hinds LB49
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB49?
Enquire Now
FAQs
LB49 is designed for a 1-1/4 inch trade size and features an LB shape that aligns with standard conduit bodies. It integrates with common Eaton/Crouse-Hinds fittings, simplifying panel mounting and wire routing in control enclosures.
LB49 carries NEC/CEC compliance and a NEMA 12 rating, suitable for ordinary/non-hazardous locations. This combination supports compliant installation in dry industrial environments and helps streamline regulatory approvals.
Yes. With a NEMA 12 rating and NEC/CEC standards, the LB49 is intended for ordinary locations, including dry plant rooms and similar industrial settings, providing reliable protection for interior conductors.
Documentation is available through Eaton’s resources, including the LB49 specification sheet, Condulet Mark 9 catalog pages, and Canadian certification listings. Installation instructions such as IF 964 for wire pulling are also provided to assist field crews.
Use the IF 964 wire pulling instructions and refer to the wire fill chart for correct conduit fill. The LB49’s LB shape and 1-1/4" size, combined with copper-free aluminum construction, facilitate smoother pulls and faster commissioning in automated panels.
