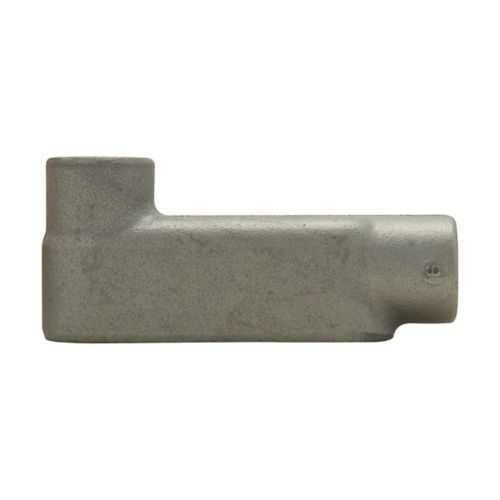

Eaton Crouse-Hinds LB58 Conduit Outlet Body - NEMA 12
Part Number: LB58
Quick Summary
LB58 conduit outlet body from Eaton Crouse-Hinds provides robust terminations for 1-1/2 in Form 8 conduits. Engineers often struggle with fittings that fail under vibration, weather exposure, or mis-sizing, leading to field rework and downtime. This LB58 solution carries NEC/CEC compliance and a NEMA 12 rating, aligning with ordinary-location enclosures. Designed for 1-1/2 inch trade size and Form 8 configurations, it streamlines panel wiring and reduces rework. It also leverages the material strength of Feraloy iron alloy for durable service in demanding environments. This combination supports faster procurement, predictable performance, and lower total cost of ownership across projects.
Product Information
Extended Description
LB58 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LB shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LB58
UPC
782274515205
Product Length/Depth
9.13 in
Product Height
4.03 in
Product Width
2.75 in
Product Weight
4.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB58
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction delivers superior strength and abrasion resistance. Business Impact: Longer service life and reduced maintenance in demanding environments. Application: Suitable for 1-1/2" Form 8 conduit runs in industrial panels. Feature: LB shape with a 1-1/2 inch trade size. Business Impact: Simplifies compatibility with standard conduit systems and minimizes field adjustments. Application: Ideal for enclosures and control panels needing Form 8 fittings. Feature: NEMA 12 rating and NEC/CEC compliance. Business Impact: Provides reliable protection against dust and water ingress in ordinary locations, supporting regulatory adherence. Application: Suitable for non-hazardous environments in manufacturing and packaging lines. Feature: Defined dimensions and weight (9.13 in L, 4.03 in H, 2.75 in W; 4.35 lb). Business Impact: Easier handling, mounting, and on-site installation. Application: Fits standard mounting footprints and supports straightforward integration. Feature: Availability of installation resources (IF 863, specification sheet, wire fill charts). Business Impact: Accelerates planning and reduces risk of under-sizing or pull issues. Application: Useful during design reviews and field commissioning across Form 8 applications.
Get a Quick Quote for a Eaton Crouse-Hinds LB58
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB58?
Enquire Now
FAQs
LB58 is ideal for Form 8 conduit runs on industrial panels and enclosures in ordinary locations. It supports 1-1/2 inch trade size, facilitating direct compatibility with standard conduit systems. Use with Condulet Form 8 assemblies to simplify wiring in control panels, motor starters, and process equipment. Follow IF 863 instruction sheets for wire pulling to minimize snags and rework during field installs.
LB58 carries NEC/CEC compliance and a NEMA 12 rating, indicating suitability for ordinary locations with dust and limited water exposure. It is designed for Form 8 conduit bodies and 1-1/2 inch trade size. While UL certification references appear in related documents, always consult the latest Eaton datasheet and catalog pages for current certification status and listing details.
The Form 8 LB58 design reduces tight bends and simplifies wire pulls in 1-1/2 inch conduit runs, lowering installation time and reducing field damage risk. Its robust Feraloy iron alloy casing protects terminations over the lifecycle, decreasing maintenance visits. When paired with the provided wire fill charts and installation guides, it supports accurate sizing and faster commissioning.
Yes. LB58 is a Form 8 conduit outlet body with LB shape and 1-1/2 inch trade size, engineered to integrate with Form 8 fittings and standard Crouse-Hinds condulet assemblies. This compatibility minimizes rework and ensures consistent performance across panels and enclosures in industrial environments.
Key resources include the Eaton LB58 specification sheet, Crouse-Hinds Form 8 catalog pages, and installation sheets like IF 863 for wire pulling. Additional references include the Industrial Fittings Wire Fill Chart and related technical bulletins. Access these from the product page or Eaton’s technical documents library to support design reviews and field installations.
