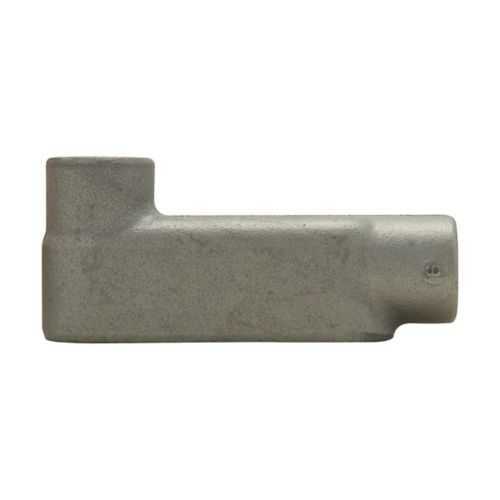

Eaton LB68 Condulet Form 8 conduit outlet body - NEMA 12
Part Number: LB68
Quick Summary
LB68 Condulet Form 8 conduit outlet body from Eaton Crouse-Hinds provides a rugged, compact enclosure for 2 in conduit terminations in industrial control panels. Operators and technicians face installation challenges in tight spaces where wire pulls can snag, delay projects, and raise maintenance costs. It carries UL-listed certification, NEC/CEC compliance, and a NEMA 12 rating for ordinary, non-hazardous locations, with Canada certification for cross-border projects. By combining durable feraloy iron alloy construction with Form 8 compatibility and a 2 in trade size, LB68 delivers reliable performance and faster deployment across panel builds and automation installations. This results in reduced field rework and predictable reliability in harsh industrial environments.
Product Information
Extended Description
LB68 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LB shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LB68
UPC
782274515700
Product Length/Depth
11 in
Product Height
4.81 in
Product Width
3.75 in
Product Weight
7.3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB68
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy housing delivers durability against impact and corrosion. Business impact: extends service life and reduces replacement costs in busy plants. Application: ideal for Condulet Form 8 conduit outlet bodies in control panels and switchgear where rugged protection is required. Feature: Form 8 LB shape with 2" trade size compatibility. Business impact: simplifies wiring routes and minimizes panel depth constraints, speeding installation. Application: fits standard Form 8 fittings, enabling streamlined retrofits and new builds. Feature: NEMA 12 rating and Ordinary/Non-Hazardous location suitability. Business impact: provides reliable enclosure protection against dust and light moisture, lowering maintenance needs. Application: suitable for factory interiors and non-hazardous equipment enclosures. Feature: NEC/CEC compliance and UL listing. Business impact: reduces regulatory risk and accelerates approvals in multinational projects. Application: procurement for certified electrical installations across regions. Feature: Documented installation guidance and wire-pull support. Business impact: ensures accurate sizing and safe pulls, cutting installation time. Application: reference IF 964 and wire fill chart for planning and compliance. Feature: Clear dimensional specs and weight. Business impact: predictable handling and fit during installation with 11 in L, 4.81 in H, 3.75 in W, 7.3 lb. Application: field mounting in space-constrained panels and equipment cabinets.
Get a Quick Quote for a Eaton Crouse-Hinds LB68
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB68?
Enquire Now
FAQs
LB68 is a Form 8 conduit outlet body designed for a 2 in trade size and accepts standard Form 8 fittings. Its 11 in length and 7.3 lb weight balance ease of handling during wiring pulls, and Eaton provides installation guidance (IF 964) to optimize wire pulling and reduce abrasion inside the enclosure.
LB68 carries NEC/CEC compliance, a NEMA 12 rating, and UL listing for conduit outlet bodies. It is suitable for ordinary/non-hazardous locations in industrial environments, with Canada certification options for cross-border projects. Always verify project-specific requirements and local codes during procurement.
Yes. The LB68 Form 8 2" conduit outlet body is designed for compact installations with a length of 11 inches and a height of 4.81 inches, offering a balanced footprint for tight panel layouts. Its form and dimensions help streamline routing and minimize clearance issues in crowded cabinets.
Consult Eaton’s LB68 specification sheet, IF 964 Conduit Body Wire Pulling instructions, and the Industrial Fittings Wire Fill Chart. These resources provide wiring capacity guidance, recommended mounting practices, and wire-pull considerations to ensure compliant, efficient installations.
Key specs include 11 in length, 4.81 in height, 3.75 in width, and 7.3 lb weight. Material is Feraloy iron alloy, with a 2 in trade size and Form 8 shape. The product is designed for ordinary locations with a NEMA 12 rating and NEC/CEC standards compliance.
