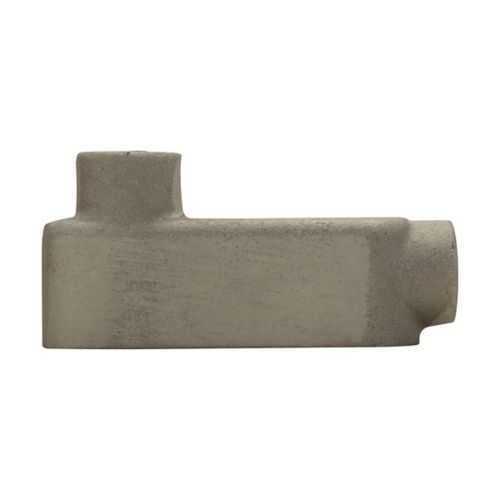

Eaton Crouse-Hinds LB69 Condulet Mark 9 outlet - NEMA 12
Part Number: LB69
Quick Summary
LB69 Condulet Mark 9 outlet is a rugged conduit outlet body designed for 2" systems in control panels and enclosures. In dense panel environments, engineers struggle with limited wiring access, space, and maintaining compliance. This unit delivers NEC/CEC conformity and a NEMA 12 rating for ordinary/non-hazardous locations, helping ensure reliable operation and peace of mind. The copper-free aluminum construction reduces weight without sacrificing durability, while the LB shape facilitates efficient routing. By aligning with standard conduit fittings and installation practices, it supports faster assembly, lower labor costs, and long-term reliability in industrial applications.
Product Information
Extended Description
LB69 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LB shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LB69
UPC
782274515809
Product Length/Depth
10.09 in
Product Height
4.59 in
Product Width
3.22 in
Product Weight
2.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB69
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature is copper-free aluminum construction. Business impact is superior corrosion resistance with reduced weight, improving handling and installation efficiency on crowded panels. Application is 2" conduit systems in machine control cabinets. Feature is LB shape and 2" trade size. Business impact is easier routing in tight spaces and compatibility with common conduit runs, reducing field modifications. Application is equipment enclosures and panel boards in non-hazardous environments. Feature is NEC/CEC compliance and NEMA 12 rating. Business impact is regulatory alignment and protective enclosure for ordinary locations, lowering risk of exposure and downtime. Application is industrial automation installations demanding durable enclosure components. Feature is dimensional specs—10.09 in length, 4.59 in height, 3.22 in width, 2.45 lb weight. Business impact is predictable space planning and transport logistics at the job site. Application is panel fabrication and assembly lines where fast, repeatable fitting matters. Feature is compatibility with installation instructions and catalogs. Business impact is informed buying decisions and quicker training for maintenance teams. Application is new-build or retrofit projects in controlled environments seeking compliant conduit solutions.
Get a Quick Quote for a Eaton Crouse-Hinds LB69
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB69?
Enquire Now
FAQs
LB69 is designed for a 2" trade size and LB-shaped conduit routing, allowing straightforward mounting in standard control panels and enclosures. It works with common Condulet fittings and fits neatly within typical panel layouts, reducing timing and rework during installation.
Key specs include copper-free aluminum construction, LB shape, 2" trade size, 10.09 in length, 4.59 in height, 3.22 in width, and a weight of 2.45 lb. It carries a NEMA 12 rating and NEC/CEC standards, making it suitable for ordinary locations in non-hazardous environments.
LB69 is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC with a NEMA 12 enclosure. For hazardous areas, consult alternative Condulet variants or additional protective enclosures rated for those classifications.
LB69 complies with NEC/CEC standards and carries a NEMA 12 rating, suitable for ordinary locations. UL certification documents for Condulet Mark 9 outlets are available, providing additional assurance of listing and safety compliance.
Refer to Eaton’s catalog page for the Form 8 and Mark 9 lineup, the LB69 specification sheet, and IF 863 installation instructions for wire pulling. These resources help ensure correct assembly, wiring, and routing in panel applications.
