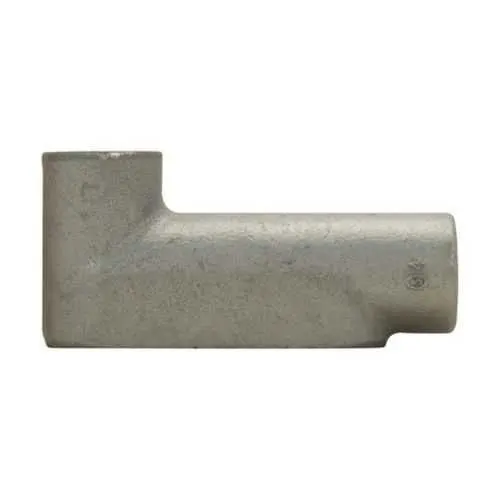

Eaton Crouse-Hinds LB777 Conduit Outlet Body - NEMA 12
Part Number: LB777
Quick Summary
LB777 conduit outlet body is a Form 7 solution for rugged electrical installations and reliable wire management in industrial facilities. This LB777 model addresses common pain points like difficult wire pulling and inconsistent protection in harsh environments. It carries NEC/CEC compliance and a NEMA 12 rating, with UL certifications for US and Canada to ensure safe, regulatory-grade performance. The durable Feraloy iron alloy construction and LB shape support 2-1/2 inch trade-size conduits, making installation faster and more scalable. For panel builders and integrators, this conduit body translates to fewer field adjustments, easier maintenance, and dependable long-term operation.
Product Information
Extended Description
LB777 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LB shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LB777
UPC
782274517308
Product Length/Depth
10.5 in
Product Height
5.13 in
Product Width
4.25 in
Product Weight
8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
2-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Form 7 LB777 LB shape supports 2-1/2 inch trade size conduits. Business Impact: Improves wire pulling and routing, reducing installation time by preventing tight bends and misalignment. Application: Ideal for industrial control panels and equipment enclosures where space is at a premium. Feature: Feraloy iron alloy construction provides rugged durability and corrosion resistance. Business Impact: Extends service life in demanding environments, lowering maintenance costs and downtime. Application: Suitable for harsh factory floors and outdoor-rated installations. Feature: Precise dimensions and weight—10.5 in length, 5.13 in height, 4.25 in width, and 8 lb weight. Business Impact: Robust mechanical protection with predictable fit in crowded panels, enabling faster assembly and fewer field modifications. Application: Widely used in large enclosures and multi-bay panels. Feature: NEC/CEC compliance and NEMA Rating 12 with Ordinary/Non-Hazardous Location suitability. Business Impact: Reduces compliance risk and simplifies procurement for regulated projects. Application: Fits standard electrical codes for commercial and industrial facilities. Feature: Availability of technical literature and installation resources—IF 863 instruction sheets and Form 7 spec guides. Business Impact: Accelerates deployment, improves first-pass wiring accuracy, and lowers training time. Application: Helpful for field technicians and original equipment manufacturers integrating Condulet Form 7 solutions. The LB777 Conduit Outlet Body thus enables faster, safer installations with consistent performance, while aligning with industry standards and long-term maintenance planning for panel builders and system integrators.
Get a Quick Quote for a Eaton Crouse-Hinds LB777
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB777?
Enquire Now
FAQs
Yes. LB777 is a Form 7 conduit outlet body in the LB shape designed specifically for 2-1/2 inch trade-size conduits and Form 7 covers. It provides the correct clearance and mounting interfaces for reliable sealing and wiring access, helping ensure a clean, code-compliant installation in control panels and equipment enclosures.
LB777 carries NEC/CEC standards and a NEMA 12 rating for ordinary/non-hazardous locations. UL certification status is documented for both US and Canada, supporting regulatory compliance and safe operation in industrial environments.
Yes. The LB777 is designed for cross-border use with NEC/CEC compliance, a NEMA 12 rating, and UL certifications recognized in both the US and Canada, making it appropriate for facilities that operate under shared North American electrical standards.
The LB777’s Form 7 LB shape and 2-1/2 inch trade size optimize wire channels and bend radii, reducing snagging and easing pulling. The Feraloy iron alloy construction adds rugged protection against impact and debris, improving long-term reliability in busy industrial environments.
Eaton provides installation instructions such as IF 863 for wire pulling and Form 7 specification guides. Additional resources include catalog pages and datasheets, enabling faster commissioning and helping field technicians verify compatibility before final mounting.
