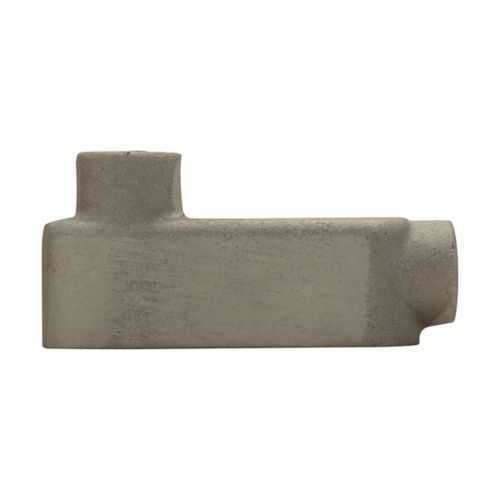

Eaton LB789 Condulet Mark 9 Conduit Outlet Body - NEMA 12
Part Number: LB789
Quick Summary
LB789 Condulet Mark 9 conduit outlet body enables reliable junctions for rugged industrial conduit runs in equipment rooms and factories. Engineers often struggle with maintaining enclosure integrity and safety due to mismatched fittings and corrosion. This design meets NEC/CEC standards, carries a NEMA 12 rating for dust and splash protection, and is suited to ordinary/non-hazardous locations. For panel builders and maintenance teams, LB789 delivers lower lifecycle costs, compatible with standard Crouse-Hinds fittings, and helps streamline procurement and commissioning.
Product Information
Extended Description
LB789 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LB shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LB789
UPC
782274517407
Product Length/Depth
13.94 in
Product Height
6.13 in
Product Width
5 in
Product Weight
4.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
2-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LB789
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Copper-free aluminum body delivers corrosion resistance without sacrificing strength, extending service life in challenging environments. Business impact: lower replacement costs and reduced maintenance downtime translate to measurable lifetime savings. Application: suited for control panels and run-side conduit in factories and outdoor installations. Feature: LB shape and 2-1/2 inch trade size optimize wire pulling and routing in tight panels. Business impact: faster installations cut labor time and minimize wiring faults. Application: ideal for confined control cabinets and conduit runs in mid-size machinery. Feature: NEMA 12 protection guards against dust and light splashes in ordinary locations. Business impact: reduces cleaning cycles and protects sensitive components. Application: suitable for plant floors, electrical rooms, and network cabinets. Feature: NEC/CEC standards compliance helps with approvals and inspections. Business impact: reduces regulatory risk and speeds commissioning. Application: essential for new builds and retrofit projects. Feature: Documentation and compatibility with Condulet Mark 9 catalog family streamlines procurement and installation. Business impact: lowers wiring errors and contributes to standardized maintenance practices. Application: valuable for maintenance teams standardizing enclosure fittings across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds LB789
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB789?
Enquire Now
FAQs
LB789 uses an LB-shaped conduit outlet body designed for a 2-1/2 inch trade size. Follow the IF 863 installation guidance, align mounting holes with the panel backbox, and attach using standard Condulet fittings. Ensure proper cable routing, sealant or gaskets where applicable, and verify wire pull paths to minimize bending and abrasion. The unit weighs 4.9 lb and measures 13.94 in by 6.13 in by 5 in, which helps planning and mounting accuracy in confined spaces.
Key specs include copper-free aluminum construction, LB shape, 2-1/2 inch trade size, 13.94 in length, 6.13 in height, 5 in width, and 4.9 lb weight. It carries a NEMA 12 rating and NEC/CEC compliance, designed for ordinary/non-hazardous locations. These specs ensure reliable performance in typical plant environments and compatibility with Condulet Mark 9 components.
Yes. LB789 is rated NEMA 12, which provides protection against dust and light splashes, and is intended for ordinary/non-hazardous locations. This makes it well-suited for control panels, electrical rooms, and equipment enclosures in dusty manufacturing settings where reliable wiring access and enclosure integrity are required.
LB789 adheres to NEC/CEC standards and carries a NEMA 12 rating for enclosure protection. It is designed for ordinary/non-hazardous locations. Certification documentation is available through Eaton Crouse-Hinds and related UL/canada references, ensuring regulatory alignment during audits and inspections.
The copper-free aluminum construction provides corrosion resistance and lighter weight, reducing maintenance and handling costs. The LB shape and 2-1/2 inch trade size enable faster wiring, while NEC/CEC compliance simplifies approvals. Documentation such as IF 863 instructions supports quicker installations, minimizing downtime and contributing to a favorable total cost of ownership.
