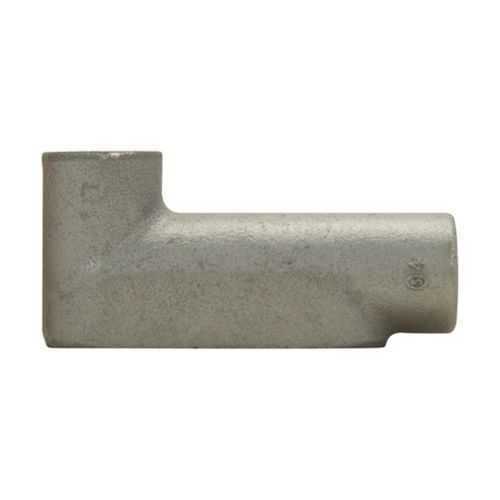

Eaton Crouse-Hinds LB87 Conduit Outlet Body - NEMA 12
Part Number: LB87
Quick Summary
LB87 Conduit Outlet Body is a Form 7 solution that provides rugged, metallic enclosure for Form 7 conduit runs in industrial environments. This design helps address common field challenges such as moisture ingress, wire pull friction, and misalignment that slow projects. It carries a NEMA 12 rating for reliable indoor service, NEC/CEC compliance, and suitability for Ordinary/Non-Hazardous Locations. Designed for form-factor compatibility with Form 7 conduits, it supports efficient wire management and scalable installations, reducing field labor and lifecycle costs while delivering consistent electrical performance in demanding applications.
Product Information
Extended Description
LB87 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LB shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LB87
UPC
782274516103
Product Length/Depth
10.5 in
Product Height
5.88 in
Product Width
4.25 in
Product Weight
11.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LB
Trade size
3"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction. Business Impact: Delivers high mechanical strength and durability in harsh environments, reducing the risk of enclosure damage and downtime. Application: Ideal for heavy-duty industrial wiring projects where impact and wear resistance are critical. Feature: LB shape with 3" trade size. Business Impact: Enables easier wiring in tight spaces and streamlined connector assembly, improving installation speed. Application: Suitable for compact plant layouts and machine enclosures where space is at a premium. Feature: NEMA Rating 12. Business Impact: Provides dependable indoor dust and splash protection, supporting long service life in non-hazardous locations. Application: Cross-industry use in manufacturing floors and assembly lines requiring reliable protection. Feature: NEC/CEC compliance. Business Impact: Helps ensure regulatory alignment, reducing project risk and change orders. Application: Supports code-compliant installations across North American facilities. Feature: Form 7 compatibility with installation references. Business Impact: Access to installation guidance (IF 863, catalogs, and datasheets) accelerates onboarding and reduces mis-wiring. Application: Fast-track deployments in ongoing projects with standardized documentation. Insight: The LB87 is documented with multiple reference materials including Form 7 catalogs, UL certifications, and installation sheets, enabling engineers to verify compatibility and optimize workflows across teams.
Get a Quick Quote for a Eaton Crouse-Hinds LB87
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LB87?
Enquire Now
FAQs
LB87 is designed for Form 7 conduit runs and uses a 3" trade size, with a Form 7-compatible LB shape. When installing, consult IF 863 for wire pulling guidance and reference the Form 7 catalog pages and datasheets to ensure proper mounting, cable routing, and sealing against dust in ordinary indoor locations.
LB87 carries NEC/CEC compliance and a NEMA 12 rating, signaling suitability for indoor, non-hazardous environments with dust exposure. This alignment helps ensure code-conformant installations and predictable enclosure performance across North American facilities.
Yes. The unit is classified for Ordinary/Non-Hazardous Locations per its certifications and NEMA 12 rating, making it appropriate for standard industrial facilities, machine rooms, and general manufacturing environments where durable, code-compliant conduit bodies are needed.
IF 863 is an installation instruction sheet referenced with LB87 resources, guiding conduit body wire pulling and installation best practices. Following these guidelines helps minimize pull tension, reduces cable damage risk, and accelerates field setup in Form 7 configurations.
Choosing LB87 delivers durable Form 7 compatibility with a robust Feraloy iron alloy body, ensuring long service life in indoor environments. The combination of NEC/CEC compliance, NEMA 12 protection, and documented installation guidance reduces risk, speeds deployments, and lowers lifecycle costs for industrial wiring projects.
