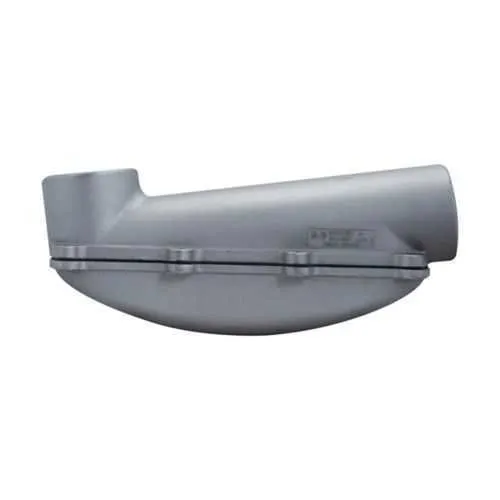

Eaton Crouse-Hinds LBD10900 Mogul Conduit Body - NEC/CEC
Part Number: LBD10900
Quick Summary
LBD10900 is a Mogul conduit body used to terminate and route large-diameter conduits in industrial enclosures. Installing in demanding environments often challenges teams with space constraints, heavy components, and strict code requirements. It meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with Canadian certification references available in official documentation. For procurement and field operations, the combination of a robust feraloy iron alloy body, 4 inch trade size, and a proven Condulet family design translates into reduced part counts, faster installation, and lower lifecycle costs. This makes it a strong fit for panel builders, machine shops, and facilities seeking reliable conduit management without compromising safety or compliance.
Product Information
Extended Description
LBD10900 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet LBD mogul conduit body, Feraloy iron alloy, 4"
Product Name
Eaton Crouse-Hinds series Condulet LBD mogul conduit body
Catalog Number
LBD10900
UPC
782274519005
Product Length/Depth
20.88 in
Product Height
10.88 in
Product Width
7.75 in
Product Weight
33.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Trade size
4"
Material
Feraloy iron alloy
Crouse-Hinds series LBD and LBNEC Moguls catalog page
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Eaton Specification Sheet - LBD10900
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Material strength and durability drive longer service life and better resistance to mechanical wear in demanding industrial settings. Feature → Business Impact → Application: Feraloy iron alloy body delivers rugged performance, reducing repainting and maintenance costs in harsh environments, while supporting long-term reliability in control panels and outdoor installations. Feature → Business Impact → Application: 4 inch trade size enables direct engagement with standard large-diameter conduits, decreasing the need for intermediate fittings and simplifying routing in compact enclosures. Feature → Business Impact → Application: Overall dimensions (20.88 in length, 10.88 in height, 7.75 in width) provide predictable clearance for internal wiring and easier field wiring access in crowded panels. Feature → Business Impact → Application: Weight of 33.5 lb informs lift planning and safe handling on site, contributing to safer installation practices. Feature → Business Impact → Application: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating assures inspectors and facility managers of code-aligned installation in typical industrial spaces. Feature → Business Impact → Application: Compatibility with the Crouse-Hinds LBD/LBNEC mogul family supports scalable installations and standardized maintenance across multiple projects. Documentation like the Industrial Fittings Wire Fill Chart aids engineers in planning conductor counts, while the Eaton specification sheet clarifies performance expectations for procurement and QA.
Get a Quick Quote for a Eaton Crouse-Hinds LBD10900
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LBD10900?
Enquire Now
FAQs
The LBD10900 is a Mogul conduit body designed to terminate and provide access to large-diameter conduits in industrial enclosures. It supports 4 inch trade-size conduits, enabling smooth routing and convenient inspection of wiring. Its feraloy iron alloy construction enhances durability in harsh environments, while NEC/CEC compliance assures code-conforming installations in non-hazardous locations.
LBD10900 is rated for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, making it suitable for standard manufacturing floors, control panels, and non-hazardous industrial spaces. For hazardous locations, a different conduit body with appropriate explosion-proof or restricted-area ratings would be required to meet applicable safety codes.
The LBD10900 measures 20.88 inches in length, 10.88 inches in height, and 7.75 inches in width, with a weight of 33.5 pounds. These dimensions translate to a substantial yet manageable component in tight panel environments, aiding planning for space and lifting requirements during installation.
The LBD10900 carries NEC/CEC standards compliance and is rated for Ordinary/Non-Hazardous Locations. Canadian certification references are available for mogul conduit bodies, as indicated in official documentation. This combination supports cross-border procurement and assures installers of regulatory alignment in common industrial applications.
When installing LBD10900, size it for 4 in trade-size conduits and ensure alignment with the Crouse-Hinds LBD/LBNEC mogul family for scalable deployments. Review the Eaton specification sheet and wire fill charts to verify conductor counts and fill. Plan for safe handling given the 33.5 lb weight, and reference the NEC/CEC guidance to confirm compliance in non-hazardous locations.
