Eaton LBD1100 Condulet Mogul Conduit Body - NEC/CEC
Part Number: LBD1100
Quick Summary
Eaton LBD1100 Condulet Mogul conduit body provides a rugged pull point for 1/2-inch conduit runs in electrical installations. In tight panels and hard-to-reach routings, installers face snagging and slow pulls; this unit improves access and speeds installation. It is NEC/CEC compliant and UL-listed for ordinary/non-hazardous locations, supporting safe, code-compliant deployments. With a 5-in length and compact footprint, it fits crowded enclosures and streamlined wiring in automation panels, delivering measurable workflow benefits. Pairing reliability with cost efficiency, the LBD1100 reduces maintenance cycles and extends service intervals for critical machinery.
Product Information
Extended Description

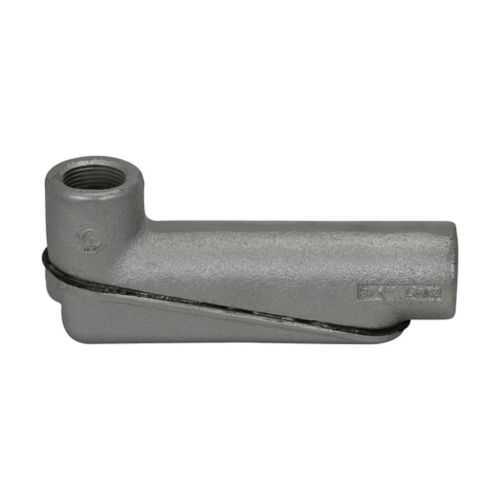

LBD1100 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet LBD mogul conduit body, Feraloy iron alloy, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet LBD mogul conduit body
Catalog Number
LBD1100
UPC
782274518107
Product Length/Depth
5 in
Product Height
2.31 in
Product Width
1.31 in
Product Weight
1.26 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series LBD and LBNEC Moguls catalog page
Mogul Conduit Bodies and Pulling Elbows UL certification
Mogul Conduit Bodies and Pulling Elbows UL certification
Eaton Specification Sheet - LBD1100
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction. Business impact: Delivers superior impact and corrosion resistance in harsh environments, reducing field failures and maintenance costs. Application: Ideal for Mogul conduit bodies exposed to industrial dust, vibration, and moisture in manufacturing floors and outdoor feed lines. Feature: Dimensions and form factor. Business impact: 5 in length, 2.31 in height, and 1.31 in width provide a compact footprint that minimizes space conflict in crowded panels. Application: Enables faster wiring, easier future upgrades, and cleaner conduit routing in control cabinets and equipment rooms. Feature: Standards and compliance. Business impact: NEC/CEC compliance with ordinary/non-hazardous location suitability ensures code-aligned installations and smoother audits. Application: Suitable for general purpose wiring in commercial and light industrial facilities. Feature: 1/2 inch trade size compatibility. Business impact: Standardized pull point for common conduit systems reduces part variety and stocking costs. Application: Works with standard pulling elbows and common conduit fittings in typical automation projects. Feature: Documentation and data support. Business impact: Access to Eaton’s specification sheets and bend radius/cubic capacity charts enables accurate pre-install planning, reducing rework. Application: Used for project scoping in panel builds and machine installations.
Get a Quick Quote for a Eaton Crouse-Hinds LBD1100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LBD1100?
Enquire Now
FAQs
The LBD1100 is a mogul-style Condulet conduit body designed for 1/2-inch trade size conduits, providing a reliable pull point and a clean, accessible path for wiring through conduits in industrial or commercial installations.
Yes. The LBD1100 is NEC/CEC compliant and UL-listed for ordinary/non-hazardous locations, supporting code-compliant deployment in US and Canadian facilities.
Check the product dimensions: 5 inches in length, 2.31 inches in height, and 1.31 inches in width, with a 1/2 inch trade size. Also verify enclosure space and mounting supports align with these specifications.
Eaton provides the LBD1100 specification sheet and technical bulletins, including bend radius and cubic capacity charts, via the product downloads page linked on the LBD1100 entry.
Follow NEC/CEC guidelines for conduit fill, ensure appropriate cubic capacity, and use compatible pulling elbows. Verify UL and code certifications and reference Eaton’s data sheets for proper installation and maintenance intervals to minimize rework.
