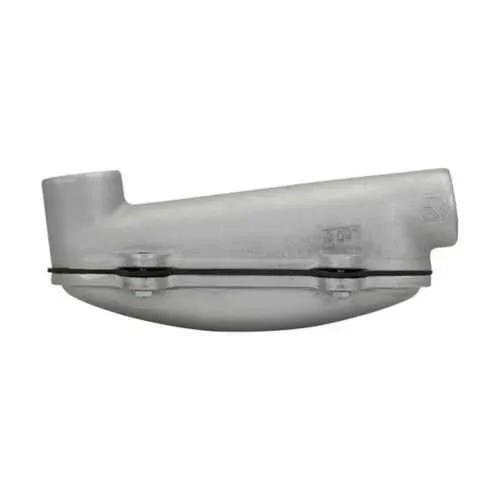

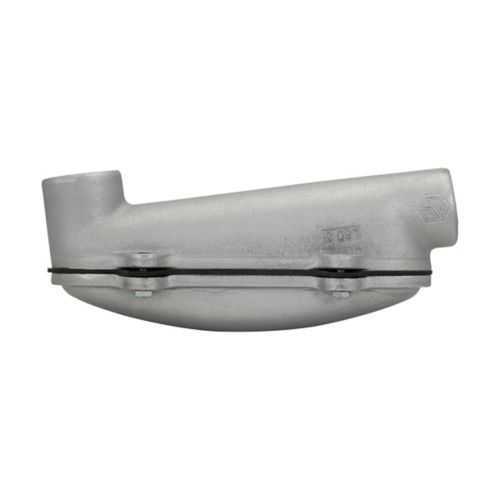

Eaton Crouse-Hinds LBD5500 SA Condulet - NEC/CEC
Part Number: LBD5500
Quick Summary
LBD5500 SA Condulet is a copper-free aluminum mogul conduit body used for routing and access in industrial wiring. Tight spaces and complex pull points slow projects; this conduit body provides straightforward mounting, faster pull-through, and easy conductor access to reduce installation time. It aligns with NEC/CEC standards for Ordinary/Non-Hazardous locations and is UL-certified, helping minimize compliance risk in field deployments. For procurement, the 1-1/2 inch trade size and copper-free aluminum keep costs predictable while ensuring rugged performance in control cabinets and outdoor-rated installations. This variant also offers compatibility with common conduit configurations and pulling elbows, reducing the need for adapters and saving project time.
Product Information
Extended Description
LBD5500 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet LBD mogul conduit body, Feraloy iron alloy, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet LBD mogul conduit body
Catalog Number
LBD5500
UPC
782274518503
Product Length/Depth
12.44 in
Product Height
5.44 in
Product Width
4.63 in
Product Weight
10.58 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series LBD and LBNEC Moguls catalog page
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Eaton Specification Sheet - LBD5500
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Copper-free aluminum construction provides a durable, corrosion-resistant conduit body while staying lighter than traditional alloys. Business Impact: Reduced handling effort on site translates to faster crews and lower injury risk, while inventory remains compatible with aluminum systems. Application: Ideal for ordinary-location installations in control panels, equipment housings, and plant wiring runs where copper-containing fittings are not required. Feature: 1-1/2 inch trade size offers standard mogul conduit routing. Business Impact: Expands compatibility with common conduit sizes, minimizes adapters, and shortens installation cycles. Application: Suitable for new builds and retrofits in electrical cabinets and machine enclosures where space allows consistent pulling points. Feature: Mogul body design provides easy access for pulling conductors. Business Impact: Faster conductor installation reduces labor hours and mitigates damage during pulling. Application: Critical in control panels and equipment with dense wiring and tight access. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations rating. Business Impact: Assures code compliance, simplifying design reviews and field approvals. Application: Best fit for North American facilities following standard electrical codes. Feature: Availability of spec sheets and technical bulletins (bend radius, cubic capacity) and UL certifications. Business Impact: Eases engineering validation and ensures proper fill calculations before procurement. Application: Installers can plan conductor fills using Eaton's charts to avoid overfilling or under-sizing. Feature: Clear dimensional data (12.44 in length, 5.44 in height, 4.63 in width, 4.3 lb) supports accurate space planning. Business Impact: Improved procurement accuracy and reduced on-site adjustments. Application: Project managers can lockdown enclosure dimensions and crew allocation.
Get a Quick Quote for a Eaton Crouse-Hinds LBD5500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LBD5500?
Enquire Now
FAQs
The LBD5500 SA uses a 1-1/2 inch trade size copper-free aluminum mogul body, compatible with standard conduit runs and pulling points in ordinary-location environments. It integrates with common conduit fittings and pulling elbows, reducing the need for adapters and streamlining panel and machine-wiring installations.
Key specs include trade size 1-1/2 in, material copper-free aluminum, dimensions 12.44 in length, 5.44 in height, 4.63 in width, and weight 4.3 lb. The product supports NEC/CEC compliance for ordinary locations and has UL certification options, with data available on Eaton's specification sheet and technical bulletins.
No. The product is rated for Ordinary/Non-Hazardous Locations per NEC/CEC, making it appropriate for standard plant and equipment environments. For hazardous locations, select a Condulet variant specifically certified for those conditions and consult UL/CSA or local electrical codes.
The LBD5500 SA aligns with NEC/CEC standards and is UL-certified for non-hazardous applications. Eaton provides downloadable UL certification information and a dedicated specification page to support compliance planning and field approvals in North American facilities.
The copper-free aluminum construction reduces weight and corrosion risk, while the 1-1/2 in trade size and built-in access points shorten pull times and minimize rework. When combined with Eaton’s bend-radius and cubic-capacity charts, it leads to faster installs, predictable material costs, and safer, code-compliant wiring in control panels and equipment enclosures.
