Eaton Crouse-Hinds LBD9900 Condulet Mogul - NEC/CEC
Part Number: LBD9900
Quick Summary
LBD9900 is a Condulet mogul conduit body that streamlines pulling and routing conductors in industrial electrical installations. This design helps reduce reel time and snag-prone installations by providing a clean access point in tight spaces. It meets NEC/CEC standards and is rated for ordinary/non-hazardous locations, with UL Canadian certification references backing its compliance. The rugged Feraloy iron alloy construction delivers long service life in demanding environments, while the 3-1/2" trade size aligns with common conduit runs. For engineers and procurement teams, the LBD9900 offers predictable installation costs, straightforward compatibility with standard Condulet components, and reduced maintenance overhead over the life of the system.
Product Information
Extended Description

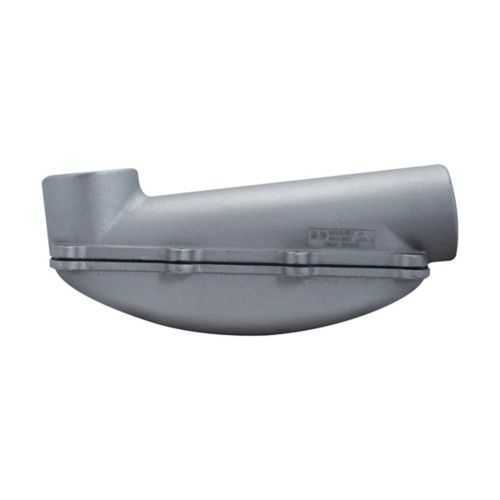

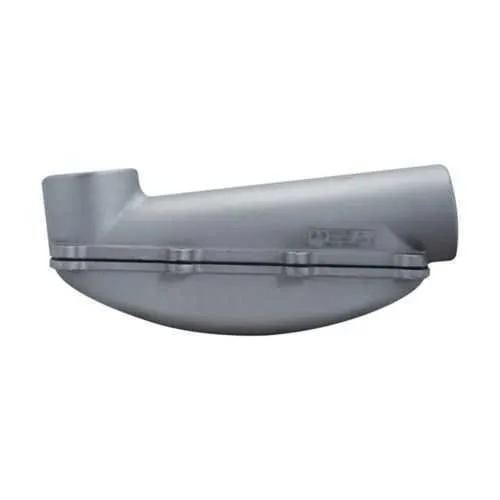

LBD9900 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet LBD mogul conduit body, Feraloy iron alloy, 3-1/2"
Product Name
Eaton Crouse-Hinds series Condulet LBD mogul conduit body
Catalog Number
LBD9900
UPC
782274518909
Product Length/Depth
20.875 in
Product Height
10.875 in
Product Width
7.75 in
Product Weight
46.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Trade size
3-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series LBD and LBNEC Moguls catalog page
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Eaton Specification Sheet - LBD9900
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Material strength and corrosion resistance: The LBD9900 is forged from Feraloy iron alloy, delivering high strength and wear resistance in rough plant environments. Business impact: longer service life and reduced replacement cycles translate to lower maintenance costs and less downtime on critical lines. Application: ideal for rugged factory floors and outdoor installations where physical abuse is common. Dimensional compatibility for pulling efficiency: With a 3-1/2" trade size and Condulet Mogul geometry, it enables easier conductor pulls and cleaner turns. Business impact: faster wiring terminations, improved project throughput, and a reduced risk of pulled conductor damage. Application: suitable for large-diameter conduit runs and tight spaces. Code-compliant reliability: NEC/CEC standards alignment and Ordinary/Non-Hazardous location rating provide immediate compliance and risk mitigation. Business impact: smoother inspections and insurance confidence. Application: cross-border deployments where UL Canada certifications are referenced. Compatibility and installability: Standard Condulet family compatibility ensures quick integration with LB/ LBD accessories and common mounting patterns. Business impact: reduced training time and fewer part shortages during installation. Application: broad compatibility across existing Eaton Crouse-Hinds conduit systems. Field-operational insights: In ongoing plant maintenance, the LBD9900 reduces rework by delivering predictable access points for future pulls. Application: supports lifecycle asset management and simplifies retrofit projects.
Get a Quick Quote for a Eaton Crouse-Hinds LBD9900
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LBD9900?
Enquire Now
FAQs
Yes. LBD9900 is designed to integrate with the Eaton Crouse-Hinds Condulet family, ensuring straightforward mounting, matching covers, and compatible pulling elbows. The 3-1/2" trade size aligns with common conduit runs, reducing the need for special adapters. Field personnel can rely on existing inventory and standard installation practices to minimize downtime.
LBD9900 is built from Feraloy iron alloy for enhanced durability. It measures 20.875 inches in length, 10.875 inches in height, and 7.75 inches in width, with an approximate weight of 46.7 pounds. The 3-1/2" trade size supports large-diameter conduit pulls, making it suitable for demanding industrial wiring layouts.
Yes. LBD9900 is rated for ordinary/non-hazardous locations and conformant with NEC/CEC standards. This certification scope supports typical factory, warehouse, and light-industrial settings. For cross-border projects, UL Canada certification references further bolster compliance credibility during audits and safety reviews.
NEC/CEC compliance is the primary standard, with area classification limited to ordinary/non-hazardous locations. Canadian certification references are accessible via UL-listed documents, providing reassurance for Canadian installations and import/export processes. These certifications help streamline approvals and reduce design-time questions during multi-site rollouts.
The LBD9900 delivers tangible ROI through faster pulls and fewer reworks, thanks to its robust Feraloy construction and reliable Condulet compatibility. Code compliance reduces inspection delays, while predictable dimensions and weight support efficient planning and stocking. Over the life of the system, maintenance costs decrease due to longer service life and fewer replacement parts.
