Eaton Crouse-Hinds LL107 Condulet Form 7 - NEMA 12
Part Number: LL107
Quick Summary
LL107 Condulet Form 7 conduit outlet body provides rugged 4-inch enclosure for electrical conduit routing. Engineers often face space constraints and corrosion risks in harsh facilities, and downtime from component failures is costly. This conduit body offers robust protection and straightforward mounting, helping teams install quickly in tight spaces. It carries NEC/CEC compliance and NEMA 12 protection for ordinary locations, reducing regulatory risk and facilitating inspections. The LL107 integrates with standard Form 7 components to simplify stocking and sourcing, while the 4-inch trade size supports typical feeder and branch circuits. Industry professionals appreciate the durability, accessibility for wiring, and predictable performance across diverse industrial environments.
Product Information
Extended Description

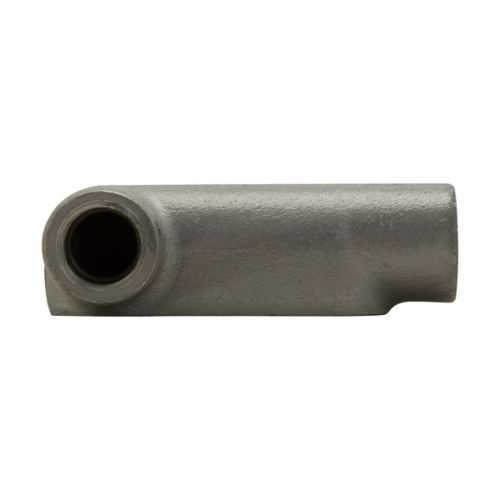

LL107 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LL shape, 4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LL107
UPC
782274525907
Product Length/Depth
12.69 in
Product Height
6.94 in
Product Width
5.38 in
Product Weight
15.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material and durability drive longer service life. The LL107 uses Feraloy iron alloy, delivering improved wear resistance and strength under heavy-use conditions, which translates to reduced maintenance costs and fewer field failures in demanding environments. This translates to tangible business value through lower total cost of ownership and less unplanned downtime in critical electrical systems. Application-wise, the Form 7 conduit outlet body is designed for rugged industrial installations where reliable access is required for wiring, pull points, and secure terminations. 4-inch trade size compatibility ensures seamless integration with common conduit runs and standardized fittings, improving installation speed and reducing field inventory headaches. Shape LL provides a compact footprint that fits into confined panels and enclosures, enabling cleaner layouts and easier future upgrades. In practice, contractors can spec LL107 with confidence for non-hazardous locations while maintaining NEC/CEC conformity and NEMA 12 protection. installation with IF 964 instructions further reduces risk during wire pulling, supporting faster commissioning and safer operations. Documentation availability, including catalogs and datasheets, accelerates engineering reviews and procurement workflows, lowering cycle times and enabling repeatable, scalable deployments.
Get a Quick Quote for a Eaton Crouse-Hinds LL107
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL107?
Enquire Now
FAQs
LL107 is designed for straightforward integration with standard Form 7 fittings. Begin by sizing the 4-inch trade conduit, align the body with the mounting pattern, and secure using compatible screws. For wire pulling; consult IF 964 instruction sheets for best practices, including bend radius and entry access considerations to minimize deformation of conductors and maintain enclosure integrity.
LL107 uses the Form 7 family geometry in an LL shape with a 4-inch trade size, ensuring compatibility with commonly stocked Form 7 covers and gaskets. Its Feraloy iron alloy construction provides durability for harsh environments, while the 12 NEMA rating and NEC/CEC compliance support standard industrial installations.
LL107 carries NEC/CEC standards and a NEMA 12 enclosure rating for ordinary locations, aiding regulatory compliance and market acceptance. Canadian certification references are available in the linked UL certification pages, which helps verify suitability for specific regional requirements and simplifies cross-border procurement.
Key specs include 12.69 in length, 6.94 in height, 5.38 in width, and a weight of 15.7 lb. Material is Feraloy iron alloy, with a 4-inch trade size and LL shape. The UPC is 782274525907, and it is intended for ordinary/non-hazardous locations under NEC/CEC, with NEMA 12 protection.
Official resources include the Form 7 catalog page, industrial grade conduit body spec guide, and IF 964 wire pulling instructions. Also available are datasheets and installation sheets that cover bend radius, cubic capacity, and step-by-step assembly to support accurate engineering reviews and faster procurement.
