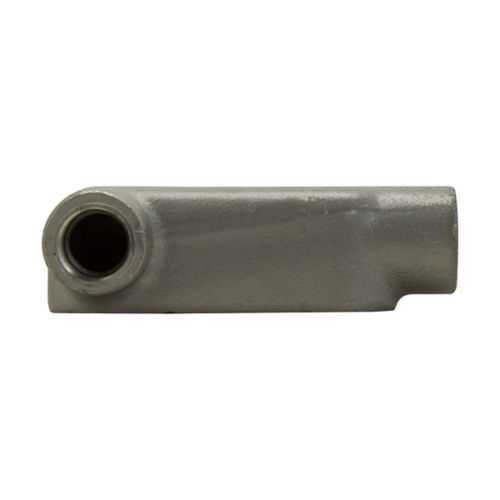

Eaton LL18 Conduit Outlet Body Form 8 - NEMA 12, 1/2 in
Part Number: LL18
Quick Summary
LL18 conduit outlet body delivers a Form 8 enclosure for reliable wiring connections in industrial environments. In the field, tight spaces and rough handling often complicate connections, increasing labor and downtime. NEC/CEC compliance, NEMA 12 rating, and Ordinary/Non-Hazardous location suitability ensure code-ready, durable installations. By combining compact Form 8 compatibility with strong materials, you gain reliability and faster commissioning. This translates to lower maintenance costs, fewer field failures, and improved project timelines for automation and electrical teams. The LL18 data sheet and installation guides provide clear guidance for field technicians, reducing commissioning risk. With support materials—from catalogs to wiring instructions—engineers can verify compatibility quickly, accelerating procurement cycles.
Product Information
Extended Description
LL18 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LL shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LL18
UPC
782274523804
Product Length/Depth
4.94 in
Product Height
1.44 in
Product Width
2.16 in
Product Weight
1.15 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL18
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction offers superior strength and corrosion resistance. Business impact: Extends service life and reduces maintenance costs in rugged environments. Application: 1/2 in Form 8 conduit outlet bodies used in manufacturing plants. Feature: Form 8 LL shape and 1/2" trade size provide a compact footprint that fits tight panels and crowded wiring spaces. Business impact: Faster installation and reduced field labor. Application: Field retrofits and new builds. Feature: NEMA 12 rating delivers dust and moisture protection in ordinary locations. Business impact: Lower risk of enclosure contamination and downtime. Application: Interior industrial enclosures and non-hazardous locations. Feature: NEC/CEC standards compliance ensures cross-border code conformance. Business impact: Streamlined procurement and safer installations. Application: North American projects with standard conduit runs. Feature: Documentation and compatibility resources simplify spec verification. Business impact: Quicker approvals and fewer misfits on site. Application: Projects leveraging Condulet Form 8 ecosystem. Feature: Lightweight, precise dimensions enable easy handling and consistent inventory. Business impact: Reduced shipping costs and consistent field performance. Application: Field service and maintenance crews.
Get a Quick Quote for a Eaton Crouse-Hinds LL18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL18?
Enquire Now
FAQs
LL18 is ideal for industrial facilities needing a compact Form 8 conduit outlet body. It suits ordinary/non-hazardous locations, indoors, where 1/2 inch trade size conduits and Condulet Form 8 fittings are used, delivering reliable field terminations with robust material.
NEMA 12 provides dust and moisture protection suitable for ordinary locations. This reduces ingress-related failures, extends enclosure life, and lowers maintenance cycles in manufacturing and processing plants.
Yes. LL18 is designed for a 1/2 inch trade size and Form 8 conduit outlet body compatibility, enabling seamless integration with the Condulet Form 8 ecosystem and standard conduit accessories.
LL18 aligns with NEC/CEC standards, carries a NEMA 12 enclosure rating, and is intended for Ordinary/Non-Hazardous locations. Optional UL certification reports are available to support compliance documentation.
Using LL18 can reduce field labor and maintenance costs due to its robust Feraloy iron alloy construction, compact Form 8 design, and reliable protection. The result is faster commissioning, longer service life, and fewer field reworks in automation projects.
