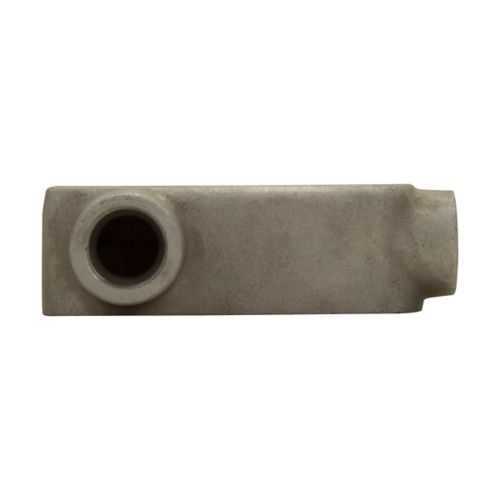

Eaton LL19 Condulet Mark 9 conduit outlet body - NEMA 12
Part Number: LL19
Quick Summary
The Eaton LL19 Condulet Mark 9 conduit outlet body is a copper-free aluminum housing that protects 1/2 in conduit runs in industrial environments. In harsh facilities, downtime and maintenance costs spike when conduit bodies corrode or fail during wire pulling. This product meets NEC/CEC standards and carries a NEMA 12 rating for reliable protection in ordinary, non-hazardous locations. By combining rugged durability with lightweight installation, it supports faster panel wiring and reduced lifecycle costs, while aligning with standard conduit fitting practices and Eaton Crouse-Hinds compatibility.
Product Information
Extended Description
LL19 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LL shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LL19
UPC
782274523903
Product Length/Depth
4.59 in
Product Height
2.13 in
Product Width
1.41 in
Product Weight
0.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL19
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Material and corrosion resistance: Copper-free aluminum provides excellent corrosion resistance and a lighter footprint, reducing overall installation effort while maintaining long-term enclosure integrity. Business impact is lower maintenance costs and increased site safety during wiring in aggressive environments; the LL19 is ideal for 1/2" trade-size runs in industrial panels and control enclosures. Application: suitable for machinery and process equipment where reliability and reduced weight matter. Shape and access: LL-shaped body simplifies wire pulling and routing, improving installation speed and reducing risk of damage to conductors. Application: preferred in Form 8 and Mark 9 configurations for streamlined field assembly. Dimensional efficiency: With a 4.59 in length, 2.13 in height, 1.41 in width, and 0.35 lb weight, the LL19 minimizes space while maintaining robust protection. Application: supports dense panel layouts and retrofit projects. Compliance and certification: NEMA 12, NEC/CEC standards, and Ordinary/Non-Hazardous location classification provide regulatory alignment and performance assurance. Application: ideal for standard industrial environments with predictable exposure levels. Installation resources: Reference IF 863 installation instructions and Eaton datasheets to ensure proper wire pulling, grounding, and mounting. Application: reduces field errors and support calls, improving ROI on panel builds.
Get a Quick Quote for a Eaton Crouse-Hinds LL19
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL19?
Enquire Now
FAQs
LL19 is designed for 1/2 in trade-size conduits and uses copper-free aluminum for reduced weight and corrosion resistance. Plan for proper mounting, compatible with Mark 9 configurations, and consult IF 863 wiring guidance to secure correct wire pulling, grounding, and enclosure sealing during panel build or retrofit projects.
Yes. LL19 carries NEC/CEC standards compliance and a NEMA 12 rating, suitable for Ordinary/Non-Hazardous locations. This certification mix provides reliable protection in standard industrial environments and supports regulatory alignment across US and Canadian facilities.
LL19 measures 4.59 inches in length, 2.13 inches in height, and 1.41 inches in width, with an approximate weight of 0.35 pounds. These compact dimensions enable efficient panel layouts and easy handling during field installation.
Yes. The copper-free aluminum construction provides corrosion resistance and a lightweight profile, ideal for control panels and machinery where durability and ease of installation are critical. The LL shape aids wire routing and access for routine maintenance.
You can access IF 863 wire pulling instructions, the Eaton LL19 specification sheet, and the Crouse-Hinds Mark 9 catalog pages in the downloads section. These resources support proper installation, compliance checks, and reference during procurement and design reviews.
