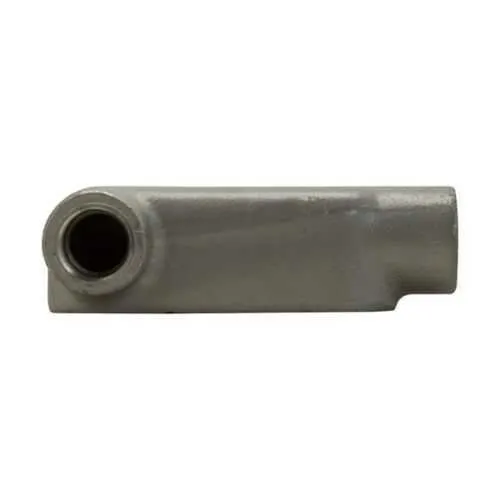

Eaton Crouse-Hinds LL28 Condulet Outlet - NEMA 12
Part Number: LL28
Quick Summary
LL28 conduit outlet body provides rugged, reliable protection for electrical terminations in harsh environments. When space is tight, wiring pull can stall projects and drive up installation time. With a NEMA 12 rating for dust and moisture protection, NEC/CEC compliance, and Ordinary/Non-Hazardous location classification, it keeps installations safe and regulatory-ready. Its compact LL shape and 3/4 inch trade size simplify mounting in confined panels, while the Feraloy iron alloy construction delivers long-term durability and reduced maintenance costs. For engineers and procurement teams, the availability of installation guides and catalog references accelerates project planning. This makes LL28 a dependable choice for industrial control panels, machine housings, and equipment enclosures.
Product Information
Extended Description
LL28 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LL shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LL28
UPC
782274524207
Product Length/Depth
5.56 in
Product Height
2.31 in
Product Width
1.69 in
Product Weight
1.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL28
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction provides high strength and wear resistance. Business Impact: Delivers durable enclosure components that withstand harsh industrial environments, reducing replacement cycles and maintenance downtime. Application: Ideal for heavy-use conduits in manufacturing floors and process plants. Feature: LL shape with a 3/4" trade size enables compact, space-efficient installations. Business Impact: Lowers mounting footprint and simplifies routing in tight panels, cutting installation time. Application: Suitable for control cabinets and machine housings where space is at a premium. Feature: Form 8 conduit outlet body design supports straightforward wire pulling and termination. Business Impact: Improves field wiring efficiency and reduces the risk of damage during installation. Application: Works with Condulet Form 8 and Mark 9 configurations in standard industrial layouts. Feature: NEMA Rating 12 and Ordinary/Non-Hazardous area classification ensure dust/moisture protection in typical plant interiors. Business Impact: Enhances regulatory compliance and safety without over-engineering the enclosure. Application: Appropriate for indoor, non-hazardous environments in US/Canada facilities. Feature: NEC/CEC compliance ensures cross-border regulatory alignment. Business Impact: Simplifies design reviews and procurement across multinational projects. Application: Supports electrical installations across North American facilities. Feature: Lightweight 1.5 lb mass and precise dimensions (5.56 in L × 2.31 in H × 1.69 in W) ease handling and installation. Business Impact: Reduces labor effort and shipping costs, enabling faster project completion. Application: Field retrofits and new builds alike. Feature: Comprehensive documentation and references, including installation instructions (IF 863) and datasheets, accelerate planning. Business Impact: Lowers risk of installation errors and streamlines commissioning. Application: Procurement and on-site training for maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds LL28
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL28?
Enquire Now
FAQs
LL28 is a Form 8 conduit outlet body for a 3/4" trade size, designed to work with the Condulet Form 8 family. It supports straightforward wire pulling per IF 863 and aligns with standard installation practices in industrial panels.
LL28 carries a NEMA Rating of 12, NEC/CEC standards, and Ordinary/Non-Hazardous area classification. It is UL-certified for Condulet Form 8 conduit outlet bodies, with Canada-specific validation available via UL references.
LL28 is certified for Ordinary/Non-Hazardous Locations and does not carry a hazardous-location or outdoor IP rating. For outdoor or hazardous-area needs, select enclosure bodies with appropriate ratings and certifications.
Its compact LL shape, 3/4" trade size, and lightweight 1.5 lb design reduce space and handling effort. Clear specifications and available wiring instructions streamline field wiring and minimize rework.
Access the Crouse-Hinds Form 8 catalog page, LL28 datasheet, and installation sheets (IF 863) from Eaton’s documentation. UL certification pages for Form 8 and Canada-labelled variants are also available.
