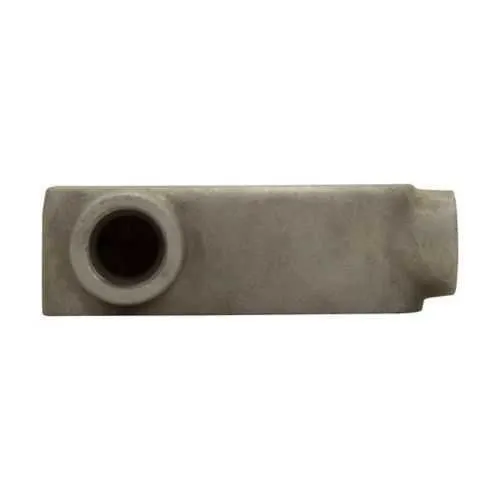

Eaton Crouse-Hinds LL29 Conduit Outlet Body - NEMA 12
Part Number: LL29
Quick Summary
The Eaton Crouse-Hinds LL29 conduit outlet body provides rugged, copper-free aluminum protection for 3/4" conduits in industrial electrical runs. When upgrading aging fittings, engineers often struggle with corrosion risk, limited wiring space, and noncompliant installations that slow projects. This LL29 delivers a NEMA 12 enclosure and NEC/CEC compliance for ordinary locations, matching form-fit with Condulet Mark 9 systems and simplifying upgrade paths. Copper-free aluminum keeps weight and material costs down, while the 3/4 inch trade size ensures straightforward compatibility with common conduit runs and service panels. Designed for panel wiring in commercial and light-industrial environments, it enables quick field installation and reliable long-term operation.
Product Information
Extended Description
LL29 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LL shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LL29
UPC
782274524306
Product Length/Depth
5.25 in
Product Height
2.31 in
Product Width
1.63 in
Product Weight
0.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
3/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL29
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Copper-free aluminum body reduces weight and resists corrosion, cutting handling effort and long-term maintenance costs. This lightweight construction is ideal for repeated assembly in commercial and light-industrial panels, where maneuverability and durability matter. NEMA 12 enclosure rating and ordinary-location suitability ensure reliable protection for wiring in indoor environments, simplifying compliance with NEC/CEC standards while supporting Condulet Mark 9 installations. LL shape and 3/4" trade size enable straightforward integration with standard conduit runs and Condulet Mark 9 ecosystems, reducing design time and field modification needs. The 5.25 inch length, 2.31 inch height, and 1.63 inch width with a modest 0.45 lb weight offer a compact footprint for dense electrical layouts and panel arrays. Available installation instructions and reference catalogs enhance process efficiency, enabling faster procurement and fewer rework errors. When used in panel wiring for commercial and light-industrial applications, LL29 delivers dependable protection with predictable performance across site locations.
Get a Quick Quote for a Eaton Crouse-Hinds LL29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL29?
Enquire Now
FAQs
LL29 is a 3/4" trade-size Condulet Mark 9 conduit outlet body designed for standard Condulet mounting. It uses the familiar Condulet Mark 9 form-factor, enabling straightforward mounting within compatible enclosures and panels. For precise mounting patterns and required fasteners, refer to the installation sheets and the IF 863 guidance referenced in Eaton’s documentation.
LL29 is manufactured from copper-free aluminum, offering reduced weight and corrosion resistance. It carries a NEMA 12 enclosure rating and is intended for ordinary/Non-Hazardous Locations, in line with NEC/CEC standards for indoor, non-hazardous environments. These characteristics support reliable performance in standard commercial and light-industrial wiring installations.
Yes. LL29 is specified for Ordinary/Non-Hazardous Locations and has a NEMA 12 rating, making it suitable for indoor panel wiring in commercial and light-industrial settings. Its copper-free aluminum construction also contributes to weight savings and ease of handling during installation in non-hazardous environments.
LL29 falls under NEC/CEC standards with a NEMA 12 rating for non-hazardous indoor use. Canadian certifications are referenced in Eaton’s documentation, and UL-listed Canadian materials and forms appear in related certification reports. These credentials support regulatory compliance for installations in North American facilities.
Eaton provides installation instructions (IF 863), a dedicated LL29 specification sheet, a catalog page for Condulet Mark 9, and the Bend Radius/Cubic Capacity charts. These resources enable faster procurement, accurate field sizing, and reduced downtime, contributing to a lower total cost of ownership over the system’s life cycle.
