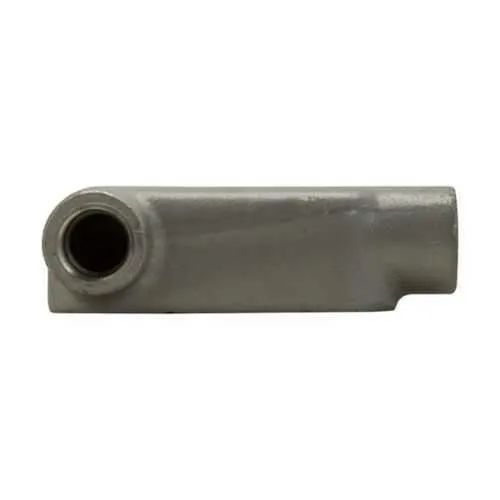

Eaton Crouse-Hinds LL38 Condulet Form 8 - NEMA 12
Part Number: LL38
Quick Summary
LL38 is a Condulet Form 8 conduit outlet body used to terminate and route 1 in conduits in industrial panels. Many installers struggle with tight spaces and slow wiring when updating control panels. With a NEMA 12 rating for indoor protection, NEC/CEC compliance, and UL certification, LL38 supports code compliant, durable installations. Built from Feraloy iron alloy, it delivers rugged reliability in industrial environments, aligning with common requirements for industrial conduit bodies and 1 in trade size wiring. This combination reduces maintenance costs and speeds installation, delivering tangible business value for panel builders and maintenance teams.
Product Information
Extended Description
LL38 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LL shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LL38
UPC
782274525723
Product Length/Depth
6.47 in
Product Height
2.63 in
Product Width
1.94 in
Product Weight
2.04 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
1"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL38
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Material and durability -> Feraloy iron alloy provides high strength and resistance to wear in harsh environments, reducing replacement cycles and service calls for industrial conduit bodies. This translates to lower lifecycle costs and better uptime in manufacturing and processing facilities. Application fit -> The 1 in trade size and LL shaped form streamline conduit routing, supporting faster box-to-box wiring and easier access in crowded panels. Benefit to operations -> Shorter panel assembly times and predictable field performance improve project timelines and regulatory alignment. Certifications and compliance -> NEMA 12 protection plus NEC/CEC compliance and UL certification give installers confidence in indoor non hazardous locations, simplifying procurement and reducing audit findings. Installation efficiency -> Compact 6.47 in length, 2.63 in height, 1.94 in width and a 2.04 lb weight enable easier handling and installation in tight spaces, cutting labor hours. Documentation access -> Availability of specification sheets and installation instructions accelerates training and reduces error prone steps in the field.
Get a Quick Quote for a Eaton Crouse-Hinds LL38
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL38?
Enquire Now
FAQs
LL38 is a Form 8 conduit outlet body designed for 1 in trade size conduits. It supports standard Condulet style installations commonly used in non hazardous industrial panels. For compatibility, verify enclosure cutouts and fastening hardware match 1 in conduits and that mounting provisions align with typical Form 8 configurations in control panels.
LL38 uses Feraloy iron alloy which delivers high mechanical strength and wear resistance suitable for rugged environments. Its NEMA 12 rating protects against dust and oil ingress in ordinary locations, while NEC/CEC compliance ensures dependable electrical performance and system integrity in non hazardous industrial settings.
Yes. The LL38 Condulet Form 8 is a compact 6.47 in by 2.63 in by 1.94 in conduit body weighing 2.04 lb, making it well suited for crowded control panels and machine enclosures. Its 1 in trade size supports common conduit routes, enabling efficient wiring without sacrificing protection.
LL38 is designed to meet NEC/CEC standards and carries a NEMA 12 rating for indoor use. It also has UL certification for Condulet Form 8 conduit outlet bodies, which helps ensure regulatory acceptance and reduces compliance risk in panel builds.
Eaton provides installation instructions, specification sheets, and catalogs for LL38, including IF 964 guidance and the LL38 datasheet. These resources shorten commissioning time, minimize field errors, and lower total cost of ownership through faster maintenance and retrofit planning.
