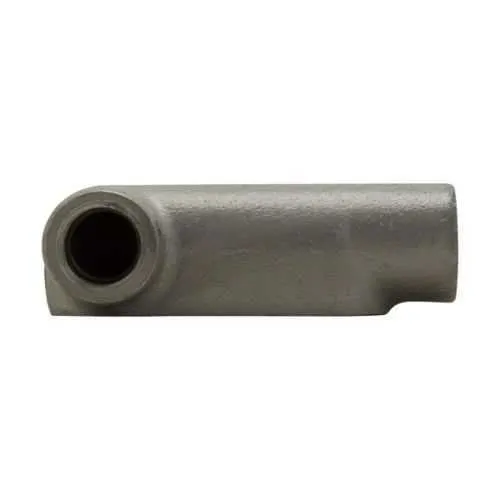

Eaton Crouse-Hinds LL47 Condulet Form 7 - NEMA 12
Part Number: LL47
Quick Summary
LL47 Condulet Form 7 conduit outlet body by Eaton Crouse-Hinds provides rugged, reliable conduit connectivity for industrial panels. Engineers often face space constraints, difficult wire pulls, and compatibility gaps with legacy fittings, which slow projects. The Form 7 LL series supports NEC/CEC compliance and is rated NEMA 12 for ordinary/non-hazardous locations, with UL certifications for US and Canada. This durable Feraloy iron alloy body and 1-1/4 inch trade size align with common industrial conduit systems, enabling quicker installations, fewer field adjustments, and lower maintenance. For procurement teams, catalog compatibility reduces part proliferation and improves interchangeability across Form 7 components, delivering predictable lead times and lifecycle cost savings.
Product Information
Extended Description
LL47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LL shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LL47
UPC
782274524801
Product Length/Depth
6.5 in
Product Height
3.19 in
Product Width
2.31 in
Product Weight
2.45 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Durable Feraloy iron alloy construction provides high strength and corrosion resistance for harsh industrial conditions. Impact: Extends service life and lowers replacement costs in dusty, humid, or mechanically demanding environments. Application: Condulet Form 7 LL bodies are ideal for control panels and equipment enclosures in manufacturing floors where reliability matters. Feature: LL shape and 1-1/4 inch trade size optimize wire pulling and conduit routing. Impact: Reduces installation time and minimizes damage from bending or snagging, accelerating commissioning. Application: Use in machine wiring, motor control centers, and junction boxes that rely on Form 7 geometry for efficient wiring paths. Feature: NEMA 12 rating and Ordinary/Non-Hazardous Location classification. Impact: Delivers reliable ingress protection for dust and light moisture in standard plant spaces, supporting compliance and safety. Application: Suitable for non-hazardous indoor spaces such as control rooms and electrical closets where standard protection is enough. Feature: NEC/CEC standards compliance and UL certifications (US/Canada). Impact: Meets regulatory requirements, simplifies audits, and reduces risk of rework during inspections. Application: Widely used in North American projects, panel builds, and field installations that require certified conduit fittings. Feature: Comprehensive documentation and catalog compatibility (Crouse-Hinds Form 7 catalog pages, IF 863, wire pull charts). Impact: Streamlines procurement and planning, enabling repeatable installations and easier maintenance. Application: Integrates smoothly with other Form 7 components for scalable conduit networks in evolving facilities. Feature: Clear dimensions and weight (6.5 in long, 3.19 in high, 2.31 in wide; 2.45 lb). Impact: Facilitates space budgeting and mounting in restricted enclosures, improving fit and installation accuracy. Application: Helpful for space planning in control panels, switchgear housings, and wall-mounted electrical assemblies.
Get a Quick Quote for a Eaton Crouse-Hinds LL47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL47?
Enquire Now
FAQs
LL47 is designed for a 1-1/4 inch trade size and pairs with Form 7 catalog pages and standard Form 7 fittings. Follow IF 863 guidance for wire pulling to minimize damage and ensure smooth, reusable connections. Use the Form 7 catalog page as the reference for matching elbows, covers, and connectors.
A NEMA 12 rating provides protection against dust and light splashing moisture, suitable for ordinary locations in non-hazardous environments. This reduces contamination risk in standard plant floors and control rooms, while maintaining compliance with NEC/CEC standards for North American installations.
Yes. LL47 is designed for ordinary/non-hazardous locations and carries NEMA 12 protection, making it appropriate for indoor control panels, junction boxes, and equipment housings where robust performance and reliable wiring are required without specialized hazard protection.
LL47 carries NEC/CEC compliance, a NEMA 12 rating, and UL certifications for the US and Canada. These certifications streamline approvals, ensure regulatory compliance, and reduce risk during audits, enabling faster project sign-off and fewer field reworks.
LL47’s durable Feraloy iron alloy body, combined with 1-1/4 inch trade size and Form 7 geometry, reduces maintenance and replacement needs. The component’s catalog compatibility and comprehensive documentation also shorten procurement and installation times, delivering lower total cost of ownership over the equipment’s life.
