Eaton Crouse-Hinds LL49 Conduit Outlet Body - NEMA 12
Part Number: LL49
Quick Summary
LL49 conduit outlet body from Eaton Crouse-Hinds protects 1-1/4 inch conduit terminations in industrial panels. Tight spaces and harsh environments demand rugged, copper-free housings that simplify field wiring and boost reliability. It meets NEC/CEC standards and carries a NEMA 12 rating for ordinary locations, with corrosion-resistant copper-free aluminum construction. The Condulet Mark 9 LL design delivers a compact footprint that accelerates installations and reduces required hardware, while UL listed options support compliance in both U S and Canadian facilities. By combining tough materials, standardized dimensions, and clear installation guidance, this LL49 solution delivers predictable performance and longer service life in industrial controls and equipment enclosures.
Product Information
Extended Description

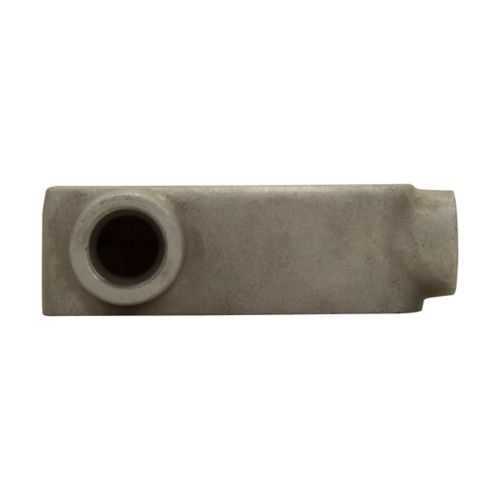

LL49 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LL shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LL49
UPC
782274524900
Product Length/Depth
7.09 in
Product Height
3.25 in
Product Width
2.5 in
Product Weight
1.03 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
1-1/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL49
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Copper-free aluminum construction. Business impact: superior corrosion resistance in factory floors, outdoor equipment, and washdown zones reduces maintenance cycles and replacement costs. Application: ideal for rugged enclosures and process equipment in nonhazardous settings. Feature: LL shape and 1-1/4 inch trade size. Business impact: compact routing in tight control panels and furniture-grade enclosures speeds wiring and minimizes space penalties. Application: panel builds with limited clearance or where multiple conduits converge. Feature: NEMA 12 and NEC/CEC compliance. Business impact: straightforward regulatory alignment and safer installations in ordinary locations, lowering inspection risk. Application: industrial controls, machine cabinets, and HVAC equipment housings. Feature: documented dimensions and weight. Business impact: precise fit planning and reduced shipping costs, enabling accurate BOMs and faster procurement. Application: design validation for enclosure interiors and mounting clearances. Feature: Mark 9 compatibility and accessible installation data. Business impact: faster field setup with standardized hardware and comprehensive guidance, reducing field service time. Application: new builds and retrofits in factories and distribution centers. Feature: available installation resources such as wire pull and data sheets. Business impact: improved commissioning efficiency and fewer rework incidents. Application: maintenance planning and operator training for maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds LL49
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL49?
Enquire Now
FAQs
LL49 supports a 1-1/4 inch trade size conduit and is a Mark 9 LL shaped conduit outlet body. It mounts with standard conduit body hardware and follows the Form 8 Mark 9 catalog guidelines, ensuring compatibility with common installation practices in industrial panels. Always refer to the Crouse-Hinds catalog for exact fastener type and gasket details to ensure a proper seal and reliable wire pull.
LL49 carries a NEMA 12 rating, making it suitable for ordinary locations in non hazardous environments. The enclosure is designed to protect conductors from dust, light splashing, and some degree of moisture exposure, aligning with NEC and CEC requirements for standard control panel and machine applications.
LL49 is specified to meet NEC and CEC standards and is associated with UL certified Condulet Mark 9 components for use in metal conduit systems. These certifications ensure compliant installation in North American facilities and simplify safety inspections, reducing risk during commissioning and ongoing maintenance.
Refer to the IF 964 wire pulling instruction sheets for Condulet Mark 9 components and the industrial fittings wire fill chart. Following these resources helps prevent wire damage, ensures correct conductor fill, and reduces rework during commissioning. The official Eaton catalog page and data sheets provide step-by-step guidance for proper assembly and tightening sequences.
Key dimensions for LL49 are 7.09 inches in length, 3.25 inches in height, and 2.5 inches in width, with a weight of approximately 1.03 pounds. Knowing these values aids in enclosure interior layout, ensuring adequate space for conductors and connectors while meeting mounting clearance and bend radius requirements.
