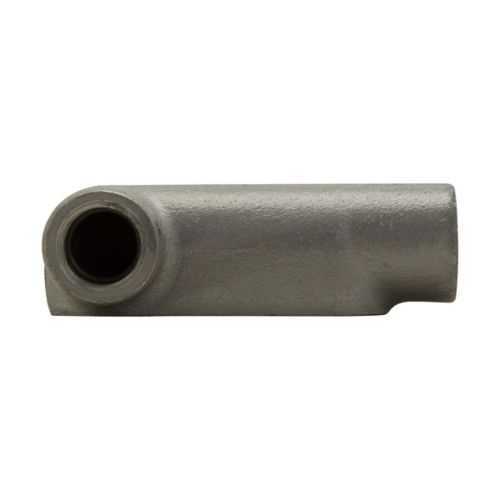

Eaton Crouse-Hinds LL57 Condulet Form 7 - NEMA 12
Part Number: LL57
Quick Summary
LL57 Condulet Form 7 conduit outlet body provides rugged enclosure for wiring in industrial enclosures. Installers face weather exposure, tight spaces, and wire-pulling challenges that slow projects and risk noncompliance. It delivers NEC/CEC compliance and a NEMA 12 rating for ordinary locations, backed by UL certifications for Form 7 bodies. This design uses Feraloy iron alloy and a 1-1/2 in trade size to boost durability, speed installation, and reduce lifecycle costs in harsh environments. Industrial teams benefit from a consistent form factor and documented integration with standard conduit accessories. These attributes translate to fewer field modifications and more predictable project timelines.
Product Information
Extended Description
LL57 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LL shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LL57
UPC
782274525006
Product Length/Depth
7.13 in
Product Height
3.56 in
Product Width
2.56 in
Product Weight
3.33 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: 1-1/2 inch trade size Form 7 LL shape. Benefit: Standard conduit compatibility reduces sourcing time and simplifies field installation, especially in panel boards and machine frames. Application: Control panels and equipment enclosures where space is constrained and reliable wire routing is critical. Feature: Feraloy iron alloy construction. Benefit: Superior strength and wear resistance under vibration and temperature fluctuations, leading to longer service life and lower maintenance costs. Application: Harsh industrial environments, including manufacturing floors and outdoor installations. Feature: NEMA 12 rating for ordinary/Non-Hazardous locations. Benefit: Protected enclosures against dust and light liquid ingress, improving safety and uptime. Application: Electrical rooms, control cabinets, and equipment racks. Feature: NEC/CEC compliance. Benefit: Regulatory alignment across North American facilities and global sites, reducing risk and inspection time. Application: Industries with strict electrical codes and multinational operations. Feature: Form 7 LL wiring configuration facilitates wire pulling. Benefit: Faster installations and fewer tool-driven delays, improving project timelines. Application: New builds and retrofits in tight spaces. Feature: Availability of installation instructions and compatibility with standard fittings. Benefit: Clear guidance minimizes mistakes and supports faster commissioning. Application: Field service and maintenance teams needing consistent practices.
Get a Quick Quote for a Eaton Crouse-Hinds LL57
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL57?
Enquire Now
FAQs
To install LL57, first verify the 1-1/2 in trade size and ensure the enclosure is rated for ordinary locations (NEMA 12). Use the supplied mounting holes and follow the IF 863 wire-pulling guidelines to minimize bending and snagging. Securely connect cables and close the conduit body to maintain enclosure integrity, then test for proper grounding and insulation. This approach reduces rework and improves commissioning speed.
LL57 is the Condulet Form 7 conduit outlet body sized for 1-1/2 inch trade conduits. It uses Feraloy iron alloy for durability and carries a NEMA 12 rating suitable for ordinary locations. Its LL-shaped form supports straightforward routing in control panels, machine frames, and compact enclosures, with dimensions of about 7.13 in length, 3.56 in height, and 2.56 in width.
Yes. LL57 is designed to meet NEC/CEC standards and is rated NEMA 12, offering dust and light liquid ingress protection for ordinary locations. This makes it appropriate for standard industrial environments where robust enclosure protection is required without hazard classifications. Always verify local code adoption and UL certification references when planning global deployments.
UL certification details for Condulet Form 7 components, including LL57, are listed in the provided certification reports. Installation instructions such as IF 863 and other Form 7 data sheets are available from Eaton’s Crouse-Hinds resources. Access the catalog pages and datasheets to ensure proper use, installation steps, and compatibility with 1-1/2 inch conduit systems.
LL57’s Feraloy iron alloy construction and NEMA 12 protection reduce corrosion risk and extend service life in typical manufacturing settings, lowering maintenance cycles. The Form 7 design also speeds installation and minimizes field modifications, delivering faster project completion and lower lifecycle costs due to fewer replacements and reduced downtime.
