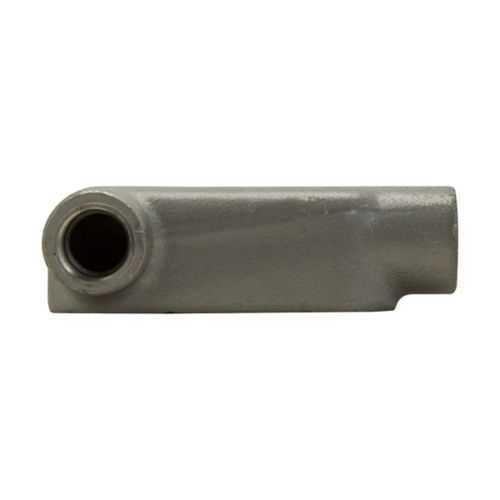

Eaton Crouse-Hinds LL58 Condulet Form 8 - NEMA 12
Part Number: LL58
Quick Summary
LL58 Condulet Form 8 conduit outlet body provides rugged conduit termination for industrial installations. Engineers often grapple with non-compliant fittings and time-consuming wire pulls, which slow projects and raise rework costs; LL58 streamlines installation with a standardized 1-1/2" trade size and durable Feraloy iron alloy. This unit delivers NEMA 12 protection, NEC/CEC compliance for ordinary/non-hazardous locations, and Canadian certification support, helping teams meet global codes while simplifying procurement. Coupled with strong compatibility with Eaton Condulet accessories and long-term reliability, LL58 translates into lower maintenance costs and faster terminations in control panels and equipment enclosures.
Product Information
Extended Description
LL58 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LL shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LL58
UPC
782274525105
Product Length/Depth
9.13 in
Product Height
4 in
Product Width
2.78 in
Product Weight
4.48 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL58
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature → Business Impact → Application: The LL58 uses a 1-1/2 inch trade size, standardizing conduit runs and reducing need for adapters, which lowers inventory complexity and installation time on the shop floor. This translates to faster panel terminations and tighter project schedules in manufacturing lines and process equipment. Application: Ideal for control panels and industrial enclosures where common conduit sizing accelerates wiring and reduces field rework. Feature → Business Impact → Application: Feraloy iron alloy construction provides high strength and improved durability under impact and stress, extending service life in busy plant environments. Application: Suitable for harsh factory floors and assembly lines where protection from physical wear prolongs enclosure efficiency. Feature → Business Impact → Application: NEMA 12 rating offers enclosure protection against dust and non-hazardous moisture ingress, ensuring reliable operation in indoor facilities. Application: Industrial facilities requiring robust yet economical terminations in ordinary locations. Feature → Business Impact → Application: NEC/CEC compliance aligns with North American electrical codes, reducing inspection risk and speeding project approvals. Application: Cross-border projects and multi-site deployments that require consistent standards. Feature → Business Impact → Application: Area classification of Ordinary/Non-Hazardous Locations supports cost-effective use in general-purpose interior installations. Application: Warehouses, assembly plants, and machine rooms. Feature → Business Impact → Application: 9.13 in length, 4 in height, 2.78 in width, and 4.48 lb weight provide clear space planning and straightforward mounting with existing supports. Application: Panel fitments in cabinets where precise dimensions enable clean wiring harnesses. Feature → Business Impact → Application: Compatibility with Form 8 and related Condulet accessories streamlines procurement and installation. Application: Projects leveraging Eaton’s catalog and installation resources for faster commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds LL58
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL58?
Enquire Now
FAQs
Install LL58 using its 1-1/2 inch trade size with the Form 8 outlet body oriented to accommodate the conduit run. Ensure mounting dimensions align with panel knockout positions and that the Condulet is securely fastened to its enclosure. Refer to IF 964 for wire pulling guidance and the LL58 data sheet for precise depth and clearance requirements.
Yes. LL58 is designed to integrate with other Condulet Form 8 components and compatible Mark 9 accessories. For best results, follow Eaton’s catalog pages and installation instructions to ensure proper mating dimensions, seal integrity, and correct conduit alignment during field assembly.
LL58 carries a NEMA 12 rating for indoor use, providing protection against dust and non-hazardous moisture. It also adheres to NEC/CEC standards for general, ordinary-location installations, helping ensure regulatory compliance and reliable operation in non-hazardous facilities.
LL58 supports NEC/CEC compliance, Ordinary/Non-Hazardous Location classification, and Canadian certification as evidenced by listed documentation. This combination helps facilities meet regional electrical codes and cross-border procurement requirements while maintaining safe, code-compliant terminations.
By standardizing on a 1-1/2" Form 8 conduit outlet body with durable Feraloy iron alloy, LL58 reduces field rework, lowers maintenance frequency, and accelerates wiring tasks. Its robust construction and code-compliant design translate to fewer outages and faster project turnover, delivering measurable lifetime cost savings on large-scale panel builds.
