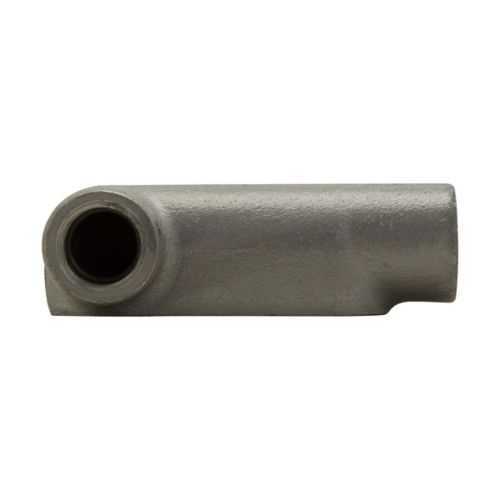

Eaton LL67 Conduit Outlet Body - Form 7, NEMA 12
Part Number: LL67
Quick Summary
Eaton LL67 Conduit Outlet Body is a Form 7 conduit outlet for industrial enclosures and control panels. Engineers often struggle with weatherproofing, wire access, and staying compliant in tight, busy electrical cabinets. It meets NEC/CEC standards and carries a NEMA 12 rating for ordinary locations, with UL certifications for reliability. Built from feraloy iron alloy and designed for Form 7 compatibility, LL67 enables faster wiring, longer service life, and easier maintenance. This combination supports scalable automation projects, reducing downtime and total cost of ownership in control panels and equipment rooms. For installers, it provides predictable dimensions and straightforward mounting in standard 2 inch conduit runs.
Product Information
Extended Description
LL67 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LL shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LL67
UPC
782274525303
Product Length/Depth
8.13 in
Product Height
4.13 in
Product Width
3.13 in
Product Weight
4.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL67
Eaton Specification Sheet - LL67
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: Durable feraloy iron alloy construction provides robust mechanical protection against impact and wear, extending service life in harsh factory environments. This reduces replacement cycles and lowers maintenance costs while improving uptime for critical automation equipment. Application: suitable for Form 7 conduit bodies in rugged manufacturing lines where reliability is essential. Feature → Business Impact → Application: LL67’s LL shape and 2 inch trade size enable efficient wire pulling and cable management, shortening panel wiring times. This translates to faster commissioning and reduced labor costs in control panels and switchgear housings. Application: ideal for electric machinery, conveyors, and robotics enclosures requiring quick access and clean wire routing. Feature → Business Impact → Application: NEMA 12 and NEC/CEC compliance provide consistent protection against dust and moisture while meeting regulatory requirements. This minimizes compliance risk and streamlines audit readiness for facility upgrades. Application: suitable for ordinary/non-hazardous locations in commercial and industrial facilities. Feature → Business Impact → Application: 8.13 in length, 4.13 in height, and 3.13 in width define predictable mounting footprints, enabling accurate space planning and compatibility with existing Form 7 fittings. Application: helps engineers standardize enclosure layouts in new builds or retrofit projects. Feature → Business Impact → Application: UL certification visibility and catalog documentation simplify procurement and vendor audits, accelerating sourcing and reducing total cost of ownership. Application: supports procurement teams in fast-tracking orders for Form 7 conduit bodies. Feature → Business Impact → Application: Feraloy iron alloy construction and industry-standard dimensions reduce spare parts inventory while ensuring long-term maintenance compatibility. Application: common stock for service teams supporting automation and packaging lines. Industry-specific context: these attributes align with automotive, food and beverage, and general manufacturing environments where durable, compliant conduit fittings are essential for uptime.
Get a Quick Quote for a Eaton Crouse-Hinds LL67
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL67?
Enquire Now
FAQs
To install LL67, mount the conduit body to the enclosure using standard Form 7 mounting holes, route 2" conduit through the LL-shaped body, and secure with appropriate covers. Ensure alignment with the panel cutout and proper sealing to maintain NEMA 12 protection. Verify wire pulling guidance from Eaton installation sheets and torque specs on covers to prevent leaks and maintain compliance.
Key specs include 2" trade size, LL shape, 8.13 in length, 4.13 in height, 3.13 in width, and 4.6 lb weight. Material is Feraloy iron alloy, with NEMA 12 rating for ordinary locations. NEC/CEC standards apply, and the catalog number is LL67. These dimensions help with space planning and ensuring compatibility with existing Form 7 components.
Yes. LL67 is rated for Ordinary/Non-Hazardous Locations and carries a NEMA 12 rating, making it appropriate for typical workshop, factory floors, and non-hazardous electrical cabinets. This suitability supports standard industrial applications while ensuring dust and moisture protection within expected environmental conditions.
LL67 aligns with NEC/CEC standards and carries UL certification documentation. It is supported by Eaton’s Form 7 catalog pages and UL certification references, which help with compliance audits, regulatory filings, and verified supplier qualification during procurement.
LL67 provides longer service life through feraloy iron alloy construction and robust NEMA 12 protection, reducing replacement cycles and maintenance needs. Its form factor and Form 7 compatibility enable faster wiring and easier access for service, contributing to lower labor costs and improved equipment uptime in automation and packaging lines.
