Eaton Crouse-Hinds LL69 Condulet Mark 9 - NEMA 12
Part Number: LL69
Quick Summary
LL69 conduit outlet body from Eaton Crouse-Hinds provides rugged copper-free aluminum access for 2 in conduits in industrial enclosures. Many facilities struggle with corrosion resistance, difficult wire pulls, and misfit panels that slow maintenance. This model meets NEMA 12 protection, NEC/CEC compliance, and is certified for ordinary/non-hazardous locations with UL Canada certification. Copper-free aluminum construction, Mark 9 compatibility, and a 2 in trade size give installers a reliable, standards-compliant solution for reliable wiring in harsh environments. Engineers gain predictable pull lengths and compatibility with Eaton’s Condulet systems.
Product Information
Extended Description

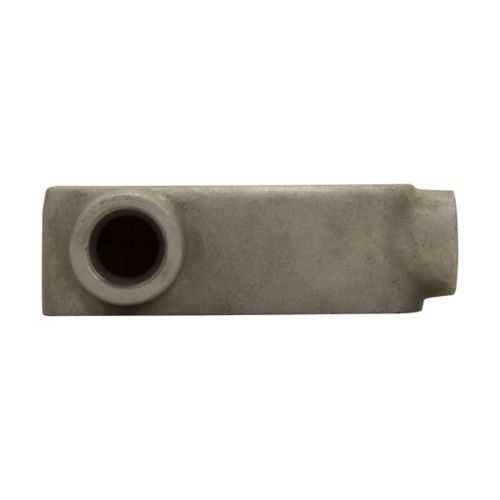

LL69 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LL shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LL69
UPC
782274525501
Product Length/Depth
10.09 in
Product Height
4.2 in
Product Width
3.44 in
Product Weight
2.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL69
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Copper-free aluminum construction reduces weight and resists corrosion, cutting field handling time and long-term maintenance costs. Business Impact: Lower total installed cost and improved reliability in harsh environments. Application: Ideal for 2 in trade size conduits in industrial enclosures, enabling faster wire pulling and cleaner installations. Feature: LL-shaped Mark 9 design supports compact layouts in tight panels. Business Impact: Maximizes enclosure space, reduces panel depth requirements, and speeds retrofit projects. Application: Suitable for retrofit or new builds where field routing is constrained. Feature: NEMA 12 rating with Ordinary/Non-Hazardous Location classification provides robust protection. Business Impact: Improves compliance and reduces risk of ingress in non-hazardous environments. Application: Use in manufacturing floors, warehouses, and process facilities with standard climate exposure. Feature: NEC/CEC standards compliance and UL Canada certification ensure regulatory alignment. Business Impact: Simplifies cross-border procurement and QA auditing. Application: Suitable for multinational plants requiring formal certifications. Feature: Quick-install resources and compatibility with Condulet Form 8/Mark 9 ecosystem streamline maintenance. Business Impact: Cuts service downtime, supports standardized spares, and enhances technician productivity. Application: Refer to IF863 instructions and Eaton data sheets for wiring and bend-radius guidance. Feature: Precise dimensions and weight—10.09 in length, 4.2 in height, 3.44 in width, 2.5 lb weight—facilitating accurate enclosure planning. Business Impact: Enables accurate BOM and space planning. Application: Use in enclosure design calculations and rack layouts.
Get a Quick Quote for a Eaton Crouse-Hinds LL69
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL69?
Enquire Now
FAQs
LL69 is designed for Eaton Crouse-Hinds Condulet Mark 9 systems and form 8/Mark 9 installations. It uses copper-free aluminum, a 2-inch trade size, and an LL-shaped outlet body with a 10.09 inch length. This combination supports quick wiring in panels and enclosures while maintaining NEMA 12 protection for reliable operation in ordinary/non-hazardous locations.
Key specifications include catalog number LL69, UPC 782274525501, product length 10.09 in, height 4.2 in, width 3.44 in, and weight 2.5 lb. Material is copper-free aluminum, shape LL, trade size 2 in, and NEMA rating 12. These details support proper enclosure planning, wire pulling calculations, and cross-checks with NEC/CEC standards.
No. LL69 is certified for Ordinary/Non-Hazardous Locations with a NEMA 12 rating. While it provides robust protection for typical industrial environments, it is not intended for classified hazardous areas. For hazardous-location applications, select conduit bodies specifically rated for those conditions and consult the manufacturer’s guidance.
LL69 carries NEC/CEC compliance and a NEMA 12 rating, along with UL Canada certification references documented in associated UL pages. The UPC is 782274525501, and the product is designed for ordinary non-hazardous applications. These certifications help ensure cross-border compliance and reliable performance in standard facilities.
Electronic catalogs and data sheets are available, including the Crouse-Hinds Form 8 and Mark 9 catalog page and the Eaton LL69 specification sheet. Installation instructions IF 863 cover wire pulling, and bend-radius/wire-fill charts provide guidance on safe, code-compliant installations. Use these resources to streamline installation and reduce field errors.
