Eaton Crouse-Hinds LL777 Form 7 conduit outlet - NEMA 12
Part Number: LL777
Quick Summary
LL777 Condulet Form 7 conduit outlet body provides rugged, reliable conduit entry for 2-1/2-inch trades in industrial control panels. Maintaining safety, compliance, and easy access in tight enclosures often stalls project timelines. This LL777 is rated NEMA 12, designed for ordinary/non-hazardous locations, and aligns with NEC/CEC standards. Its feraloy iron alloy construction resists impact and corrosion, delivering long service intervals. For installers, the Form 7 compatibility and standard dimensions simplify sourcing and field assembly, reducing change orders and downtime. In practice, engineers gain faster wiring, consistent grounding paths, and measurable cost reductions through fewer mockups and reworks.
Product Information
Extended Description

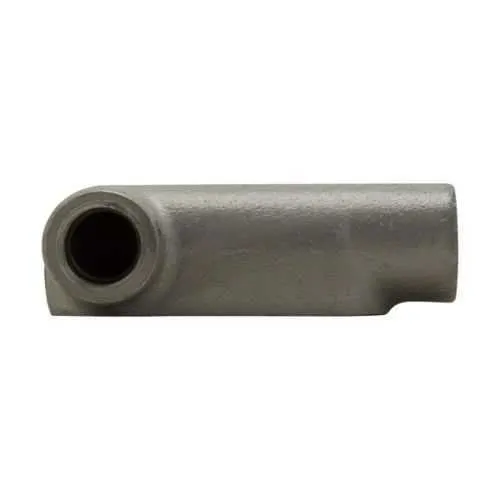

LL777 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LL shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LL777
UPC
782274526409
Product Length/Depth
10.5 in
Product Height
5.75 in
Product Width
3.63 in
Product Weight
8.75 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
2-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL777
Eaton Specification Sheet - LL777
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Form 7 LL shape plus 2-1/2-inch trade size; Business Impact: simplifies wiring entry and routing in compact panels, reducing installation time and potential miswiring; Application: control cabinets and machine enclosures where space is limited and reliable cable routing is required. Feature: Feraloy iron alloy construction; Business Impact: delivers enhanced durability and corrosion resistance in industrial environments, lowering maintenance costs over the life of the installation; Application: washdown-capable or dusty facilities common in manufacturing. Feature: Exact dimensions and weight (10.5 in length, 5.75 in height, 3.63 in width, 8.75 lb); Business Impact: predictable fit and load handling enable better enclosure planning and mounting accuracy; Application: front-access conduit bodies on equipment racks and panels. Feature: NEMA Rating 12 and Ordinary/Non-Hazardous Location suitability; Business Impact: ensures regulatory compliance and safer installations with fewer field changes; Application: electrical rooms and non-hazardous factory floors. Feature: Compatibility with Form 7 covers and standard installation methods; Business Impact: reduces sourcing risk and accelerates project timelines with readily available accessories; Application: retrofits and new builds requiring standard conduit bodies. Feature: Availability of installation instructions and datasheets; Business Impact: supports proper pull routing and compliant wiring practices, decreasing rework; Application: field technicians following IF 863 and related guides.
