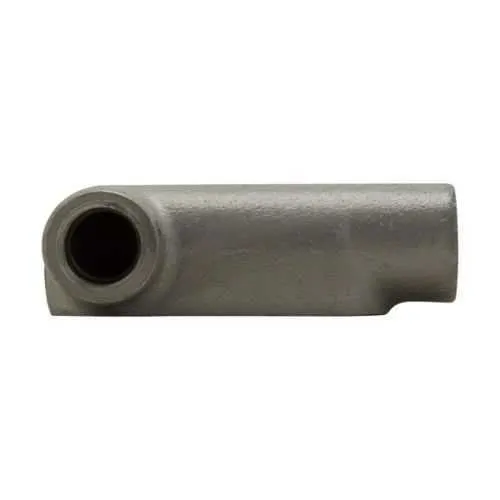

Eaton Crouse-Hinds LL87 Condulet Form 7 conduit outlet body - NEMA 12
Part Number: LL87
Quick Summary
LL87 conduit outlet body from Eaton Crouse-Hinds provides rugged Form 7 enclosure for industrial wiring installations. Designed to simplify field wiring, it reduces install time and minimizes misrouting in crowded equipment spaces. It carries a NEMA 12 rating and NEC/CEC compliance, with UL certifications for US and Canada documented. This durable, ordinary-location rated solution pairs with Form 7 accessories to deliver scalable, code-compliant conduit assemblies that support safe, long-term operation.
Product Information
Extended Description
LL87 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LL shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LL87
UPC
782274525709
Product Length/Depth
10.5 in
Product Height
5.75 in
Product Width
4.38 in
Product Weight
12.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
3"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL87
Eaton Specification Sheet - LL87
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Material and durability: The LL87 is cast in Feraloy iron alloy, delivering superior abrasion and corrosion resistance in harsh environments. This reduces field maintenance costs and extends service life, especially in heavy-duty industrial panels and outdoor enclosures where rugged protection matters. Form factor and pull points: The LL shape and Form 7 design provide convenient access for wire pulling and splice points, speeding installation and lowering the risk of wire damage. It integrates with standard Form 7 fittings in 3 in trade size across panels, cabinets, and machine enclosures for scalable automation layouts. Dimensions and weight: With a length of 10.5 in, height of 5.75 in, width of 4.38 in, and a weight of 12.2 lb, planning and mounting become predictable, reducing space conflicts in compact control panels. Certifications and compliance: NEMA rating 12, NEC/CEC standards, and ordinary/non-hazardous location classification simplify code compliance and inspection readiness; UL listings for US and Canada support cross-border deployment. Installation and compatibility: Supports standard Form 7 components and follows IF 964 guidance for wire pulling; catalogs and datasheets provide quick-reference data to minimize rework and procurement errors, helping to accelerate project timelines.
Get a Quick Quote for a Eaton Crouse-Hinds LL87
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL87?
Enquire Now
FAQs
LL87 is designed for compatibility with standard Condulet Form 7 components in a 3 in trade size. It supports the Form 7 accessory family, enabling straightforward mounting on control panels and cabinets. When planning installations, reference Eaton’s Form 7 catalog pages for compatible covers and coupling options to ensure a secure, code-compliant assembly.
LL87 is made from Feraloy iron alloy and follows Form 7 geometry. It measures 10.5 inches long, 5.75 inches high, and 4.38 inches wide, with a mass of 12.2 pounds. The material and dimensions support robust wire pulling and reliable enclosure integrity in industrial environments.
Yes. LL87 is rated for Ordinary/Non-Hazardous Locations with a NEMA 12 enclosure. It complies with NEC/CEC standards and carries UL listings for both the US and Canada, giving you regulatory alignment and simplified approvals for standard industrial installations.
LL87 carries NEC/CEC compliance, a NEMA 12 rating, and UL certification for the United States and Canada. These certifications verify suitable protection levels, wiring methods, and material conformity, enabling smoother approvals and consistent performance across multinational facilities and procurement chains.
By using Form 7 compatible fittings and a durable Feraloy iron alloy body, LL87 minimizes field adjustments and maintenance needs. Its predictable dimensions and UL/NEC/CEC compliance support faster commissioning, fewer rework incidents, and lower lifecycle costs in control panels, machine housings, and industrial automation assemblies.
