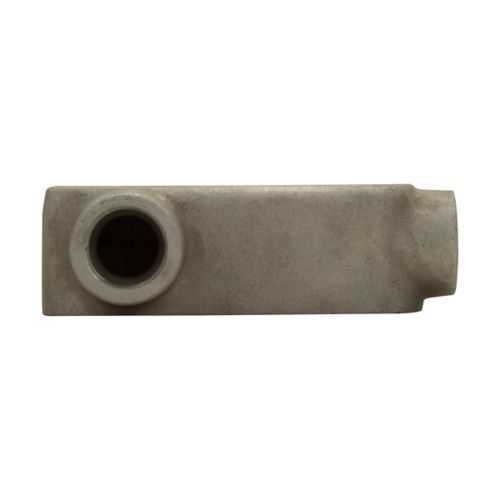

Eaton LL989 Condulet Mark 9 outlet body - NEMA 12
Part Number: LL989
Quick Summary
LL989 Condulet Mark 9 conduit outlet body from Eaton Crouse-Hinds provides rugged, reliable wiring access for industrial conduits. Engineers often face corrosion, difficult wire pulls, and non-compliant enclosures in tight installations; this unit simplifies routing, reduces rework, and speeds up commissioning. It carries NEC/CEC standards, a NEMA 12 rating for ordinary locations, and UL certifications for US and Canada, supporting safe, code-compliant projects. Designed for long-life service, the copper-free aluminum body offers a balance of lightweight handling and durability to lower total cost of ownership. Use with standard Condulet Mark 9 fittings to accelerate assemblies while maintaining compatibility with 3-1/2 inch trade-size conduits.
Product Information
Extended Description
LL989 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LL shape, 3-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LL989
UPC
782274526805
Product Length/Depth
16.88 in
Product Height
8.13 in
Product Width
5.69 in
Product Weight
8.65 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LL
Trade size
3-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LL989
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → Business Impact → Application: Copper-free aluminum construction delivers corrosion resistance and lighter weight, reducing handling risks and installation time while improving lifecycle cost for outdoor or exposed installations in harsh environments. This material choice supports longer service intervals and easier field maintenance in busy plants and industrial facilities. Feature → Business Impact → Application: LL shape and 3-1/2 inch trade size enable easier wire pulls and access through tight panels, increasing installation efficiency and reducing labor hours on control cabinets and equipment housings. Ideal for OEM equipment, conveyors, and machine centers needing reliable conduit routing with standard Mark 9 components. Feature → Business Impact → Application: NEMA 12 rating and NEC/CEC standards provide robust protection in Ordinary/Non-Hazardous Locations, ensuring compliance and reducing inspection-related downtime during audits. Suitable for routine process lines and non-hazardous environments where splash and dust resistance are required. Feature → Business Impact → Application: UL certification for US and Canada adds regulatory confidence, accelerating procurement approvals and supplier qualification in multi-region projects. Useful for multinational facilities with shared electrical infrastructure and standardized maintenance practices. Feature → Business Impact → Application: Large dimensions (16.88 in length, 8.13 in height, 5.69 in width) and a substantial weight (8.65 lb) indicate a sturdy installation footprint, supporting stable mounting on steel racks and panels and minimizing movement under vibration in manufacturing cells.
Get a Quick Quote for a Eaton Crouse-Hinds LL989
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LL989?
Enquire Now
FAQs
LL989 is an LL-shaped conduit outlet body designed for 3-1/2" trade size conduits and Condulet Mark 9 fittings. It aligns with NEC/CEC requirements and is compatible with standard Condulet Mark 9 accessory kits and mounting patterns, simplifying field assembly and replacement in panel enclosures.
LL989 carries a NEMA 12 rating for ordinary locations, is designed to NEC/CEC compliant installations, and is UL-certified for both US and Canada. This combination provides industry-accepted protection against dust and light splashes while supporting regulatory compliance in typical plant environments.
Documentation is available via Eaton’s resources: the LL989 specification sheet, the Condulet Mark 9 catalog page, and installation sheets like IF 863 for conduit body wire pulling. UL certification pages for US/Canada and the official catalog page give full dimensional data and wiring guidance.
LL989 is ideal for control panels, machine enclosures, and process equipment in ordinary-location facilities. Its copper-free aluminum body, large form factor, and NEMA 12 protection support robust wiring access in manufacturing cells, packaging lines, and automation racks where reliability and ease of maintenance matter.
Its large LL-form geometry and accessible pull points speed initial installation, while copper-free aluminum reduces weight and corrosion risk over time. UL and NEC/CEC compliance reduce rework and audits, and compatibility with standard Mark 9 fittings streamlines replacements or upgrades during plant maintenance.
