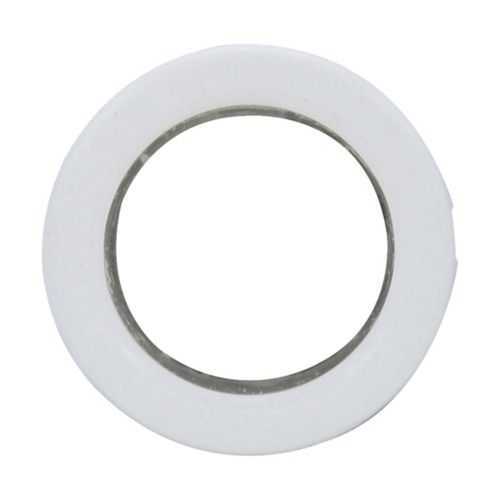

Eaton Crouse-Hinds LNR10 conduit liner - NEC/CEC
Part Number: LNR10
Quick Summary
LNR10 conduit liner is a durable insert that protects cables in 4-inch conduit systems. Engineers face abrasion, misrouting, and downtime, which this liner helps prevent with a snug, compliant fit. UL-listed for the LNR series, NEC/CEC compliant, and classified for Ordinary/Non-Hazardous locations, it supports safe, code-driven installations. Its lightweight polypropylene construction reduces installation effort while promoting long-term reliability, making it a practical choice for industrial wiring and control panel applications. By pairing with Eaton Crouse-Hinds LNR components, it also improves maintenance predictability and project ROI. Engineers value quicker replacements and fewer field errors when deploying this polypropylene liner in 4" conduit runs.
Product Information
Extended Description
LNR10 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LNR conduit liner, Polypropylene, 4"
Product Name
Eaton Crouse-Hinds series LNR conduit liner
Catalog Number
LNR10
UPC
782274705477
Product Length/Depth
3.06 in
Product Height
4.56 in
Product Width
4.56 in
Product Weight
0.18 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Material
Polypropylene
Trade size
4"
Crouse-Hinds series LNR Conduit Liner catalog page
LNR Series Conduit Liner UL certification
LNR Series Conduit Liner UL certification
IF 1273 - LNR Non-metallic Conduit Liner
Eaton Specification Sheet - LNR10
Feature: Lightweight polypropylene construction provides chemical resistance and easy handling. Business Impact: Reduces installation fatigue and helps technicians install with less tool effort, improving on-site efficiency. Application: Ideal for 4 inch conduit runs in harsh factory environments, where lean install time matters. Feature: 4" trade size with precise fit. Business Impact: Minimizes misalignment or snagging, decreasing rework and damage risk. Application: Fits standard 4" conduits in panels and enclosures for quick, predictable installations. Feature: Non-metallic design compatible with LNR series. Business Impact: Improves safety by eliminating metal abrasion paths and reducing corrosion concerns; supports lightweight installations. Application: Suitable for ordinary/Non-Hazardous locations and panel wiring. Feature: NEC/CEC compliance and UL certifications. Business Impact: Ensures code-compliant, auditable installations and simplified regulatory approvals. Application: Required for most North American industrial projects and cross-border deployments. Feature: Installation instructions IF 1273 compatibility. Business Impact: Streamlines field setup with clear guidance, lowering training time. Application: Used by installers to ensure correct orientation and seating. Feature: Documentation and catalog support. Business Impact: Enables faster procurement and easy reference during audits. Application: Fits within Eaton’s LNR conduit protection family to standardize installs across sites.
Get a Quick Quote for a Eaton Crouse-Hinds LNR10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LNR10?
Enquire Now
FAQs
Installers should reference IF 1273 instructions for the LNR Non-metallic Conduit Liner. Start by preparing the conduit and trimming the liner to fit the 4-inch trade size. Align the liner with the conduit run, seat it fully, and verify it sits flush against the conduit wall. This minimizes gaps and ensures compliant protection.
The LNR10 is made from polypropylene, offering lightweight, chemical-resistant performance. It is designed for a 4 inch trade size, with a product length/depth of 3.06 inches and a height and width of 4.56 inches. The unit weighs 0.18 pounds, making it easy to handle during installation and maintenance.
Yes. The LNR10 is designed for ordinary or non-hazardous location use, aligning with NEC/CEC requirements. Its area classification supports safe installations in standard industrial environments and panel wiring without requiring special explosion-proof or hazardous-location accommodations.
The LNR10 is UL-listed for the LNR series conduit liners and is NEC/CEC compliant. It is supported by cross-border UL certifications for the US and Canada, ensuring regulatory compliance and facilitating smooth audits and inspections in diverse project locations.
Using the LNR10 reduces field abrasion and misrouting, enabling faster installation with fewer rework incidents. The lightweight, durable polypropylene material lowers labor costs, while NEC/CEC and UL certifications simplify compliance workflows. In aggregate, this drives faster project timelines and improved maintenance predictability for ongoing operations.
