Eaton Crouse-Hinds LNR3 conduit liner - NEC/CEC
Part Number: LNR3
Quick Summary
LNR3 conduit liner is a polypropylene insert that protects 1-inch conduit runs in ordinary locations. For engineers wrestling with dirt, moisture, abrasion, and retrofit fit issues, this liner simplifies installation, reduces field rework, and supports consistent cable pull paths. Designed for non-hazardous environments, it supports reliable operation where space is constrained and maintenance schedules matter. It aligns with NEC/CEC guidelines, carries UL Canada certification, and is compatible with Eaton Crouse-Hinds LNR accessories, enabling seamless system integration. Using LNR3 can lower lifecycle costs by improving installation efficiency, extending conduit life, and reducing replacement cycles across control panels and switchgear enclosures.
Product Information
Extended Description

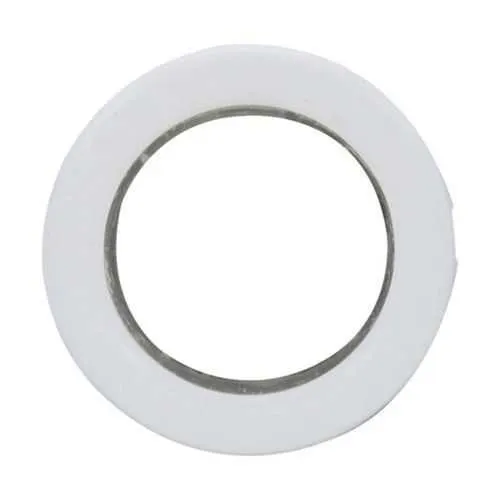

LNR3 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LNR conduit liner, Polypropylene, 1"
Product Name
Eaton Crouse-Hinds series LNR conduit liner
Catalog Number
LNR3
UPC
782274705347
Product Length/Depth
2.06 in
Product Height
1.38 in
Product Width
1.38 in
Product Weight
0.02 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Material
Polypropylene
Trade size
1"
Crouse-Hinds series LNR Conduit Liner catalog page
LNR Series Conduit Liner Canadian certification
LNR Series Conduit Liner Canadian certification
IF 1273 - LNR Non-metallic Conduit Liner
Eaton Specification Sheet - LNR3
Polypropylene construction and a 1-inch trade size deliver lightweight, non-conductive lining that resists moisture and chemical attack. This reduces component wear, simplifies stock management, and speeds conduit installations, especially in control panels, motor starters, and field installations in ordinary areas. NEC/CEC compliance and UL Canada certification reduce compliance risk in routine electrical installations, providing confidence during audits and inspections. The IF 1273 installation sheet and proven fit contribute to faster panel builds and fewer reworks, translating to lower labor costs and tighter project schedules. Its compact weight of 0.02 lb per unit aids handling and reduces overall cabinet load, improving overall assembly flow. The liner also aligns with the LNR ecosystem, enabling seamless accessory compatibility and streamlined procurement for multi-site projects.
Get a Quick Quote for a Eaton Crouse-Hinds LNR3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LNR3?
Enquire Now
FAQs
Yes. LNR3 is designed for 1-inch trade-size conduit and aligns with the broader LNR accessory family. Installation follows the IF 1273 instructions, ensuring a secure, slip-free fit without special tools. The non-metallic polypropylene composition keeps weight manageable, aiding quick retrofits and simplified stock management on automation panels and control enclosures.
LNR3 complies with NEC/CEC standards for general electrical installations and is intended for Ordinary/Non-Hazardous Locations. It carries UL Canada certification for regional safety compliance, supporting regulatory acceptance in North American projects. These certifications help mitigate compliance risk during commissioning and audits.
Ideal for automation, control panels, and switchgear enclosures in non-hazardous indoor settings, LNR3 offers reliable cable routing and protection where dirt, moisture, or retrofit activity is common. Its polypropylene construction resists moisture and chemicals, making it suitable for lightweight conduit liners in manufacturing, process automation, and building management systems.
No special permissions are needed beyond following standard installation guidelines. Refer to IF 1273 - LNR Non-metallic Conduit Liner for the approved installation procedure. This sheet provides step-by-step assembly and safety considerations to ensure proper seating, alignment, and long-term performance in ordinary-location deployments.
By enabling quicker installations, reducing rework, and providing durable, non-conductive lining, LNR3 lowers labor costs and maintenance downtime. Its compatibility with the LNR ecosystem simplifies procurement and spare-part planning across multi-site projects, contributing to predictable budgeting and lower total cost of ownership over the conduit protection system.
