Eaton Crouse-Hinds LNR4 Conduit Liner - NEC/CEC
Part Number: LNR4
Quick Summary
LNR4 conduit liner is a polypropylene non-metallic conduit liner used in ordinary locations for 1-1/4\" conduit runs. Installers often struggle with debris ingress and alignment in rugged environments; this liner minimizes contamination and helps maintain proper bend radii. This product aligns with NEC and CEC standards and is rated for Ordinary/Non-Hazardous Locations, supporting safe, compliant installations. Designed for Eaton Crouse-Hinds systems, its polypropylene construction offers chemical resistance, lightweight handling, and cost-effective maintenance for durable electrical installations. By simplifying line-side assembly and reducing rework, it supports faster project timelines and lowers commissioning costs for panel builders and integrators. As a reliable non-metallic conduit liner, it complements common electrical installs where NEC/CEC compliance and ordinary-location protection matter most.
Product Information
Extended Description

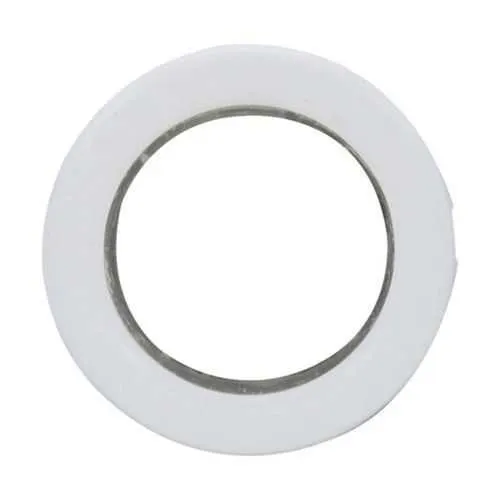

LNR4 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LNR conduit liner, Polypropylene, 1-1/4"
Product Name
Eaton Crouse-Hinds series LNR conduit liner
Catalog Number
LNR4
UPC
782274705354
Product Length/Depth
2.06 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
0.03 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Material
Polypropylene
Trade size
1-1/4"
Crouse-Hinds series LNR Conduit Liner catalog page
LNR Series Conduit Liner UL certification
LNR Series Conduit Liner UL certification
IF 1273 - LNR Non-metallic Conduit Liner
Eaton Specification Sheet - LNR4
Feature: Polypropylene construction offers chemical resistance and moisture tolerance, delivering extended service life for conduit liners. Business Impact: Fewer field replacements and reduced maintenance costs over the life of the installation. Application: Suitable for 1-1/4\" conduit runs in non-hazardous environments, including industrial facilities and commercial buildings, where aggressive chemicals or humidity might degrade inferior materials. Feature: Precise 1-1/4\" trade size with a compact profile (2.06 in L, 1.75 in W, 1.75 in H) and a light 0.03 lb weight. Business Impact: Easier handling, faster fit checks, and accelerated installation schedules. Application: Ideal for quick-in, clean-in installations in retrofit or new-build projects. Feature: NEC/CEC standards compliance and Ordinary/Non-Hazardous Location rating provide regulatory assurance. Business Impact: Reduces compliance risk and audit tasks while streamlining procurement to meet code requirements. Application: Widely applicable across electrical installations in commercial and light-industrial sectors. Feature: Compatibility with Eaton Crouse-Hinds components and installation guidance (IF 1273). Business Impact: Lower training overhead, consistent installations, and predictable performance. Application: Works across service entrances, panel boards, and junctions in non-metallic conduit networks. Feature: Documentation and data readiness including catalog pages and UL listings. Business Impact: Improves maintenance planning and enables quick access to specifications for project teams. Application: Facilitates technical reviews and compliance verification during design and commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds LNR4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LNR4?
Enquire Now
FAQs
The LNR4 is designed for a 1-1/4 inch trade size and non-metallic conduit liner installations in ordinary locations. Before pulling conductors, ensure the bore is clean, insert the liner flush against the conduit wall, and follow IF 1273 (LNR Non-metallic Conduit Liner) installation instructions. Confirm compatibility with Eaton Crouse-Hinds systems and reference the catalog page for depth guidance.
LNR4 complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. UL certification is available via UL listing pages; for the U.S. and Canada, refer to the UL pages shown in the product references. Always verify local code applicability when designing for specific facilities.
Yes. The liner’s light weight and 2.06 in length with a 1.75 in width facilitate fast insertion and alignment, reducing handling time. Its chemical resistance and debris-blocking design lower service interruptions and replacement needs, while compatibility with existing Eaton Crouse-Hinds systems simplifies procurement and stocking, contributing to measurable life-cycle cost reductions.
Trade size is 1-1/4", product length 2.06 in, height 1.75 in, width 1.75 in, and weight 0.03 lb. The material is polypropylene, offering chemical resistance and non-metallic performance suitable for ordinary-location conduits in industrial or commercial environments.
You can access IF 1273 installation instructions here: https://www.eaton.com/content/dam/eaton/products/conduit-cable-and-wire-management/crouse-hinds/instruction-sheets/crouse-hinds-if1273-instruction-sheet.pdf. For catalogs and specifications, use the Crouse-Hinds LNR catalog page: https://www.eaton.com/content/dam/eaton/products/conduit-cable-and-wire-management/crouse-hinds/catalog-pages/crouse-hinds-lnr-conduit-liner-catalog-page.pdf and the Eaton LNR4 datasheet: https://www.eaton.com/us/en-us/skuPage.LNR4.pdf. UL certifications are listed at the provided UL pages.
