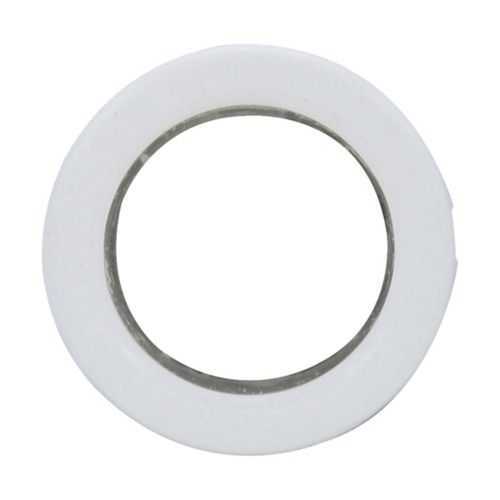

Eaton Crouse-Hinds LNR5 Conduit Liner - NEC/CEC
Part Number: LNR5
Quick Summary
LNR conduit liner protects conduit systems in non-hazardous areas, simplifying installation. Many field technicians struggle with tight spaces, variable conduit fit, and material compatibility during liner inserts; LNR5 helps eliminate guesswork with a precise polypropylene insert designed for 1-1/2" trade size. It is certified for NEC/CEC standards and suitable for ordinary/non-hazardous locations, giving engineers confidence in field deployments. This solution reduces installation time and rework while maintaining robust electrical integrity. By leveraging the LNR5 in your Eaton Crouse-Hinds conduit liner lineup, you gain predictable performance, lightweight handling, and compatibility with standard installation practices, delivering meaningful value in manufacturing floors, data centers, and process facilities. For procurement, the catalog entry LNR5 provides a compact, replaceable insert that aligns with your non-metallic conduit strategies.
Product Information
Extended Description
LNR5 Eaton Crouse-Hinds: Eaton Crouse-Hinds series LNR conduit liner, Polypropylene, 1-1/2"
Product Name
Eaton Crouse-Hinds series LNR conduit liner
Catalog Number
LNR5
UPC
782274705361
Product Length/Depth
2.56 in
Product Height
2 in
Product Width
2 in
Product Weight
0.04 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Material
Polypropylene
Trade size
1-1/2"
Crouse-Hinds series LNR Conduit Liner catalog page
LNR Series Conduit Liner Canadian certification
LNR Series Conduit Liner Canadian certification
IF 1273 - LNR Non-metallic Conduit Liner
Eaton Specification Sheet - LNR5
Feature: Polypropylene construction delivers chemical resistance and lightweight handling; Business Impact: reduces worker fatigue and material costs; Application: suitable for non-metallic conduit liner use in non-hazardous locations, boosting installation speed. Feature: 1-1/2" trade size compatibility; Business Impact: minimizes need for adapters and custom fittings, cutting inventory complexity; Application: frames clean, repeatable panel installations in control rooms and factories. Feature: Compact dimensions (2.56 in length, 2 x 2 in footprint) and low weight (0.04 lb); Business Impact: easier positioning in tight enclosures and quicker trimming or adjustments; Application: ideal for retrofits and space-constrained panels. Feature: NEC/CEC compliance and ordinary/non-hazardous location classification; Business Impact: ensures code-compliant installations with lower compliance risk; Application: supports regulated facilities such as data centers and process facilities. Feature: Documentation support (IF 1273, catalog page, datasheet); Business Impact: accelerates procurement and reduces installation errors; Application: streamlines field operations and technician onboarding.
Get a Quick Quote for a Eaton Crouse-Hinds LNR5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LNR5?
Enquire Now
FAQs
To install the LNR5, inspect the conduit, ensure the liner is the correct 1-1/2" trade size, and trim to fit as needed. Insert the polypropylene liner into the conduit per the IF 1273 instructions, then secure with compatible fittings. This process minimizes gaps and ensures a tight, code-compliant fit in non-hazardous locations.
LNR5 is a polypropylene non-metallic conduit liner for a 1-1/2" trade size. It measures 2.56 inches in length with a 2 inch width and height, weighs 0.04 pounds, and carries UPC 782274705361. Catalog Number is LNR5, and the product is designed for ordinary/non-hazardous locations under NEC/CEC standards.
No. The LNR5 is classified for ordinary/non-hazardous locations. It should not be used in hazardous or potentially explosive environments. For such locations, consult alternative products designed to meet appropriate hazardous-location standards and certifications.
The LNR5 conforms to NEC/CEC standards and is classified for ordinary/non-hazardous locations. This alignment supports code-compliant installations in typical industrial facilities, data centers, and manufacturing environments, helping reduce regulatory risk during audits and inspections.
Selecting LNR5 yields practical ROI through reduced installation time, lighter handling, and predictable fit for 1-1/2" conduit systems. Its documented dimensions and official installation sheet (IF 1273) streamline procurement and training, while its polypropylene construction minimizes material costs and improves field reliability in non-hazardous facilities.
